Blodgett ZEPHAIRE-G Specifications

MODEL ZEPHAIRE-G

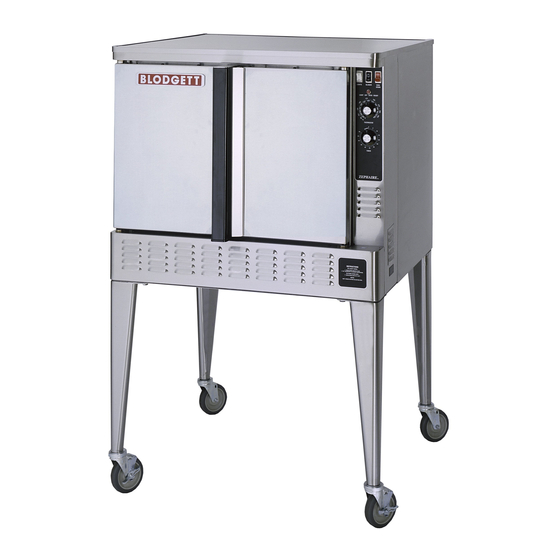

Full-size Gas Convection Oven
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Legs/casters:
6" (152mm) seismic legs
6" (152mm) casters
4" (107mm) low profile casters
25" (635mm) stainless steel open stand with
rack guides
Venting:
Draft diverter
Draft hood
Gas hose with quick disconnect and restraining
device:
48" (1219mm) hose
36" (914mm) hose
Extra oven racks
Gas manifold (for double sections)
Stainless steel solid back panel
Plus package (glass doors, interior lights and a two
speed motor)
Flue connector
Extended warranty
Project
Item No.
Quantity
Refer to operator manual specification chart for listed model name.
Extra depth baking compartment - accepts five 18" x 26" standard full-size
baking pans in left-to-right or front-to-back positions.
All data is shown per oven section, unless otherwise indicated.
Refer to operator manual specification chart for listed model name.
EXTERIOR CONSTRUCTION
INTERIOR CONSTRUCTION
OPERATION

STANDARD FEATURES

*
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Full angle iron frame
Stainless steel front, top, and sides
Solid dependent stainless steel doors
Porcelain door handle with simultaneous door operation
Triple-mounted pressure lock door design with turnbuckle assembly
Removable front control panel
Solid mineral fiber insulation at top, back, sides and bottom
Double-sided porcelainized baking compartment liner (14 gauge)
Aluminized steel combustion chamber
Dual inlet blower wheel
Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8"
(41mm) spacing
Dual Flow Gas system combines direct and indirect heat
Electronic spark ignition control system
Removable dual tube burners
Pressure regulator and manual gas service cut-off valve located in front
control area
Air mixers with adjustable air shutters
Solid state thermostat with temperature control range of 200°F (93°C)
to 500°F (260°C)
Single speed fan motor
1/3 horsepower blower motor with automatic thermal overload protection
Control area cooling fan
Solid state manual controls with separate dials for thermostat and timer
25" (635mm) adjustable stainless steel legs (for single units)
6" (152mm) adjustable stainless steel legs (for double sections)
60 minute electric timer with buzzer
One year parts and labor oven warranty*
Three year limited oven door warranty*
For all international markets, contact your local distributor.
