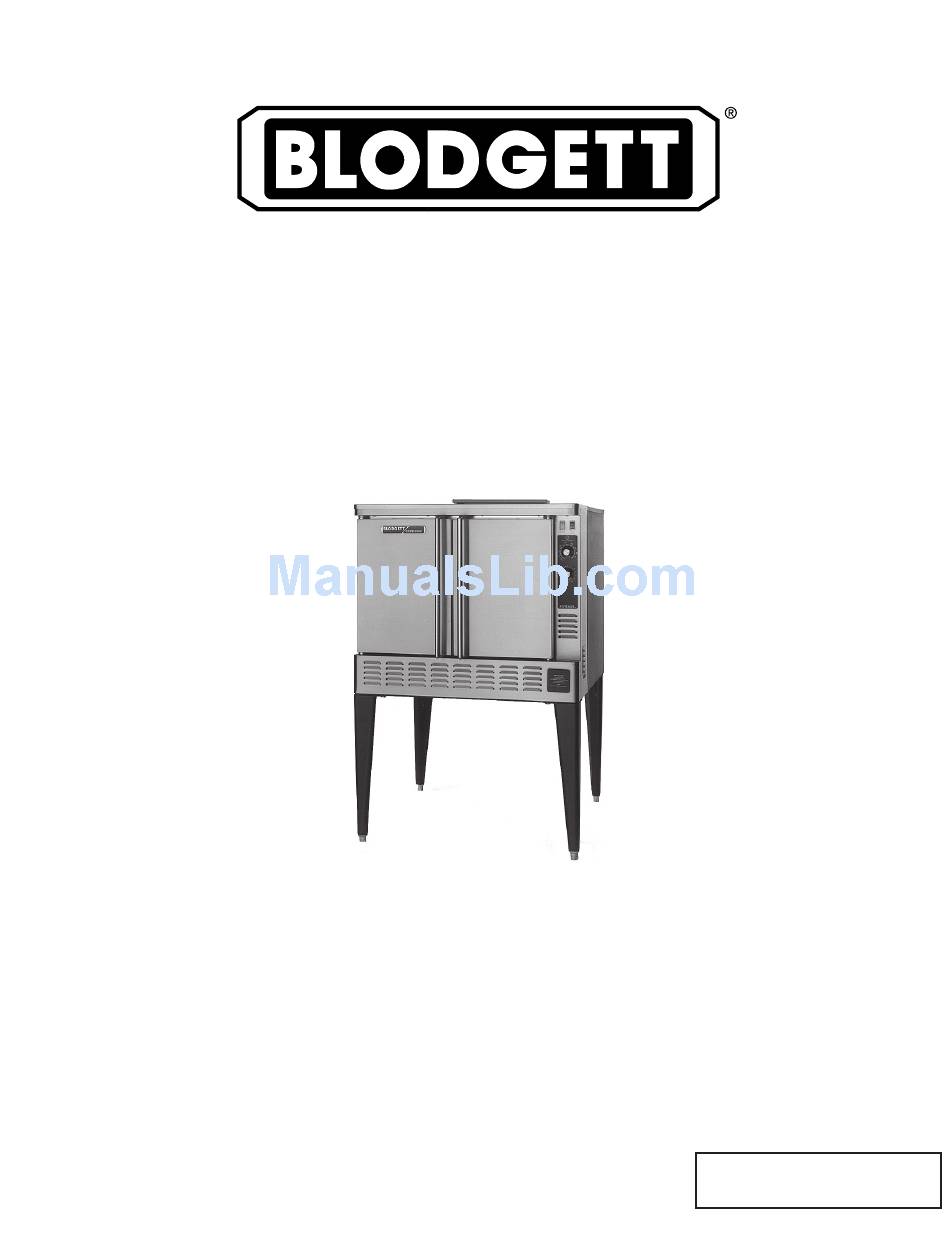

ZEPHAIRE G
MECHANICAL & SOLID STATE CONTROLS
GAS CONVECTION OVENS
REPLACEMENT PARTS LIST
EFFECTIVE JULY 26, 2007
BLODGETT OVEN COMPANY
, 44 Lakeside Avenue, Burlington, Vermont 05401 USA
Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732
www.blodgett.com
Superseding All Previous Parts Lists.
www.blodgett.com
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEPHAIRE-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blodgett ZEPHAIRE-G

Summary of Contents for Blodgett ZEPHAIRE-G

  • Page 1 MECHANICAL & SOLID STATE CONTROLS GAS CONVECTION OVENS REPLACEMENT PARTS LIST EFFECTIVE JULY 26, 2007 BLODGETT OVEN COMPANY , 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732 www.blodgett.com Superseding All Previous Parts Lists.

  • Page 2: Electrical Components

    IMPORTANT: When ordering parts, please provide the model, gas type and serial number of the oven. The identification plate is located on the left side of the combustion compartment and, also, above the control panel under the ledge. ASAP Distributor Required Stocking Parts Doors Are Not Returnable Item Is Too Large For UPS ELECTRICAL COMPONENTS...

  • Page 3: Mechanical Controls

    5147 Timer, 60 Min. Mech 16536 Thermostat, Mech 21069 Thermal Switch 21100 Striker Plate MECHANICAL CONTROLS 18265 Indicator Light 32232 32291 Motor 30218 30219 Dual Solenoid/ Press. Reg. 21098 Roller Catch Assy ZEPHAIRE G 35702 Microswitch 6502 6500 M5132 Rocker Switch 21080 Spark...
  • Page 4 20349 Indicator Buzzer 16686 Knob 20348 Spark Box, Blue 30005 NAT 30006 LP Dual Solenoid/ Pressure Reg. SOLID STATE CONTROLS 18265 20355 Light Transformer 21134 Axial Fan 18584 18585 Pilot Burner Assy, Complete 21098 Roller Catch Assy 21100 Striker Plate ZEPHAIRE G 6502 6500...

  • Page 5: Interior Components

    BURNER & PIPING ASSEMBLY (MECHANICAL CONTROLS) Ref. Part Description 18799 Steel Tube Burner Assy. (Set of 2) 8717 Orifice, Main Burner (Specify Model & Gas Type) (Set of 2) 90063 Air Shutter Only 3001 Locknut, Air Shutter 15871 Manifold Assy. 21070 Tubing, Manifold Assy.
  • Page 6 INDEPENDENT DOOR COMPONENTS (2 DOOR HANDLES, NO LOWER DOOR SUPPORT) Ref. Part Description 21090 Door Assy, Solid LH 21091 Door Assy, Solid RH 21557 Door Assy, Glass LH 21558 Door Assy, Glass RH 35580 Door Conversion Kit, Independent to Dependent, Glass 35579 Door Conversion Kit, Independent to Dependent, Solid...

  • Page 7: Exterior Components

    Caster Kit, Low Profile (Set of 4) 31013 Caster Kit, Heavy Duty Low Profile (Set of 4) 31803 Clips, Dbl Stacking (Set of 2) BLODGETT OVEN COMPANY, 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 860-3700 (800) 331-5842 Fax: (802) 860-3732 Ref. Part 20517...
