Analog Resistive Touch Screen Controller
TSC-55/U-L User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSC-55/U-L and is the answer not in the manual?

Questions and answers

Related Manuals for DMC TSC-55/U-L

Summary of Contents for DMC TSC-55/U-L

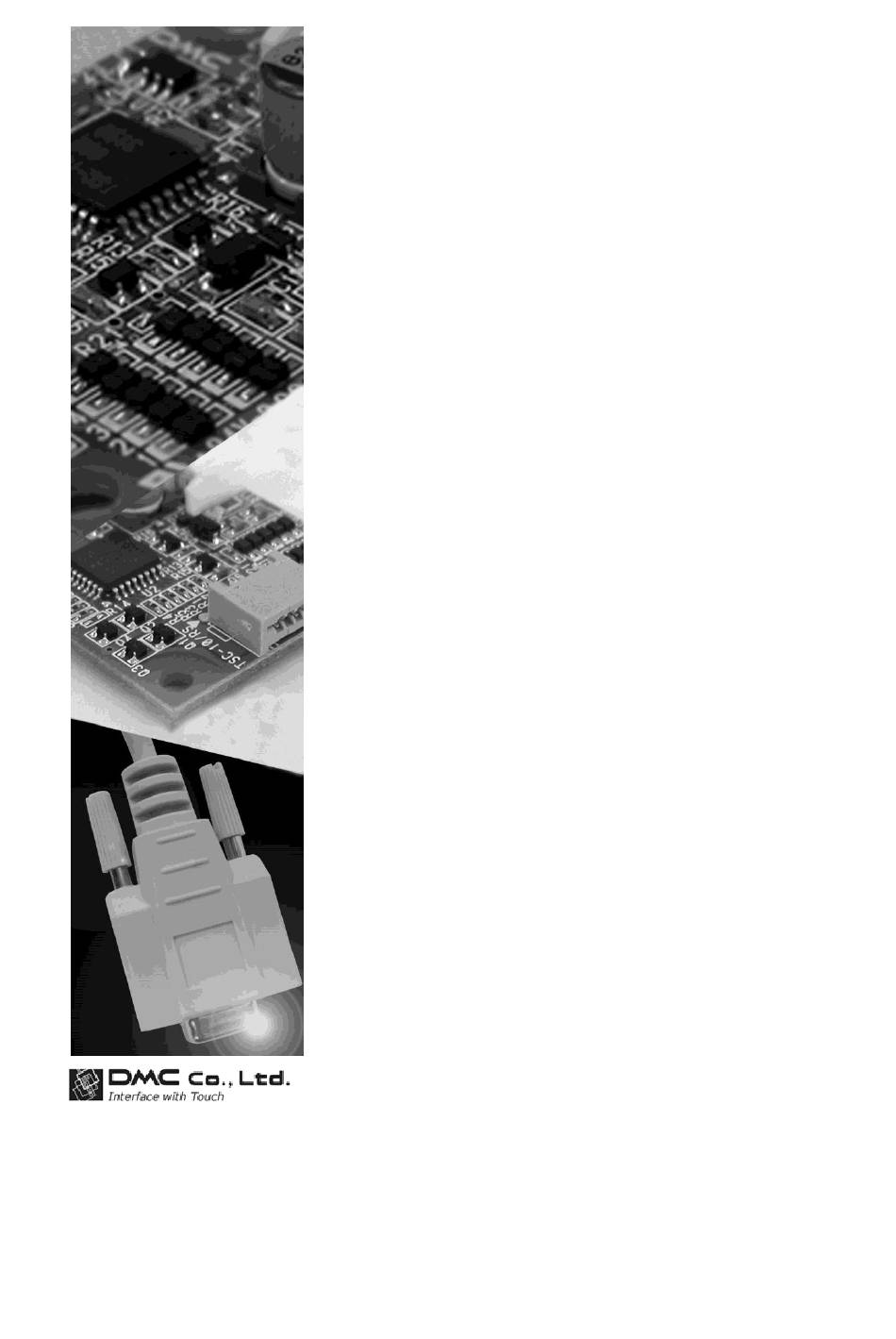

  • Page 1 Analog Resistive Touch Screen Controller TSC-55/U-L User’s Guide...

  • Page 2: Table Of Contents

    6. Warranty ........................... 9 6.1. Warranty Period ..........................9 6.2. Warranty Target ..........................9 6.3. Warranty Exceptions .......................... 9 7. Precautions for Use ......................10 7.1. General Handling ..........................10 7.2. Others............................... 10 Dimensional Drawing Document No. DER-S0187A Rev.2.0 ©2021 DMC Co., Ltd.

  • Page 3: Product Overview

    1.2. Overview TSC-55/U-L is 5 wire touch screen controller board that performs an A/D conversion of an analog signal of a 5 wire resistive touch screen, and transmits the coordinate data to the host in a 10-bit resolution at USB.

  • Page 4: Peripheral Composition Overview

    The detected voltage in supply side is higher than the GND side, which means ‘A_in’=Vcc at the point ‘E’ and ‘A_in’=0(*1) at the point ‘A’. TSC-55/U-L calculates coordinates data starting from A/D conversion of the ‘A_in’ voltage. The Y-coordinates is measured in the same way. By repeating this process alternately, coordinate value at the input point is determined.

  • Page 5: Specifications

    Performance Specifications Description Rating Note (1) point mode (2) 30p/s (3) 50p/s Default: 150pps with DMC original Coordinate Output Rate (point/sec) (4) 80p/s (5) 100p/s driver software. (6) 130p/s (7) 150p/s The value will be lower in the active Coordinate Resolution...

  • Page 6: Connector

    5 wire Touch screen LL Input Vbus USB Vbus USB D- USB D+ USB GND Shield USB FG 3.2. The mounted connector Manufacturer RE-H052SD-1110 J.S.T. Mfg Co., Ltd S5B-PH-K-S J.S.T. Mfg Co., Ltd Document No. DER-S0187A Rev.2.0 ©2021 DMC Co., Ltd.

  • Page 7: Packing Specification

    TSC-55/U-L User’s Guide 4. Packing Specification 4.1. Outline TSC-55/U-L is wrapped up in the air packing of the prevention of static protection type and puts it in a packing box. 4.2. Packing material Outer case: 75 x 55 x 15 mm, clay coated newsback board...

  • Page 8: Product Name Label

    May : E Nov : K Jun : F Dec : L 09: Date manufactured ② S01: Control number for DMC use ③ 00001: Serial number (5 digits) Rev: Revision information (PbFree): lead free Data Matrix: lot number [3I09S0100001] can be read with a barcode reader.

  • Page 9: Changes & Improvements

    4.3. Outer case and lot label: The example of lot number changes to be same as 4.4. Ver2.0 (June 25, 2021) 2. Specifications: Revised the operating temperature and storage temperature of general specifications. 4.4. Product name label: Corrected the QR code to Data Matrix. Document No. DER-S0187A Rev.2.0 ©2021 DMC Co., Ltd.

  • Page 10: Warranty

    § If the product is remodeled, disassembled or repaired by the user. § If the product is glued onto the equipment and uninstalled. § Any malfunctions and damages caused by an improper usage and handling against the specifications and notes. Document No. DER-S0187A Rev.2.0 ©2021 DMC Co., Ltd.

  • Page 11: Precautions For Use

    This document can be freely distributed, but any alternation to this document is prohibited. DMC Co., Ltd. http://www.dmccoltd.com/english/ 11F Takanawa Sengakuji Ekimae Bldg., 2-18-10 Takanawa, Minato-ku, Tokyo 108-0074, Japan Phone: +81-3-6721-6731 (Japanese), 6736 (English) Fax: +81-3-6721-6732 Document No. DER-S0187A Rev.2.0 ©2021 DMC Co., Ltd.
