Analog Resistive Touch Screen Controller
TSC-25/RSA Series User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSC-25/RSA Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMC TSC-25/RSA Series

Summary of Contents for DMC TSC-25/RSA Series

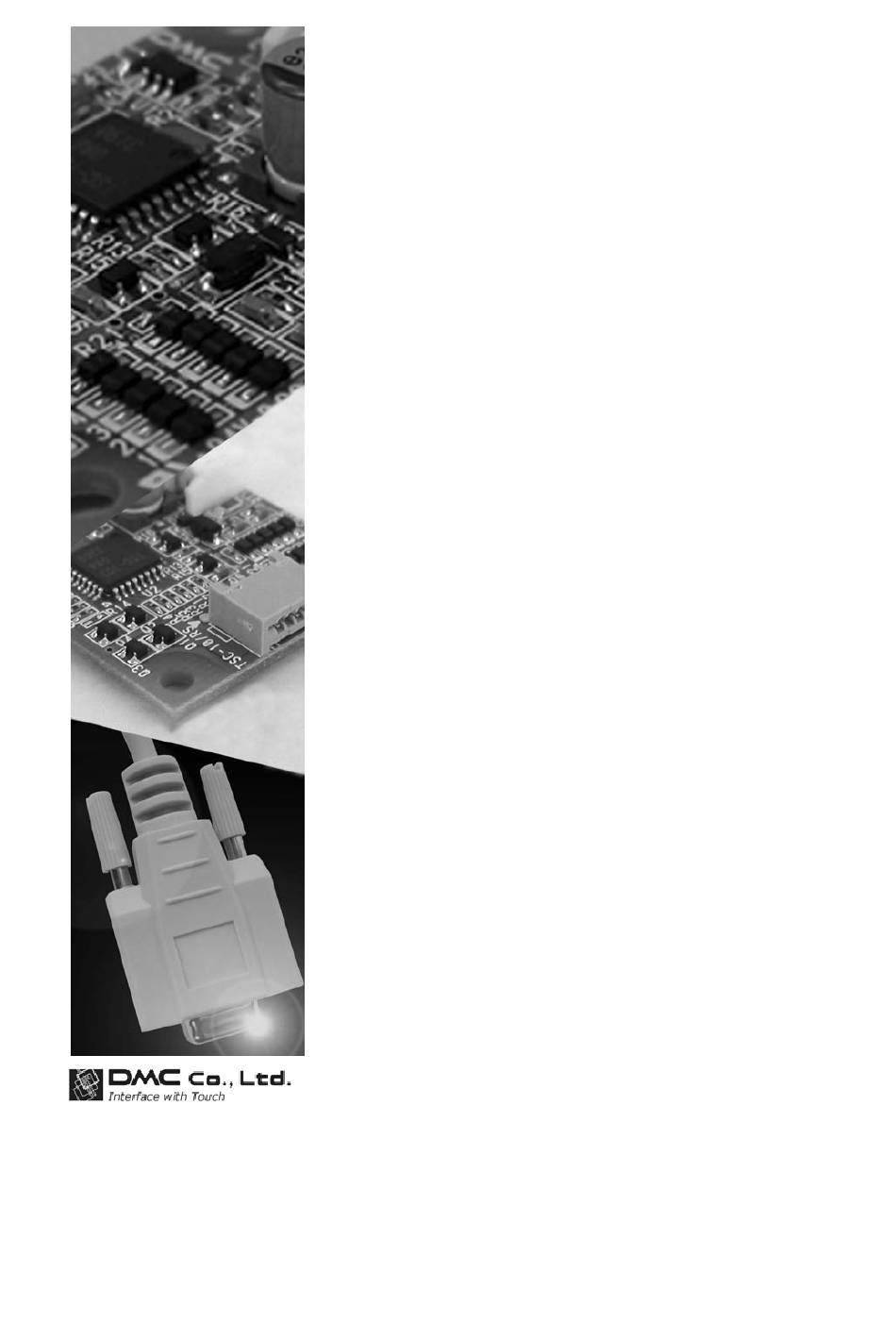

  • Page 1 Analog Resistive Touch Screen Controller TSC-25/RSA Series User’s Guide...

  • Page 2: Table Of Contents

    TSC-25/RSA Series User’s Guide Table of Contents 1. Product Overview ........................2 1-1. Products Applicable ...........................2 1-2. Product Names ..........................2 1-3. Overview ............................2 2. Specifications .......................... 3 3. Connector..........................4 3-1. Explanation of a connector terminal ....................4 3-2. The mounted connector ........................4 4.

  • Page 3: Product Overview

    TSC-25/RSA Series User’s Guide 1. Product Overview 1-1. Products Applicable This specification is applicable to TSC-25/RSA and TSC-25/RSA-E. 1-2. Product Names Product Name Description TSC-25/RSA TSC-20/IC installed touch screen controller board. TSC-25/RSA-E TSC-20/IC installed touch screen controller board with EEPROM.

  • Page 4: Specifications

    TSC-25/RSA Series User’s Guide 2. Specifications General Specifications Item Rating Remarks -20°C to +75°C TSC-25/RSA Operating Temp. (No dew condensation) TSC-25/RSA-E TSC-25/RSA -20°C to +85°C Storing Temp. (No dew condensation) TSC-25/RSA-E TSC-25/RSA Supply Voltage DC 4.1V to 5.5V TSC-25/RSA-E TSC-25/RSA Vin=5.0V, At sampling Rate = 50p/s...

  • Page 5: Connector

    TSC-25/RSA Series User’s Guide 3. Connector 3-1. Explanation of a connector terminal Terminal Name Function XL/UR Touch screen Input XL/UR (Open if CN2 is used) XR/LR Touch screen Input XR/LR (Open if CN2 is used) Sense Coordinates detection (Open if CN2 is used)

  • Page 6: Operation Modes And Functions

    TSC-25/RSA Series User’s Guide 4. Operation modes and functions 4-1. Outline TSC-20/IC enters the Initialization mode immediately after it is turned on or reset. In this mode, no setting is made and each mode shall be set. To transition to the available state, select the coordinate output rate and coordinate output mode and set the operation mode.
  • Page 7 TSC-25/RSA Series User’s Guide § STOP mode This mode is enabled only in the serial communication. This mode starts when in the idle mode, STOP mode start command is received. This mode stops ceramic vibrator’s vibration and enters the power saving mode where the operation stops.

  • Page 8: Initialization Mode And Idle Mode

    TSC-25/RSA Series User’s Guide 4-2. Initialization mode and idle mode After the power up or hardware reset, internal initialization setting is performed (about 500ms) and the transition to the initialization mode occurs, where waiting for the communication with host. In this mode, if external EEPROM is used, EEPROM data is read.
  • Page 9 TSC-25/RSA Series User’s Guide § Response command (no EEPROM is used) Byte State Response command Description of mode width Normal 06h (ACK) 1 byte Touch screen connection normal Abnormal 15h (NAK) 1 byte Touch screen not connected § Response command (EEPROM is used)

  • Page 10: Coordinate Data Mode

    TSC-25/RSA Series User’s Guide 4-3. Coordinate data mode Analog data input from analog touch screen is A/D converted for calculating the coordinate data, which is output in this mode. This mode is used if calibration is made in the host driver. In using the external EEPROM in the calibration data mode, previously performed ”calibration data setup mode“...
  • Page 11 TSC-25/RSA Series User’s Guide § Coordinate format Pen-down data Meaning Byte 0 Pen Down ID Byte 1 X Upper Byte 2 X Lower Byte 3 Y Upper Byte 4 Y Lower Pen-up data Meaning Byte 0 Pen Up ID List of Pen-down ID (pen-down data Byte 0) List of pen-up ID (pen-up data Byte 0) §...
  • Page 12 TSC-25/RSA Series User’s Guide § Example of data (transmission starts at receiving [21h]) PU Data PU Data PD Data PD Data PD Data PD Data PU Data PU Data Input ON Input OFF *: Immediately after Pen-up, if the first sampling is pen-up, immediately preceding pen-down data is output.

  • Page 13: Calibration Data Setup Mode

    TSC-25/RSA Series User’s Guide 4-4. Calibration data setup mode Correction point Touch screen On the touch screen, due to offset and rotation caused by shifted pasting on touch screen and ele- ments such as losses from surrounding circuit, touch Define coordinate...
  • Page 14 TSC-25/RSA Series User’s Guide § Response command (no EEPROM is used) State Response command Mode description width Normal 06h (ACK) 1 byte Setting completed Abnormal 15h (NAK) 1 byte Parameter abnormal § Response command (EEPROM is used) State Response command...
  • Page 15 TSC-25/RSA Series User’s Guide § Setup procedure Define calibration point and number of calibration points and display a cross mark and arrow on indicator to obtain coordinate values at the calibration point in the coordinate data mode. Transmit command [0Dh/0Eh] to TSC-20/IC (transition to ”calibration data setup mode“), and in- put data according to the calibration data setting format.
  • Page 16 TSC-25/RSA Series User’s Guide 2. Number of points: X = 2, Y = 2 and 5 point X=2, Y=2 (Maximum coordinate value: X=03FFh, Y=03FFh) 5 Point (Maximum coordinate value: X=03FFh, Y=03FFh) Correction point (origin: top left) Correction point (origin: top left)

  • Page 17: Calibration Data Read Mode

    TSC-25/RSA Series User’s Guide 4-5. Calibration data read mode In this mode, data set in the calibration data setup mode is read from EEPROM, used to check the pa- rameter setting. This mode is executed from idle mode to transmit the stored calibration data, then the operation automati- cally transitions to idle mode.

  • Page 18: Calibration Data Mode

    TSC-25/RSA Series User’s Guide 4-6. Calibration data mode In this mode, based on calibration value obtained from the calibration data setup mode, coordinate value is corrected and output. In this mode, maximum output coordinate value can be limited. From the idle mode, this mode starts by receiving either command of coordinate data send start 1 – 3, and returns to the idle mode by receiving the calibration data send end command.
  • Page 19 TSC-25/RSA Series User’s Guide § Power-save mode “Coordinate data send start 1” command (0Ah) activates the transition to the coordinate data mode. If for 20 sampling times, no touch screen is input, ceramic vibrator’s vibration stops and the operation ends by entering the power saving mode.
  • Page 20 TSC-25/RSA Series User’s Guide § Data description Pen-down data Meaning Byte 0 Pen Down ID Byte 1 X Upper Byte 2 X Lower Byte 3 Y Upper Byte 4 Y Lower Pen-up data Meaning Byte 0 Pen Up ID List of pen-down ID (pen-down data Byte 0) List of pen-up ID (pen-up data Byte 0) §...

  • Page 21: Stop Mode

    TSC-25/RSA Series User’s Guide § Example of data ([transmission starts by receiving 2Ah]) PU Data PU Data PD Data PD Data PD Data PD Data PU Data PU Data Input ON Input OFF *: Immediately after Pen-up, if the first sampling is pen-up, immediately preceding pen-down data is output.

  • Page 22: Panel Id/Mode Information Acquisition

    TSC-25/RSA Series User’s Guide 4-8. Panel ID/mode information acquisition This function is used to obtain panel ID in the USB mode, current transition mode, and used/unused status information of SW0, SW1 and EEPROM. It is used to know the current operation status.

  • Page 23: Mode List

    TSC-25/RSA Series User’s Guide 4-9. Mode list Power ON Power save mode Touch/command Touch/command 20 samplings 20 samplings [55h] [55h] Coordinate data mode Initialization mode Correction data mode [02h] [05h]+[S_Rate] [0Bh] [01h/21h/31h] [55h] [0Ah/2Ah/3Ah] Idle mode [1Dh] [0Dh/0Eh] [Hardware [0Fh]...

  • Page 24: Changes & Improvements

    TSC-25/RSA Series User’s Guide 5. Changes & Improvements 5-1. Version History § TSC-25/RSA Ver1.0 (July 7, 2005) First Edition. Ver1.1 (August 10, 2005) Clerical mistake is corrected. Ver1.2 (November 2, 2005) Item 6 (Warranty) is added. Ver1.3 (July 20, 2006) Item 4-8.

  • Page 25: Warranty

    TSC-25/RSA Series User’s Guide 6. Warranty 6-1. Warranty Period § The warranty period is limited to 1 year from the date of shipping. The warranty for the initial defection such as appearance defection is limited to 1 month. § Any defected parts under proper use will be examined by the supplier and replaced by the new parts if the defection is considered to be caused by the supplier.

  • Page 26: Precautions For Use

    TSC-25/RSA Series User’s Guide 7. Precautions for Use 7-1. General Handling § Keep the product away from any conductive objects while in use. § Do not touch the conductive part of the product to avoid being damaged by the electrostatic discharge.
