(English version)

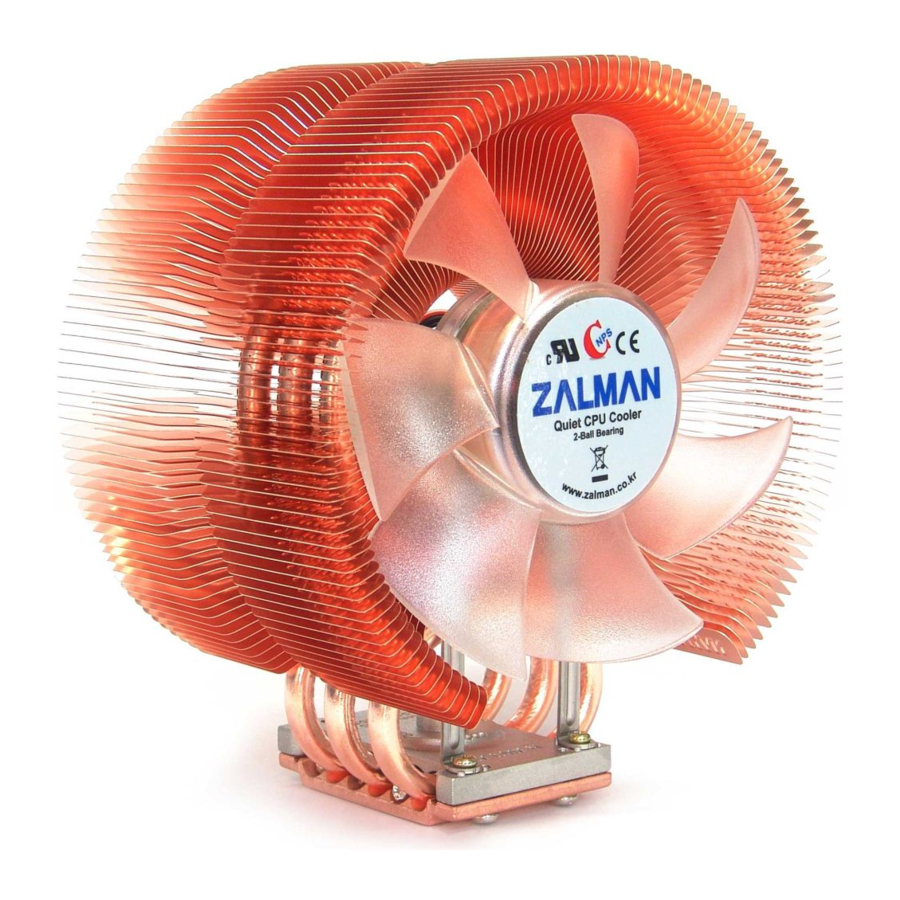

CNPS9700 NT
I I n n t t e e l l S S o o c c k k e e t t 7 7 7 7 5 5 C C P P U U
Core 2 Duo
Dual Core Pentium
Pentium D
Pentium 4
Celeron D
A A M M D D S S o o c c k k e e t t A A M M 2 2 / / 7 7 5 5 4 4 / / 9 9 3 3 9 9 / / 9 9 4 4 0 0 C C P P U U
Athlon 64 FX
Athlon 64 X2 Dual- Core
Athlon 64
Opteron
Sempron
* Please read this manual thoroughly before installation.
http://www.zalman.co.kr
http://www.zalmanusa.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZALMAN CNPS9700 NT
Summary of Contents for ZALMAN CNPS9700 NT
- Page 1 (English version) CNPS9700 NT I I n n t t e e l l S S o o c c k k e e t t 7 7 7 7 5 5 C C P P U U Core 2 Duo...
-
Page 2: Specifications
The maximum weight for a cooler is specified as 450g for Intel Socket 775 and AMD Sockets AM2/754/939/940. Special care should be taken when moving a computer equipped with a cooler that exceeds the specified weight limit. Zalman is not responsible for any damage that occurs when moving a computer. - Page 3 5) Do not ingest or make oral contact with the Thermal Grease. If ingested, get medical attention. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.
-
Page 4: Installation Requirements
8. Installation Requirements If the case is equipped with an Air Guide, then the Air Guide Duct must be removed before installation. Refer to the following diagrams, and install only on systems that meet the following installation requirements : ① No interfering components (PSU, graphic card etc.) within 62mm from the center of the CPU. No interfering components (ODD etc.) within 48mm from the center of the CPU. - Page 5 1) Intel Socket 775 ① ① Clip Installation Refer to “The Clip Installation Method” on page 3 to correctly install the Clip (S-Type, ⑥) according to the orientation of the Retention Guide. ② ② Clip Support Installation Align the Clip Support for Socket 775 (⑨) and the Backplate for Socket 775 (⑩) with the mounting holes on the motherboard, and fasten them together by using the Clip Support Fixing Bolts (⑧).
- Page 6 2) AMD Socket AM2/754/939/940 ① ① Thermal Grease Application Clear off particles or any residue from the contact surface of the CPU and heatsink. Shake the Thermal Grease (ZM-STG1, ②) well then apply on the contact surface of the CPU and heatsink base. ②...
- Page 7 10. Power Connection Connect the CNPS9700 NT’s Fan Connector to the Motherboard as shown in the diagram. Fan Connector (CNPS9700) Motherboard 11. Notes on Usage 1) Checking CPU Compatibility Please refer to “Compatible CPUs” on page 2 to confirm that your CPU is compatible with the CNPS9700 before using it.
- Page 8 12. Zalman Computer Noise Prevention System Zalman's Noiseless Power Supplies, Fanless Northbridge Coolers, Heatpipe HDD Cooler, Noiseless Case Fans, VGA Coolers, and Fan Controllers facilitate stable performance and a noiseless computing environment. Noiseless Power Supply Fanless Northbridge Cooler Heatpipe HDD Cooler...
