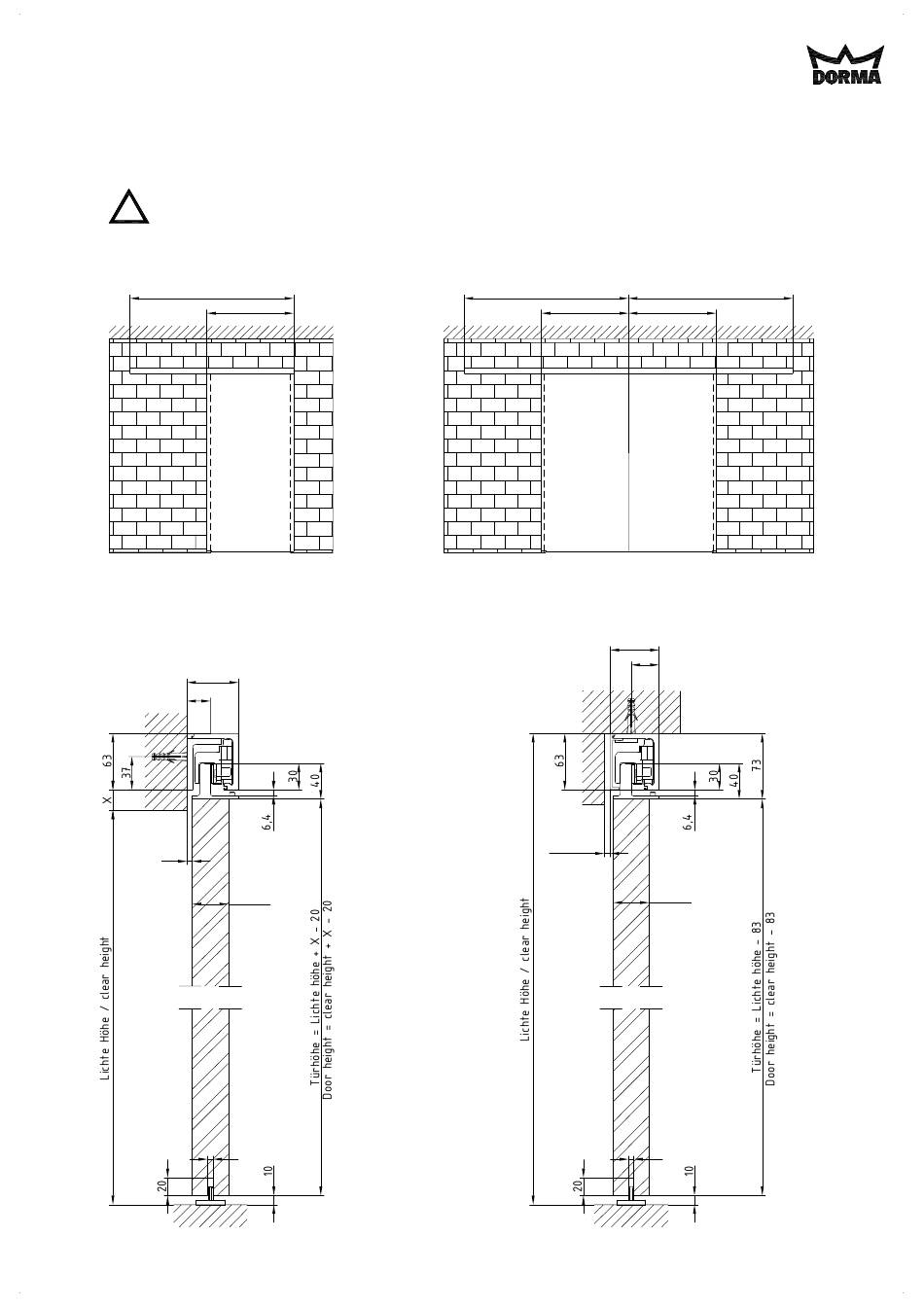

Montageanleitung "AGILE 150 für Holztüranbindung" - für Wand- und Deckenmontage
Ergänzung zu Montaganleitungen 800.52.114/115.6.32
Installtion instruction "AGILE 150 for timber applications" - for installation to wall and ceiling
Addition for installation instructions 800.52.114/115.6.32
Eine Höheneinstellung ist bei der Holztüranbindung nicht möglich!
!
Height adjustment is not possible at timber application!
B
A
58
27
7
28-40
6
DORMA-Glas
B
min. 10
Stand/Issue 01.09 / 003601
B
A
A
54
31
28-40
6
800.52.395.6.32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGILE 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorma AGILE 150

  • Page 1 Montageanleitung "AGILE 150 für Holztüranbindung" - für Wand- und Deckenmontage Ergänzung zu Montaganleitungen 800.52.114/115.6.32 Installtion instruction "AGILE 150 for timber applications" - for installation to wall and ceiling Addition for installation instructions 800.52.114/115.6.32 Eine Höheneinstellung ist bei der Holztüranbindung nicht möglich! Height adjustment is not possible at timber application! min.
  • Page 2 Gewindestift / grub screw Mittelstellung vor der Montage kontrollieren und ggf. mit dem Gewindestift korrigieren. Before assembly of roller carrier, please check the centre position and adjust with grub screw as necessary! DORMA-Glas Seite / Page 2/4 Stand/Issue 01.09...
  • Page 3 Align the door and lean the door against the angle profile! Montage der Laufschiene, siehe 4 mm Montageanleitung 800.52.114/115.6.32 8 -10 Nm Installation of track rail, please see installtion instruction 800.52.114/115.6.32 Klötze / blocks DORMA-Glas Seite / Page 3/4 Stand/Issue 01.09...
  • Page 4 5.5 geeignet. Geeignete auf den Untergrund abgestimmte Befestigungsmittel verwenden! Delivered screws and plugs (DIN 7997 5x40, S8) are not usable for all types of foundations! Please use suitable fixing material according to foundation! DORMA-Glas Seite / Page 4/4 Stand/Issue 01.09...
