Chapter 6
Instrument
Interface
The Instrument Interface is a 4 channel device providing analog input capability to
the PowerLab C. The device is powered and controlled by a single USB-C/PD cable
connecting to the PowerLab C, or to a host computer. Connection to the PowerLab
C provides adaptive mains filtering (when PowerLab C is powered from mains) and
enables advanced synchronization features.

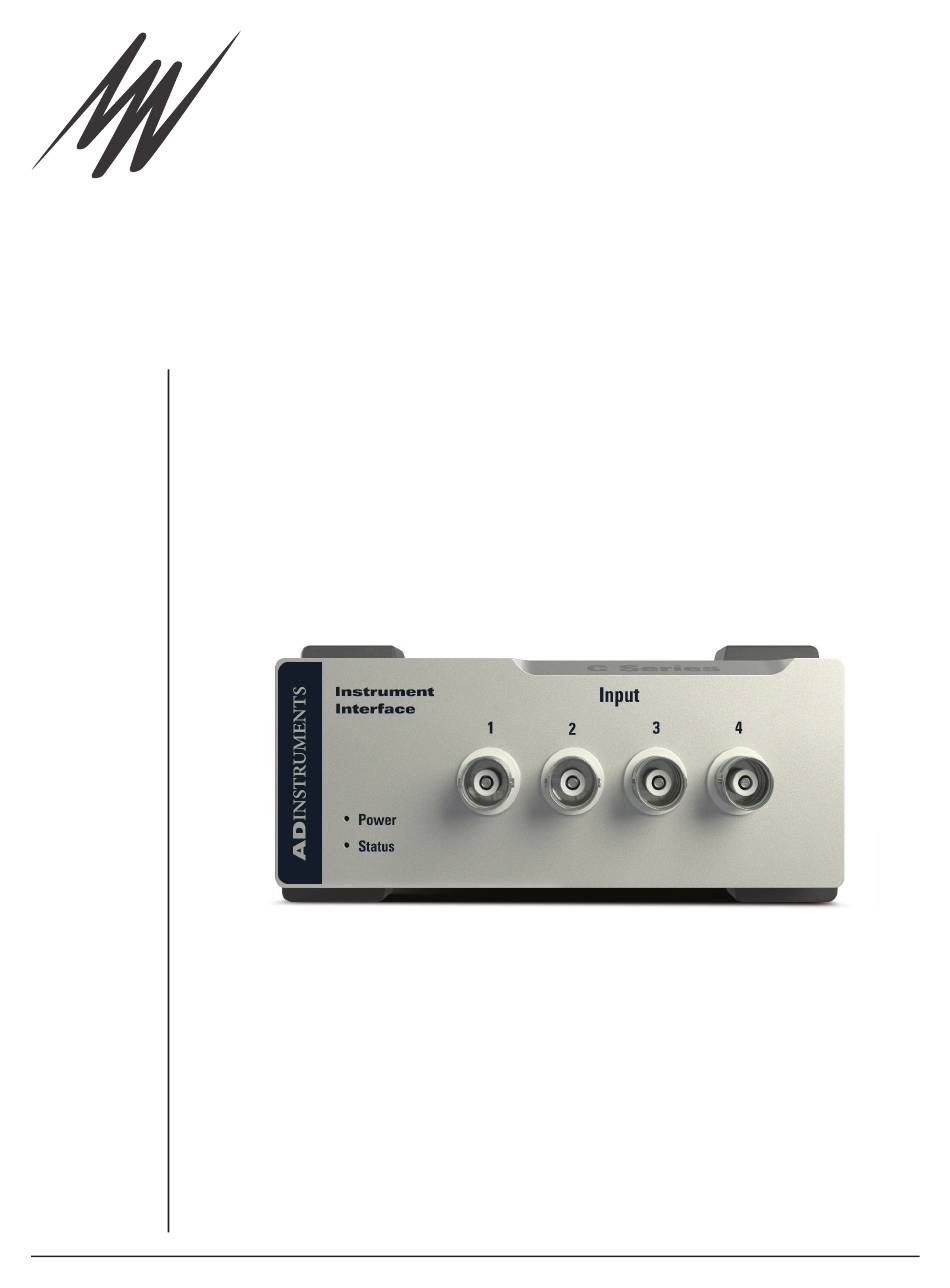

Figure 6–1
The Instrument
Interface
28
Owner's Guide
