Figure 5–2

The front view

of the
Front End
Interface
NOTE:
The Front End
Interface does not
support daisy
chaining Front Ends.
The 'I2C Output'
port on a Front End
should NOT be used
in conjunction with
the Front End
Interface.
19

The Front End Interface

This section describes the connectors and indicators of the Front End Interface.
The Front View

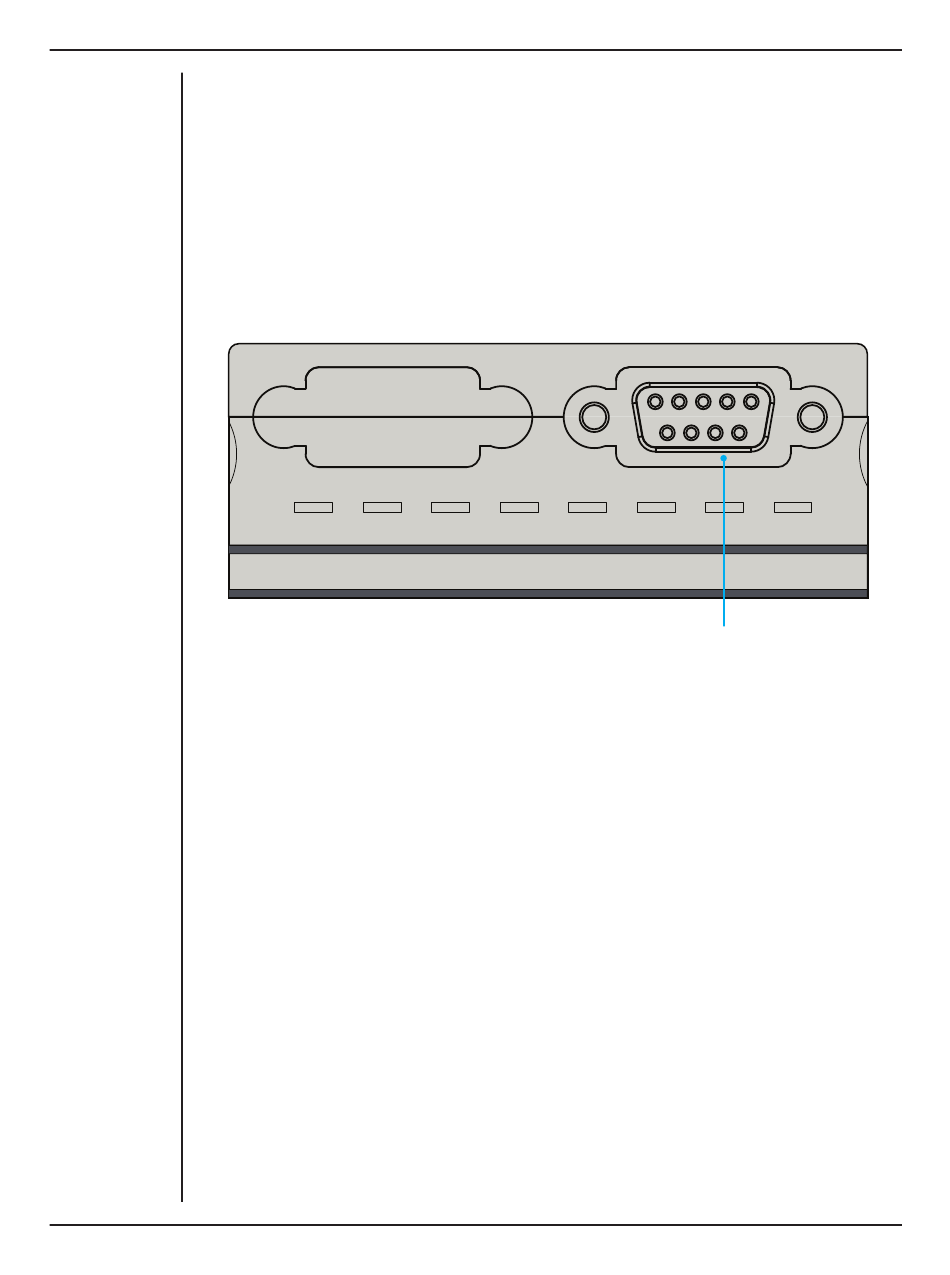

The front of the Front End Interface (Figure 5–2) provides an I2C port for connection to
any ADInstruments Front End. The product is designed to connect directly to the rear of
all current Front Ends. It can also be connected via the MLAC02 DB9M -DB9F Cable (sold
separately) if required.
I2C Port
