The Rear View - ADInstruments PowerLab C Series Owner's Manual

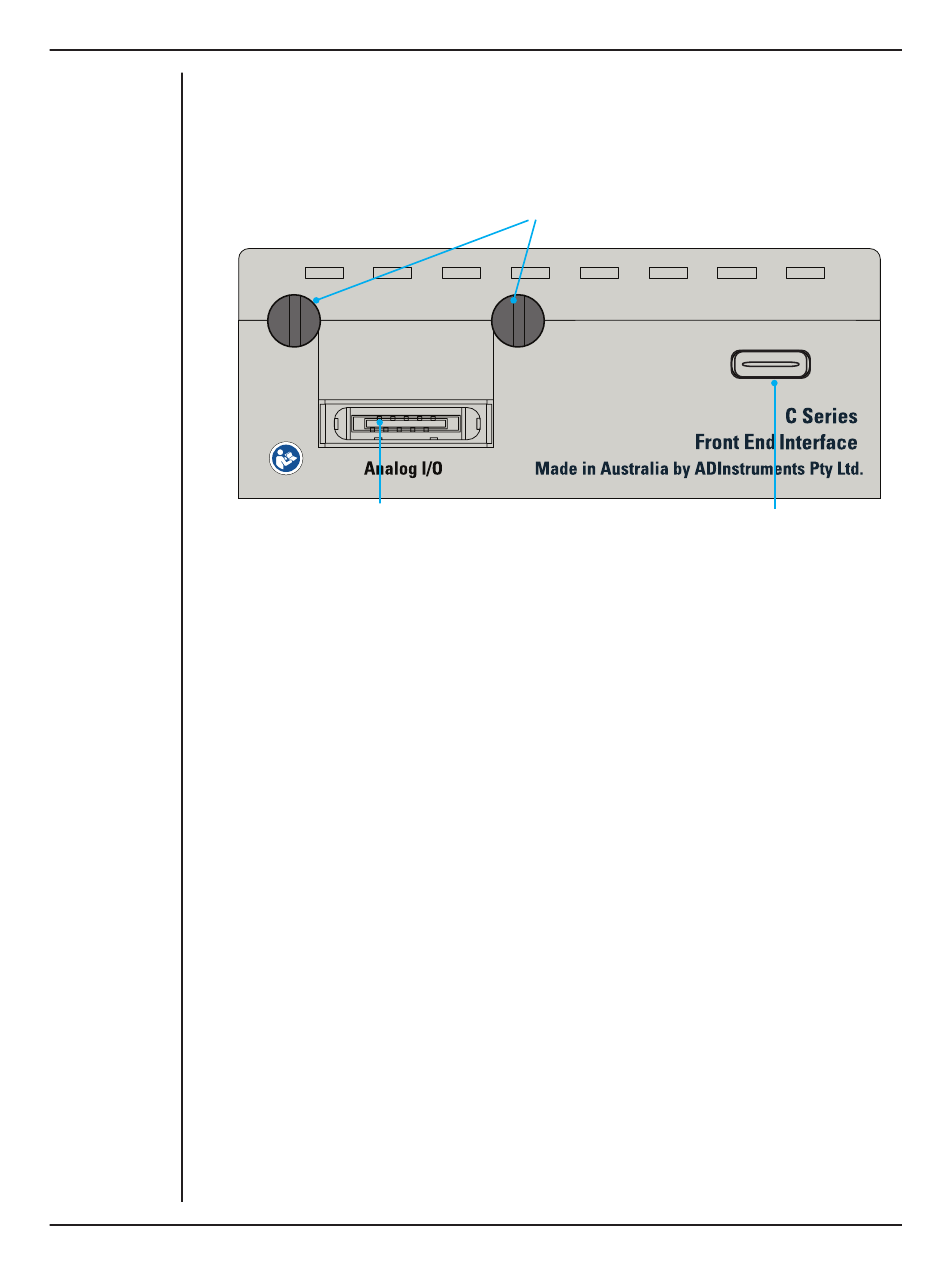

Figure 5–3
The rear view of
the
Front End
Interface
NOTE:
The Front End
Interface does not
support daisy
chaining Front Ends.
The 'I2C Output'
port on a Front End
should NOT be used
in conjunction with
the Front End
Interface.
20

The Rear View

The rear of the Front End Interface (Figure 5-3) has the following connectors/ features:
Analog Input/
Output
Connector
• USB-C Port for connection to PowerLab C or computer
• Analog connector for connection to the analog outputs on the rear of the front
End. 1, 2, 4 and 8 Channel cable variants are available. See the compatibility
matrix below for details.
• Guide Screws for securely attaching to the rear of a supported ADInstruments
Front End. These screws should be done up finger tight only. Note these screws
are not necessary if connecting the device via an MLAC02 DB9 cable.
Guide Screws
USB-C port
