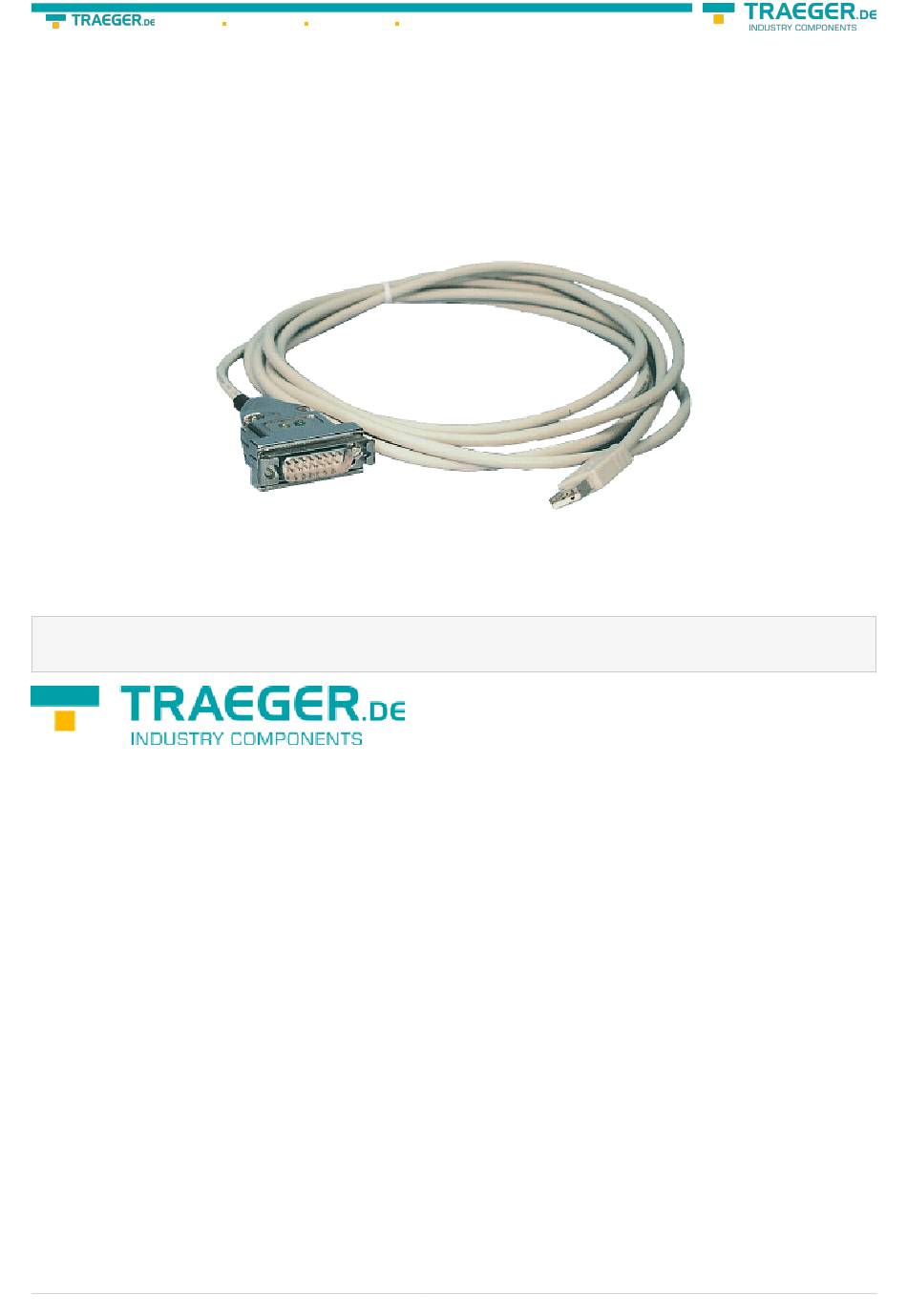

- Page 1 Söllnerstr. 9 92637 Weiden info@traeger.de +49 (0)961 48 23 0 0 PG-USB user manual PG-USB-Kabel 3m|Art.Nr. 9359-1 PG-USB-Kabel 5m|Art.Nr. 9359-1.05M documentation of version XX PG-USB user manual 1 / 23 2021/02/28 16:13...
-
Page 2: Basic Circuit Diagram
+49 (0)961 48 23 0 0 1 Description The PG-USB is an active cable for the connection of a Siemens X4/X5 interface to the PC USB port. The cable does not need any supply from the controller because it is completely supplied from the connected PC. -
Page 3: Software
You need a corresponding programming software (eg PG2000, Step©5, S5 for Windows, WinCC) to can work with the PLC. You also need the PG-USB driver for Windows. 3.2.1 Driver for Windows XP 1. Download the USB-driver for the product of the you known web-site. Extract the file on your harddisc. - Page 4 If properly installed, appears at the right bottom of the screen another tray icon. On this icon you can see if the PG-USB-cable / USB-RS232-converter is recognized or not, and whether the communication is currently running: PG-USB-cable / USB-RS232-converter is not recognized or not plugged.
-
Page 5: Uninstallation Of The Usb Driver And Installation Of A New Version
1. Please download from the you known web-site the “S5-patch” and extract the file on your PC. 2. Now start the application “S5USB.exe” from the previously extracted folder 3. Device selection Now select the type of device. Select “S5-LAN + + / PG-USB-cable / USB-RS232- converter” and confirm with “OK”. -
Page 6: Status-Leds
If you want to respond to a PLC via the module you have to comply the requirements as descript in the chapter “system requirements” . In addition,please make sure that the module is properly connected PG-USB user manual 6 / 23 2021/02/28 16:13... -
Page 7: Programming Software To Use With Direct Access
1.Start the PG 2000 software by using the desktop link or by using the application entry in the start menu. 2. Choose from menu “View” ⇒ “S5 155U-90 …” In the menu “Options“ click “Interfaces“. PG-USB user manual 7 / 23... - Page 8 5. Save your configuration by pressing “OK“. 6. Now the software is ready to establish a connection to the PLC. Click the symbol “Open“ and afterwards press “PLC”. Alternative you can click “File“ - “Open“ - “PLC“. PG-USB user manual 8 / 23 2021/02/28 16:13...
-
Page 9: Simatic Step© 5 Manager
2. in the “File” menu , in submenu “project” you can the “Setting” dialog open. 3. In the tab “AG” configure the used PLC interface (example: “AS511”). Below that, you can set the COM port (example: “COM3”). PG-USB user manual 9 / 23 2021/02/28 16:13... -
Page 10: Windows Control Center (Wincc) (V6.0)
2. Choose „New” in the menu „File” or click on the white („letter”) symbol to start a new project. 3. The next dialog offers you several project types „Single - User Project“, „Multi - User Project“ and „Client Project“. The next steps are describing the „Single - User Project“. PG-USB user manual 10 / 23 2021/02/28 16:13... - Page 11 file SIMATIC S5 Programmers Port AS511.chn. If you are using a different PLC please inform yourself which driver fits with your PLC. It is important that the chosen driver fits with the PLC otherwise the connection cannot be established. PG-USB user manual 11 / 23 2021/02/28 16:13...
-
Page 12: Windows Control Center Flexible 2004 (Wincc Flexibel) (V5.2.0.0)
5. Right in the main window appears the new tab “Connections” where you are different settings options. Important for the connection are: ⇒ the communication driver (set up which PLC you are using (eg: „SIMATIC S5 AS511“) ⇒ select the used “CPU - type” (eg “S5 95U”) PG-USB user manual 12 / 23 2021/02/28 16:13... - Page 13 “Off”. 9. Press the button „Transfer“ to start communication with the terminal. Your project is about to be transferred. The communication with the operator terminal is so successfully established . PG-USB user manual 13 / 23 2021/02/28 16:13...
-
Page 14: Protool/Pro V6.0 Sp2
Coose„Seriall“ and the COM interface of the operating terminal (e.g.: „COM1“). set the baud rate to “19200”. Confirm with „OK“. and start with your work If you have finished working on this project you can PG-USB user manual 14 / 23... -
Page 15: S5 For Windows V5.02
2. Choose File - >Preferences… (top left in the menu bar) to configure the communication configuration between the computer and the PLC. 3. A new dialog appears which offers the possibility to set up a lot of configuration data about the communication with your PLC. PG-USB user manual 15 / 23 2021/02/28 16:13... - Page 16 ⇒ Baud Rate: Choose the speed you want to use at the bus 4. 5. After the software is configured , click “Select PLC” in the area “MPI Converter“. A new dialog appears where you can select the desired PLC PG-USB user manual 16 / 23 2021/02/28 16:13...
- Page 17 7. Back in the main window press the „PC Block List“ button for testing the new established communication configuration. 8. Now (after a small processing time) all the blocks should be listed under the menu bar. PG-USB user manual 17 / 23 2021/02/28 16:13...
- Page 18 Supply voltage: 5V/DC Power consumption: 0,3 watt Display: 2 status-LEDs for RXT/TXD to the PLC: TTY/20mA current loop (PG-USB active, PLC passive) Interfaces: to the PD/PC: USB 1.1 cable type A Operating temperature: 5 - 55°C Case: metal case Dimensions:...
-
Page 19: Pinning (Usb) Pc
The S5VCOM driver is based on the standard Windows drivers for the PG-USB-cable / USB-RS232-cable so that needs to be installed first. Plug in the PG-USB-cable /USB-RS232-converter into a USB port and follow the installation instructions. (The driver is on the CD) - Page 20 S5VCOM uses COM3 in the DOS box, but my S5 software can only use COM1 or COM2 (eg.: S5 V3.02) Try to integrate in the system the from system existing COM 1/2 interface as a COM 3/4 (possibly by a PG-USB user manual 20 / 23 2021/02/28 16:13...
- Page 21 +49 (0)961 48 23 0 0 jumper). My Windows software can not access the PG-USB-cable / USB-RS232-converter, although this is set in the control panel correctly and it worked before. It appears the error message that the COM port is already occpied or is not accessible.
- Page 22 Söllnerstr. 9 92637 Weiden info@traeger.de +49 (0)961 48 23 0 0 PG-USB user manual 22 / 23 2021/02/28 16:13...
-
Page 23: Table Of Contents
3.2.2 Driver for Windows 98 ......................3.2.3 Uninstallation of the USB driver and installation of a new version ........... 3.2.4 Installation of the Step5 © addition driver for PG-USB/S5-LAN + + / USB-RS232-converter ..............................4.1 Status-LEDs ............................. 5.1 Programming software to use with direct access ..............
