Airflow Unohab Instructions

1
3
Supply / Extract
1

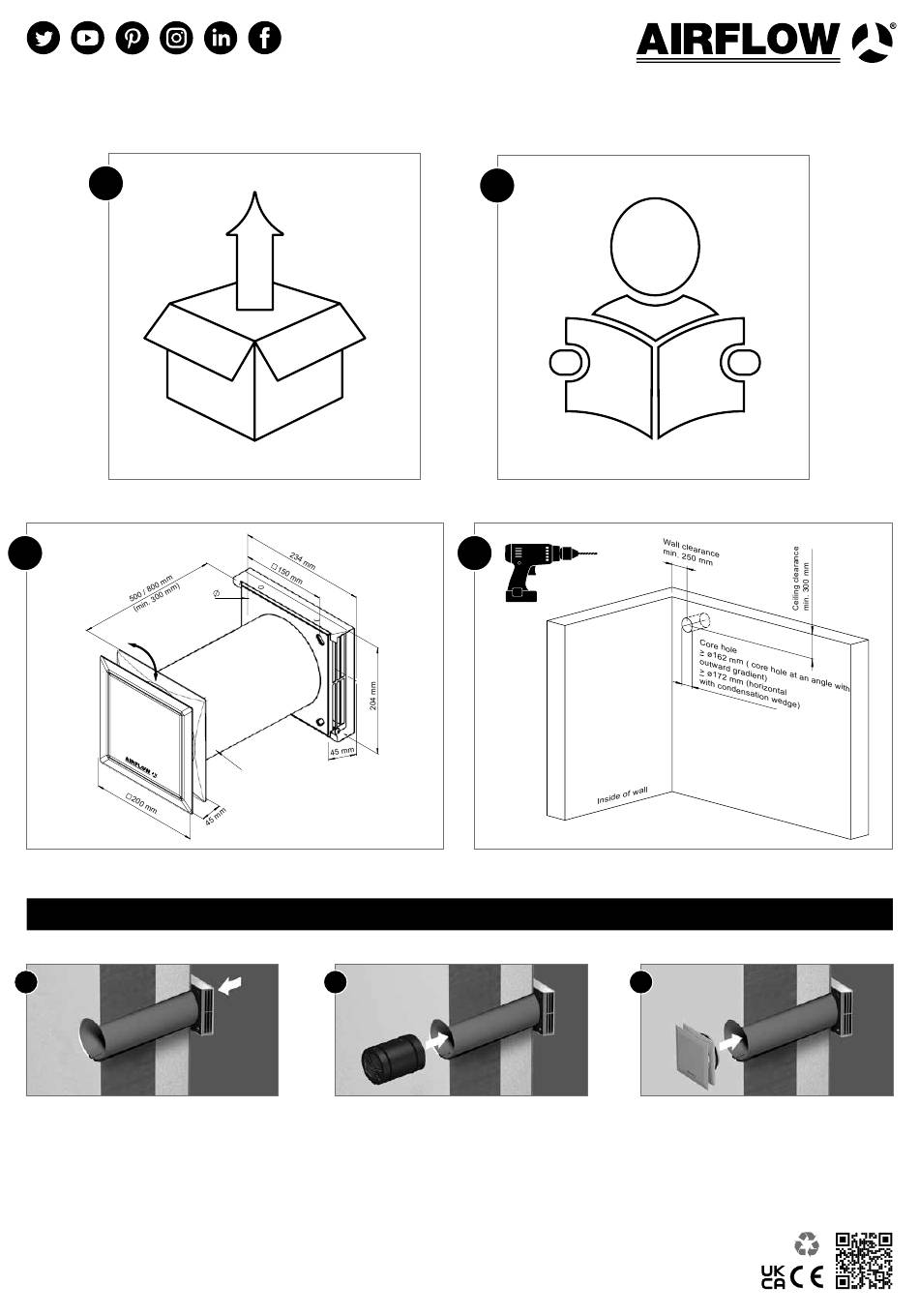

Step 1
Install wall sleeve and external panel. Once the
wall installation sleeve has been fixed in the
drilled core hole (its length can be cut to min.
300 mm), the external panel can be mounted
to the finished facade.
Read the instructions before installation!
8 mm
Wall sleeve ø 160 mm
(Core hole ≥ ø 162 mm with outward gradient)
(Core hole ≥ ø 172 mm horizontal)
2
Step 2
Insert unit and connect it electrically*. Once
the construction or renovation is complete,
the unit can be inserted in the wall sleeve and
connected electrically. *This product should
only be installed by a skilled competent person
in order to comply with the appropriate Building
Regulations or Standards in place.
2
4
QUICK GUIDE
3
Step 3
Insert internal grille. Once the fan unit has
been installed, the internal grille panel with
integrated filter can be attached. This can be
performed easily without any tools.
