INSTALLATION AND OPERATING INSTRUCTIONS
-
© Airflow
we reserve the right to make changes without prior notice

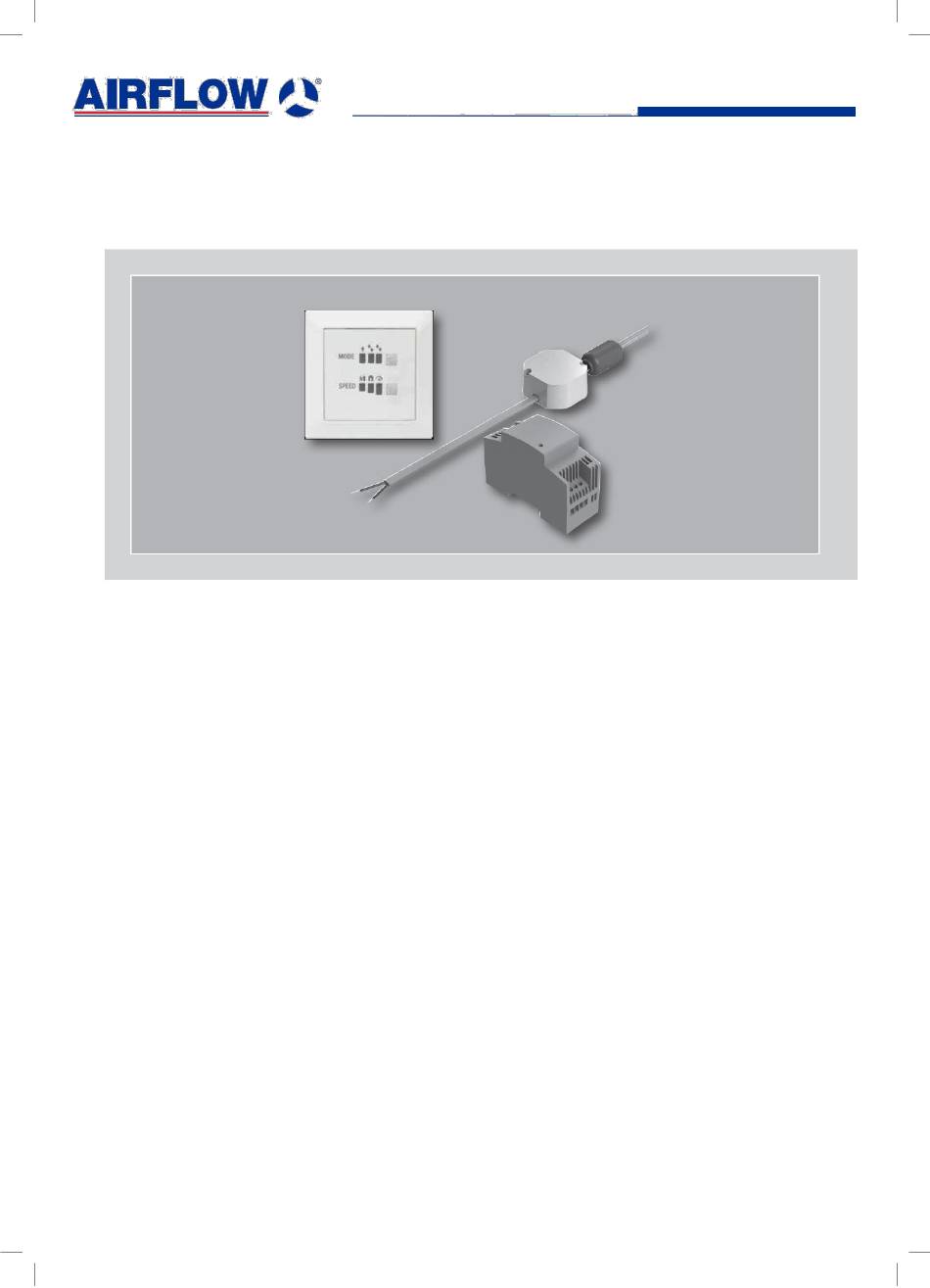

Uno hab Controller Kit Flush / Controller Kit DIN
Control Kit
Uno hab CONTROLLER KIT
FLUSH (PSF)
Uno hab CONTROLLER KIT
DIN-RAIL MOUNTED (PSD)
Including
- Uno hab CTRL
- Uno hab PSF
- Uno hab PSD
Installation and Operating Instructions
Controller
Switching Power Supply Flush or
Switching Power Supply DIN-rail
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Airflow Uno hab
Summary of Contents for Airflow Uno hab
- Page 1 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN INSTALLATION AND OPERATING INSTRUCTIONS Control Kit Uno hab CONTROLLER KIT FLUSH (PSF) Uno hab CONTROLLER KIT DIN-RAIL MOUNTED (PSD) Including - Uno hab CTRL Controller - Uno hab PSF...
-
Page 3: Table Of Contents
Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN Table of contents CHAPTER 1. SAFETY ............................4 1.0 Important information ..........................4 1.1 Warning instructions ........................... 4 1.2 Safety instructions ............................4 1.3 Area of application ............................4 1.4 Personnel qualification .......................... -
Page 4: Chapter 1. Safety
Further country-specific regulations must also be observed. Area of application Uno hab is controlled via the Uno hab CTRL controller, up to eight units can be connected to one Uno hab CTRL (note wiring diagrams SD-3 or SD-4). – Normal use: The control set and its components are only approved for fixed installation inside buildings in a flush-mounted box or in a control cabinet. -
Page 5: Chapter 2. General Instructions
Shipping The control set Uno hab Controller Kit Flush / Controller Kit DIN is packed ex-works in such a way that it is protected against normal transport strain. Carry out the shipping carefully. It is recommended to leave the fan in the original packaging until required. -
Page 6: Chapter 3. Technical Data
Uno hab Controller Kit Flush / Controller Kit DIN Installation and Operating Instructions CHAPTER 3 3.0Technical data – Uno hab CTRL Controller TECHNICAL DATA Voltage/frequency 12 V / DC Max. current 3.0 A Ventilation modes Operating modes Control cable (analogue) J-Y (ST) Y 2 x 2 x 0.8 mm... -
Page 7: Chapter 4. Controller Uno Hab Ctrl
4.0 Operation and function CHAPTER 4 Uno hab units can be controlled by the Uno hab CTRL controller, there must be at least two Uno hab units connected to a Uno hab CTRL (see wiring diagram SD-3 or SD-4). CONTROLLER The controller enables 3-speed operation plus “OFF”... -
Page 8: Ventilation Stage Button
The “supply air mode” function enables the combination with an extract air fan (QuietAir) fitted to wet rooms as per A.D. Part F. For this purpose, the Uno hab unit, which is connected to terminal 10, is switched to supply air mode. You can also set whether the units, which are connected to 11, also change to supply air mode or standby mode via the programme mode. -
Page 9: Overview Of Adjustable Functions
Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN 4.3 Overview of adjustable function The programme mode enables the individual adjustment of the ventilation system, numerous functions can be configured: Configuration Description Filter change Setting the interval times for the filter change display. -
Page 10: Programming
Factory setting: 15 s If continuous operation is activated, the LED display will stay on. Programming The Uno hab can be programmed via the Duplexvent UNO software or the two buttons on the Uno hab CTRL controller. “SPEED (S)” button –... -
Page 11: Led Menu Displays
Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN LED menu displays (* = factory settings) 1. Filter change LED 1 / 4 LED 1 / 5 LED 1 / 4 / 5 LED 1 / 6... - Page 12 Uno hab Controller Kit Flush / Controller Kit DIN Installation and Operating Instructions 6. Function Operating mode setting LED 2 / 3 / 5 LED 2 / 3 / 6 LED 2 / 3 / 4 LED 2 / 3 / 4 / 5 HR only Operat.
-
Page 13: Chapter 5. Software Installation
Uno hab Controller Kit Flush / Controller Kit DIN 5.0 System requirements CHAPTER 5 A connection can be established to a PC / Notebook via the USB interface. The Duplexvent UNO software can be downloaded from www.airflow.com in the help & support / selection SOFTWARE software section. INSTALLATION The Duplexvent UNO software is supported by the following operating systems: (The software requires at least .NET V.4.0 installation) -
Page 14: Installation Usb Driver
The Duplexvent UNO software can be used for the configuration or as a management tool. You can read out the Uno hab CTRL, save the configuration and edit the Uno hab CTRL settings or read out the operating hours. Installation USB driver... - Page 15 Alternatively, the device can be uninstalled in the device manager and then reconnected. The required driver files are stored under C:\Program Files (x86)\Airflow\Duplexvent_UNO45 during the driver setup. If the device is connected to the PC after the software installation, the driver will be properly installed automatically.
-
Page 16: Chapter 6. Software Configuration
Save to file (save configuration on PC) End programme Configuration fields Operating hours display Software configuration Ensure that the Uno hab Controller is connected to the PC by USB connection cable (note section 5.2). © Airflow we reserve the right to make changes without prior notice... - Page 17 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN NOTE: NOTE If the controller is not connected through USB or not powered, current controller set up cannot be read nor can new state be set; only saved set up files can be edited.
- Page 18 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN 2. Load and edit configuration NOTE NOTE: Values will not be displayed after the first connection Read from controller Click button 3 The software loads the current configuration from the controller.
- Page 19 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN 3. Write configuration If configuration fields have been changed, the overwritten configuration can be written back to the controller by clicking the button “Write to controller” 4 Write to controller Click button 4 4.
-
Page 20: Chapter 7. Important Unit Information
An external consumer (e.g. extract air unit) can be monitored via the extractor fan module Uno hab EXM (Accessories, Part No: 90000997), e.g. if an extract air fan starts in the ventilation system (QuietAir), this will be detected by intelligent electricity metering. - Page 21 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN The ratio of supply and exhaust devices can be set as it follows: All units connected to terminal 10 will supply air. All units connected to terminal 11 will extract air.
-
Page 22: Chapter 8. Fault Causes
Uno hab Controller Kit Flush / Controller Kit DIN Installation and Operating Instructions 8.0 Fault causes CHAPTER 8 Fault Causes Solution – Mains power supply failure 230 V Uno hab does not Check mains power supply FAULT CAUSES start Check connections according to wiring diagram –... -
Page 23: Chapter 9. Wiring Diagram Overview
4 m UP-Dose 8 9 10 11 Uno hab CTRL Operation with up to 6 x Uno hab and 1 x Uno hab PSF Uno hab: M1 - start cycle: supply Uno hab: M2 - start cycle: extract 6 - GND... -
Page 24: Wiring Diagram Sd-4
Uno hab Controller Kit Flush / Controller Kit DIN 9.1 Wiring diagram SD-4 Operation with 8 x Uno hab and 2 x Uno hab PSF connected in parallel Uno hab: M1 - start cycle: supply Uno hab: M2 - start cycle: extract... - Page 25 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN Notes: © Airflow we reserve the right to make changes without prior notice...
- Page 26 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN Notes: © Airflow we reserve the right to make changes without prior notice...
- Page 27 Installation and Operating Instructions Uno hab Controller Kit Flush / Controller Kit DIN Notes: © Airflow we reserve the right to make changes without prior notice...
- Page 28 Visit: airflow.com 80000778 - Issue1 08/19 © Airflow Developments Limited E-mail: info@airflow.com Airflow Developments Limited. Airflow Developments Limited reserve the right, in the Aidelle House, Lancaster Road, Telephone: +44 (0) 1494 525252 interests of continuous development, to alter Cressex Business Park, specifications without prior notice.
