- Page 1 Installation Guide Drive X Vehicle Cell Signal Booster Kit Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 Installation Overview . -
Page 4: Package Contents

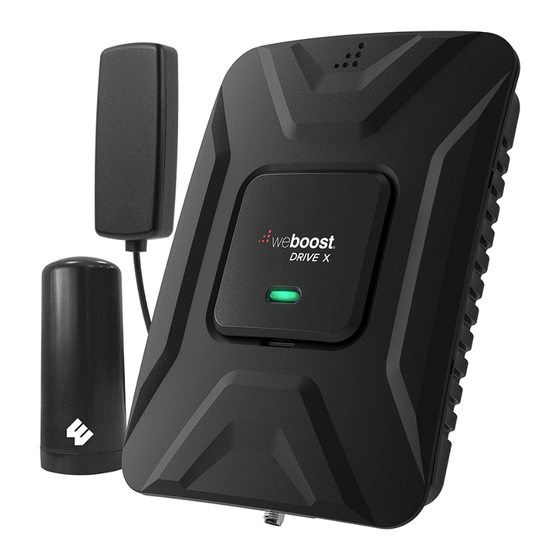

Package Contents Booster In-Vehicle Power Outside Antenna & & Bracket Antenna Supply Adhesive Disk (for use on aluminum vehicles) -
Page 5: Installation Overview
Installation Overview Outside Antenna Inside Antenna to power Booster WORKS WITH ALL VEHICLES NOTE: For aluminum roofs, an adhesive disk is included to mount the outside antenna (do not use if outside antenna will magnetize to the top of your vehicle). -
Page 6: Step 1 Mount Outside Magnetic Antenna
STEP 1 Mount Outside Magnetic Antenna Identify a location for the outside antenna on 12 in. away from windows the top of your vehicle that is: (including sunroofs) ■ Near the center of the roof ■ A t least 12 inches away from any other antennas ■ A t least 12 inches away from any windows including sunroofs (for best performance install on top of vehicle) Cle an the surface where you will place the outside antenna. - Page 7 (STEP 1 cont.) routed into rear side door Once the outside antenna is mounted and secured, route the coax cable into the vehicle. The coax cable can be routed in different ways depending on your type of vehicle. The cable is strong enough that it may routed into top of be shut in most vehicle doors without damage.
-
Page 8: Step 2 Mount The Inside Antenna
STEP 2 Mounting Inside Antenna Identify a place to mount the in-vehicle antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches In-Vehicle but no more than 36 inches from where the Antenna cell phone device will be used. -
Page 9: Step 3 Booster Location & Connect Coax Cables
STEP 3 Booster Location & Connect Coax Cables Find a accessible location to place the booster that has good air flow. The booster includes a mounting bracket that can be secured in a specific location. Behind or under the seat is a screw holes good option. - Page 10 (Booster Location & Connect Coax Cables cont.) Connect the coax cable from the outside antenna to the port labeled “Outside Antenna” on the booster. Then connect the cable from the inside antenna to the port labeled “Inside from Outside Antenna Antenna”...
-
Page 11: Step 4 Connect Power Supply To Booster
Power up your Drive X by flipping the switch on the back of the DC power adapter on. If your Drive X is working correctly, the light on the power adapter will be red, and the light on the booster will be green. -
Page 12: Booster Light Patterns
If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section. LIGHT OFF If the Drive X signal booster’s light is off, verify your power supply has power. - Page 13 (Booster Light Patterns cont.) NOTE: The signal booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting, you must initiate a new power cycle by disconnecting and then reconnecting power to the booster.
-
Page 14: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660). - Page 15 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the outside antenna and inside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
-
Page 16: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. - Page 17 (Safety Guidelines cont.) FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER IN THE U.S., PLEASE GO TO THE LINK BELOW: https://www.weboost.com/carrier-registration...
- Page 18 Antenna Info The following accessories are certified by the FCC to be used with the Drive X Booster. This radio transmitter 4726A-460021 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.
-
Page 19: Specifications
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 20: Warranty
RMA numbers may be obtained by contacting Customer Support. DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 21 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 22 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 23 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 24 3301 East Deseret Drive, St. George, UT 1-866-294-1660 www.weboost.com support@weboost.com Copyright © 2017 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents GDE000585_001_03.17.24 NOT AFFILIATED WITH WILSON ANTENNA...
