Summary of Contents for weBoost Drive Reach Flex Fleet

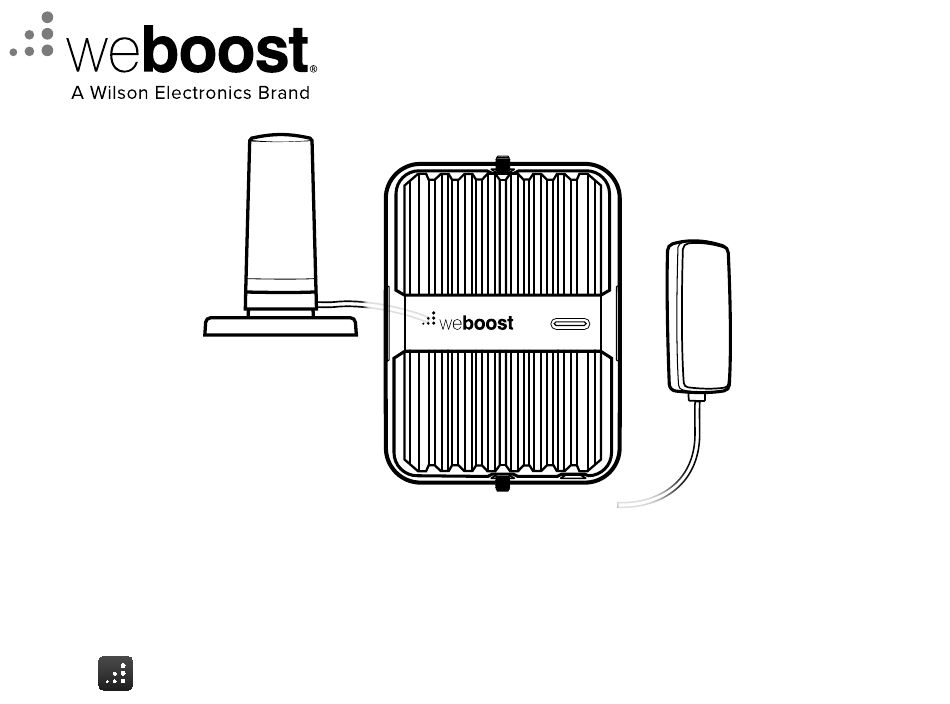

- Page 1 Installation Guide ® Drive Reach Flex Fleet Professional Vehicle Cell Signal Booster Kit Use our weBoost App to guide you through the installation. See inside page for more details.
- Page 2 Download the weBoost App Download the weBoost App Use our app to guide you through setting up a weBoost cell phone signal booster in your home, business, or vehicle. Boost every network, including 5G, right away. Videos to guide you...
-
Page 3: Table Of Contents
Index Package Contents ............1 STEP 1 Mount the Outside Antenna . -
Page 4: Package Contents
Package Contents Booster & In-Vehicle Power Supply, Outside NMO Antenna Mounting Antenna Hardwire Power + Magnet NMO Mount Bracket Supply & In-line with 14 ft. Cable Fuse Holder Mounting Plate O-Ring Lubricant for Aluminum Packet Vehicle... -
Page 5: Step 1 Mount The Outside Antenna
STEP 1 Mount the Outside Antenna Identify a location for NMO outside antenna on the top of your vehicle that is: ■ Near the center of the roof ■ At least 12 inches away from any other antennas ■ At least 6 inches away from any windows Do a soft install before finalizing the antenna mounting point. - Page 6 (STEP 1 cont.) Once the antenna location point has been apply silicone identified, route the cable into the vehicle. grease The cable is strong enough that it may be shut in most vehicle doors without damage or the cable can be routed into the vehicle through the third brake light, as shown.
- Page 7 (STEP 1 cont.) After running the cable through the third brake light into the vehicle, pull down the headliner so the cable can be routed into side trim the vehicle cabin. Route the cable down panel the vehicle pillar to the desired booster location.
-
Page 8: Step 2 Mount The Inside Antenna
STEP 2 Mounting the Inside In-Vehicle Antenna Antenna Identify a place to mount the in-vehicle antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used. -
Page 9: Step 3 Hardwiring To Power
STEP 3 Hardwiring to Power The Drive Reach Flex Fleet kit includes a CLA and Hardwire power option. The CLA power can be connected to a vehicle cigarette lighter port. Hardwire instructions are below. Use the steps below as a general template for wiring the power. There are multiple options for wiring and steps will vary depending on the vehicle type. - Page 10 (STEP 3 cont.) ■ Connecting the power supply. Once you have determined a fuse slot to use connect the positive lead on the power cable to the included in-line fuse then attach to a fuse tap and crimp into place (fuse tap is not included in the kit and will vary by vehicle type).
-
Page 11: Step 4 Connect Coax Cables To Booster
STEP 4 Connect Coax Cables to Booster Connect the cable from the outside antenna from Outside Antenna to the port labeled “Outside Antenna” on the booster and connect the cable from the inside antenna to the port labeled “Inside Antenna” on the booster. -
Page 12: Step 5 Connect Power Supply To Booster
STEP 5 Connect Power Supply to Booster Connect the 12V power supply cord to the end of the booster, labeled "12V DC" then plug the power adapter into vehicle’s 12V DC power supply. Push switch to ON position. If your Drive Reach is working correctly, the light on the booster will be green. -
Page 13: Booster Light Patterns
Booster Light Patterns SOLID GREEN This indicates that your Drive Reach booster is functioning properly and there are no issues with installation. SOLID RED Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. - Page 14 (Booster Light Patterns cont.) NOTE: The signal booster can be reset by disconnecting and reconnecting the power supply. After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the booster.
-
Page 15: Troubleshooting
Note: Horizontal separation of the two antennas typically requires a shorter separation distance than vertical separation. If you are having any difficulties while testing or installing your booster, contact our weBoost Customer Support team for assistance (1-866-294-1660). - Page 16 How can I contact customer support? Customer Support can be reached Monday through Friday by calling 1-866-294-1660, or through our support site at support.weboost.com. Why do I need to create distance between the outside antenna and inside antenna? Antennas connected to a booster create spheres of signal. When these spheres overlap, a condition called oscillation occurs.
-
Page 17: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone. RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons. - Page 18 (Safety Guidelines cont.) FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW: T-Mobile/Sprint/MetroPCS: https://www.t-mobile.com/support/coverage/register-a-signal-booster Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html AT&T: https://securec45.securewebsession.com/attsignalbooster.com/ U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp...
-
Page 19: Antenna Info
Antenna Info The following accessories are certified by the FCC to be used with the Drive Reach Booster. This radio transmitter 4726A-460061 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device. -
Page 20: Specifications
(1) This device may not cause interference, and (2)) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. -
Page 21: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use. - Page 22 Step 1: Take a photo of your Photoregister Step 2: Send it in. Code including the points ( ). Smartphone U.S. only Text photo to 71403 Email U.S./CAN weboost@photoregister.com Online register.weboost.com Need help? Visit photoregister.com/help or text HELP to 71403.
- Page 23 Notes 1-866-294-1660 www.weboost.com support@weboost.com...
- Page 24 3301 East Deseret Drive, St. George, UT 1.866.294.1660 www.weboost.com support@weboost.com Copyright © 2021 weBoost. All rights reserved. Wilson Electronics products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000467_003_03.25.22...
