weBoost RV Drive Reach OTR Installation Manual





There are four main components to install in your RV:

1. ​ O utside OTR/RV antenna with attached coax cable
Attach the antenna to a ladder or rail using the included 3-way mount.
We recommend mounting this antenna at the very front or very back of the
RV and pointing the inside panel antenna away from the outside antenna.
(This prevents signal oscillation and reduced booster output.) Insert the
connector at the end of the cable into a 0.35-inch (9 mm) hole or other opening
and pull the cable behind interior panels and appliances to the booster.

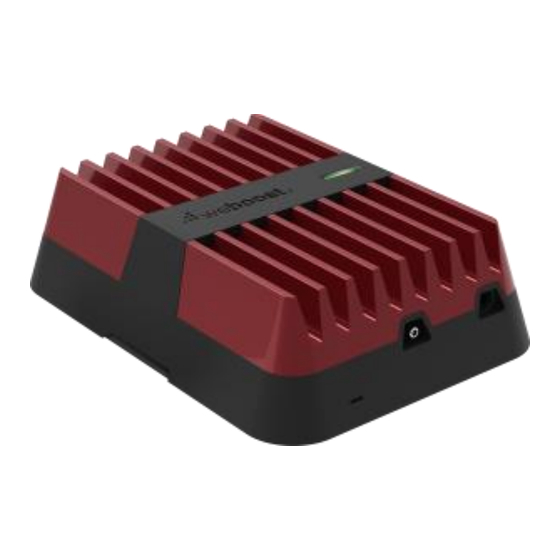

Connect the cable to the booster's ᴏᴜᴛsɪᴅᴇ ᴀɴᴛᴇɴɴᴀ port.
Do not pinch, kink, loop, or coil the cable.
(See the weBoost Drive Reach OTR user guide for detailed instructions on
installing the outside antenna.)
Continued on the back side...
You can install the RV weBoost Drive Reach OTR
system yourself or you can have it installed by
an RV dealer or service center. Installation requires
running a coax cable into your motorhome through
an available opening or a specially drilled 0.35-inch
(9 mm) entry point. (Speak with a professional if
you're not sure how to run cable into your rig.)
Installation tip:
We strongly recommend that
you do a "soft installation"
before permanently mounting
the outside antenna and
pulling cable.
Drive to an area with weak
cell signal, lay out and connect
all the components inside your
rig, then power up the booster
and check the signal you
receive from the inside
antenna. Compare your
internet data speeds with the
booster off and the booster on.
TS023019
v.20241018
