Introduction to the AFS Pro 1200

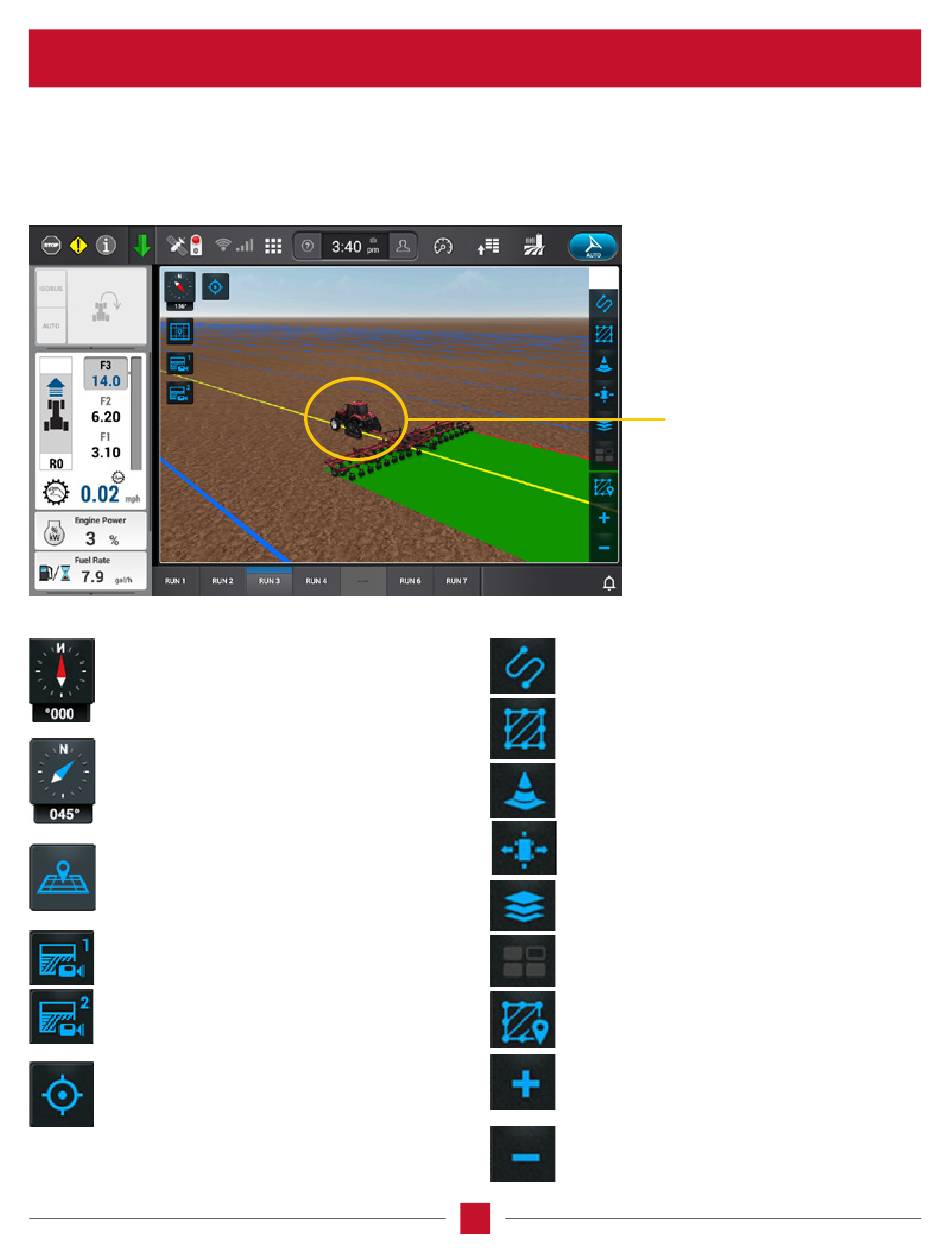

INTRODUCING AUTOGUIDANCE ICONS

Onscreen Icons
Compass – The compass icon consists of two sections. The
top of the needle tells the operator the direction.
The bottom of the needle shows the heading of the
compass as to the numerical heading in degrees.
When the needle of the compass is red, it will be locked
to the north and by pressing the icon will unlock it.
When the compass needle is blue it will be unlocked and
will be pointing to the vehicle heading and the degrees.
Arial/Operator View – The operator can zoom in and
rotate the view around the Heading Symbol (tractor
and implement icon) in any direction and see what is
happening at all times.
Map customer view 1 & Map customer view 2 –
The operator has the ability to save up to two custom
map configurations which can be viewed at any angle,
zoom level, and relative orientation to the vehicle and to
the heading. Hold and press a custom view icon to save
the map configuration.
Re-center – The Re-center icon allows the operator to
bring the vehicle symbol back to the center of the map.
The zoom level does not change.
Display
™
Swath Management – Press to access the
functions to create and manage swaths.
Boundaries – Press to access functions to
create and manage boundaries.
Landmarks – Press to access the functions to
create and manage landmarks (obstacles).
Swath Adjust Operations – Press to access nudge,
GNSS trim and GNSS remark operations.
Layers – Press to activate or deactivate coverage layers.
The coverage layers can be configured to display yield
data, seed applied rates, and perscription rates.
Widget – Allows the operator to "pin" to the
guidance screen for easy use. An example would
be AccuTurn controls.
Zoom Control to Field – Displays the field boundaries
fully on the screen.
Zoom In – Increases the view by one implement width
of the Heading Symbol (tractor and implement icon)
for each time the icon is pressed. The maximum zoom
is limited to one implement width.
Zoom Out – Decreases the view by one implement width
of the Heading Symbol (tractor and implement icon)
for each time the icon is pressed.
7
Heading Symbol –
The tractor and implement
icon displayed on the screen
