A-Post Instrumentation Cluster – CVXDrive

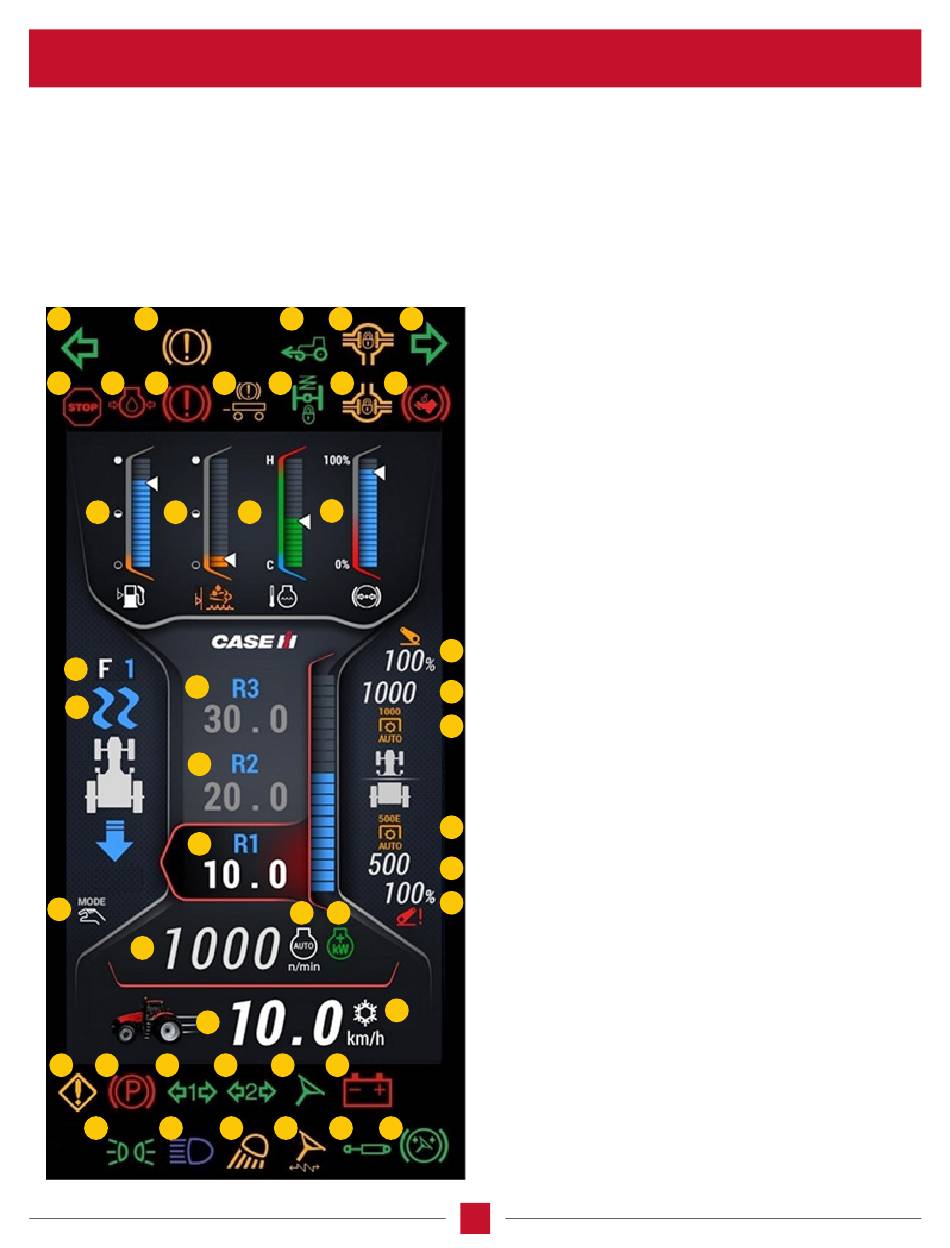

The A-Post Instrumentation Cluster is basically
a single location where the tractor functions are
displayed in one location. With a combination of
numbers, graphs, and icon lights the operator gets
a quick look at what is going on with the tractor.
1 2
6 7 8
13 14
17
20
18
21
22
19
29
32
34 35 36
40 41
3 4
9 10 11 12
16
15
30 31
33
37 38 39
42 43 44 45
1 The left turn signal arrow
2 The brake warning light
3
Tractor's MFD is engaged – Illuminates when the MFD is engaged, the
automatic MFD engages, or when both brake pedals are applied
4 Front Diff-lock is engaged – Illuminates when the Diff-lock is turned on
by the operator, the Auto Diff-lock is turned on and the tractor is going
in a straight line (N/A on Magnum)
5
The right turn signal arrow
5
6 The STOP warning light – Illuminates when there is a fault that
requires immediate attention
7 Low engine oil pressure
8 Not applicable in North America
9 Trailer brakes are active – If equipped, this light will come on when the
trailer brakes are active
10
Front axle suspension is locked out – This light will come on when the
front suspension system is turned off by the operator, or the tractor is
in Park
11 Rear axle Diff-lock is engaged – Illuminates when the Diff-lock is
turned on by the operator, the Auto Diff-lock is turned on and the
tractor is going in a straight line.
12 Not Available in North America
13 Fuel level
14 DEF level
15
Coolant temperature
16 Air pressure, if present – If not, then engine oil pressure
(Air pressure shown)
17
Tractor Direction – Indicates tractor direction of travel (reverse shown)
18 Anti-Jack Knife Feature is shown when activated (see page 16)
19 Transmission mode – AUTO or MANUAL (Manual shown)
23
20 R3 target speed (F3 forward)
21 R2 target speed (F2 forward)
24
22 R1 target speed (F1 forward)
23
Front Hitch position in percent
25
24 Front PTO RPM
25 Front PTO engaged
26 Rear PTO engaged
27 Rear PTO speed
28 Rear Hitch position in percent
29
Engine RPM
26
30 Constant Engine Speed
31 In this location one of the following icons will appear:
Engine Power Boost, Engine Compression Brake, or Engine Grid Heater
27
32 Ground Speed
33 Low temperature warning – for hydraulic oil
28
34 Yellow Warning Light – Warns operator that a fault exists that
needs to be serviced
35 Park break applied light. Illuminates when the tractor is
placed in "Park"
36 Not applicable in North America
37
Not applicable in North America
38 Guidance On – Guidance system has control of the tractor's
steering system
39
Red Battery – Alternator not charging the battery
40 Road Lights On – Road lights are on
41 Bright Lights On – High beam road light are on
42 Work Lights On – Work lights are on
43 Guidance Inactive – Guidance is on but not engaged
44 Hydraulic Valve Activated – Illuminates as long there is flow from at
least one remote in either direction
45 Not applicable in North America
