B.A. International Optima BA60E Instructions For Use Manual

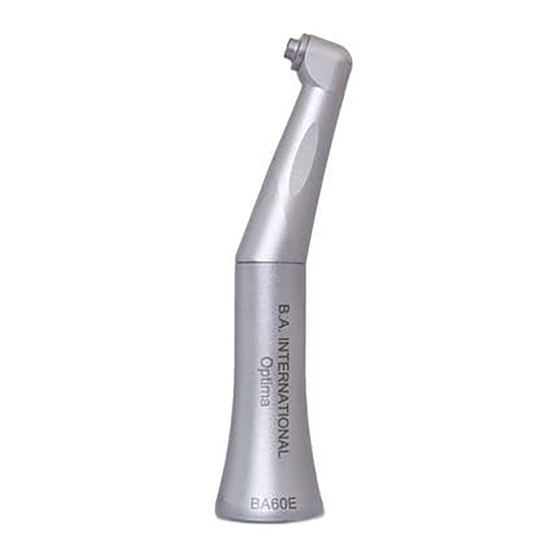

Contra-angle handpiece
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instructions for use
BA Optima
Contra-angle handpiece
BA60E (BA611075)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optima BA60E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B.A. International Optima BA60E

Summary of Contents for B.A. International Optima BA60E

  • Page 1 Instructions for use BA Optima Contra-angle handpiece BA60E (BA611075)

  • Page 2: Table Of Contents

    Contents 1. Introduction ................................4 – 6 2. Safety notes ................................7 – 8 3. Product description ................................9 Contra-angle handpiece 4. Starting operation – attachment/detachment ......................10 Contra-angle handpiece 5. Starting operation – Changing the rotary instrument ..................11 – 14 Rotary instruments, contra-angle handpieces, test run 6.
  • Page 3 7. Accessories and spare parts............................24 8. Technical data ................................. 25 – 26 9. Recycling and disposal..............................27 Explanation of warranty terms .............................28 Authorized B.A. International Ltd. service partners ......................29 Symbols ..................................30 – 31 in the instructions for use / contra-angle handpiece / on the packaging...

  • Page 4: Introduction

    1. Introduction The B.A. International Ltd. quality policy gives customer satisfaction top priority. This B.A. International Ltd. product has been designed, manufactured and tested in accordance with the requirements of current laws and standards. For your safety and the safety of your patients Please read the instructions for use before using the device for the first time.
  • Page 5 > The contra-angle handpiece must be used in accordance with these instructions for use. > The contra-angle handpiece has no components that can be repaired by the user. Modifications or repairs must only be performed by an authorized B.A. International Ltd. service partner.
  • Page 6 B.A. International Ltd. will invalidate all claims made under warranty or otherwise. Servicing In case of malfunction, please contact an authorised B.A. International Ltd. service partner immediately. Repair and maintenance work must be performed exclusively by an authorized B.A. International Ltd. service partner.

  • Page 7: Safety Notes

    2. Initial use – safety notices > Operation of the contra-angle handpiece is only permitted on dental units that conform to the IEC 60601-1 (EN 60601-1) and IEC 60601-1-2 (EN 60601-1-2) standards. > Use only the filtered, oil-free and cooled air supplied by dental compressors for drive air. >...
  • Page 8 Hygiene and maintenance before using for the first time The contra-angle handpiece is supplied in a clean condition sealed in PE foil. > Lubricate the contra-angle handpiece. > Sterilize the contra-angle handpiece. > Oil service page 20 – 21 > Sterilization page 22 –...

  • Page 9: Product Description

    3. Product description BA60E  Thread Drive    Spanner Sheath    ...

  • Page 10: Contra-Angle Handpiece

    4. Starting operation – Attachment/detachment Contra-angle handpiece Do not attach or detach the contra- angle handpiece while in operation! Fit the contra-angle handpiece on the motor.  Check that it is securely attached to the motor.  Remove the contra-angle handpiece by pulling it ...

  • Page 11: Starting Operation - Changing The Rotary Instrument

    5. Starting operation – Changing the rotary instrument Rotary instruments: > Prophy cap/brush > The rotary instruments are disposable articles and must be discarded after use. > Only use fault-free rotary instruments. Observe the manufacturer’s instructions. > Only insert the rotary instrument when the contra-angle handpiece is static. >...
  • Page 12 > The contra-angle handpiece head is equipped with a Triple Seal. > For caps/brushes please contact your dealer.
  • Page 13 BA60E contra-angle handpiece > Prophy cap/brush Locking the contra-angle handpiece drive: Insert the spanner in the drive dog. Lock the contra-angle handpiece drive.  a) Screw the cap/brush in  as far as it will go. b) Check that it is securely attached. c) Unscrew the cap/brush.
  • Page 14 Do not hold the contra-angle handpiece at eye level! > Insert the rotary instrument. > Start the contra-angle handpiece. In the event of malfunctions (e.g., vibrations, unusual noises, overheating), stop the contra-angle handpiece immediately and contact an authorized B.A. International Ltd. service partner.

  • Page 15: Hygiene And Maintenance

    6. Hygiene and maintenance Follow your country-specific directives, standards and guidelines for cleaning, disinfection and sterilization. > The contra-angle handpiece can undergo manual or machine reprocessing. > Wear protective clothing. > Remove the contra-angle handpiece from the motor. > Take out the rotary instrument. >...
  • Page 16 Pre-disinfection > If heavily soiled, clean first with disinfectant cloths. Only use disinfectants which have no protein- fixing effect.
  • Page 17 Manual cleaning inside and outside Rinse and brush off with demineralized water  (< 38°C) Remove any liquid residues (absorbent cloth,  blow dry with compressed air). Do not place the contra-angle handpiece in disinfectant solution or in an ultrasonic bath!
  • Page 18 Manual disinfection B.A. International Ltd. recommends wiping disinfection. > Use only disinfectants which do not contain chlorine and which are certified by officially recognized institutes. > Note the manufacturer’s specifications for the use of the disinfectant.
  • Page 19 Machine cleaning and disinfection (internal and external) The contra-angle handpiece can be cleaned and disinfected in a thermo washer disinfector. > Follow the manufacturer’s recommendations for devices and cleaning & rinsing agents. > Ensure that the contra-angle handpiece is completely dry, both inside and out, following thermo washer disinfection.
  • Page 20 Daily oil service With B.A. Ultimate Spray  > Follow the instructions on the oil spray can and on the packaging. Recommended maintenance cycles > After every internal cleaning without fail > Before every sterilization > After 30 minutes of use or >...
  • Page 21 Test run after oil service Point the contra-angle handpiece with the contra-  angle handpiece head downwards. Allow the contra-angle handpiece to run for  30 seconds in order to remove any excess oil. Repeat the entire hygiene and maintenance process if any dirt escapes.
  • Page 22 > Store sterile goods dust-free and dry. ISO 14457 stipulates a durability of at least 250 sterilization cycles. In the case of the B.A. International Ltd. contra-angle handpiece, we recommend you have a regular service carried out after 1,000 sterilization cycles or one year.
  • Page 23 Approved sterilization procedures Follow your country-specific directives, standards and guidelines. > Steam sterilization class B with sterilizers in accordance with EN 13060. Sterilization holding time minimum of 3 minutes at 135 °C. > Steam sterilization class S with sterilizers in accordance with EN 13060. The sterilizer manufacturer must expressly approve the sterilization of contra-angle handpieces.

  • Page 24: Accessories And Spare Parts

    7. Accessories and spare parts Use only original B.A.International Ltd. accessories and spare parts or accessories approved by B.A.International Ltd. Reference source: B.A.International Ltd. partners BAOIL B.A. Ultimate Spray 2038200 Oil spray cap with nozzle for straight and contra-angle handpieces 1957300 Spanner...

  • Page 25: Technical Data

    8. Technical data Contra-angle handpiece BA60E Gear ratio Outer diameter of the sheath (mm) Motor connection as per standard ISO 3964 (min -1 ) Maximum drive speed 5.000 – 10.000 (revolutions per minute)
  • Page 26 Temperature specifications Temperature of the contra-angle handpiece on the operator side: maximum 55 °C Temperature of the contra-angle handpiece on the patient side: maximum 50 °C Temperature of the working instrument (rotary instrument): maximum 41 °C Physical characteristics Temperature for storage and transport: -40 °C to +70 °C Humidity for storage and transport: 8% to 80% (relative), non-condensing...

  • Page 27: Recycling And Disposal

    9. Recycling and disposal Recycling B.A. International Ltd. considers that it has a special duty towards the environment. The contra-angle handpiece along with its packaging has been designed to be as environmentally friendly as possible. Disposal of contra-angle handpiece, rotary instruments >...

  • Page 28: Explanation Of Warranty Terms

    B.A. International Ltd.. Claims under warranty accompanied by proof of purchase must be sent to the vendor or to an authorized B.A. International Ltd. service partner. The provision of service under warranty extends neither the warranty period nor any other guarantee period.

  • Page 29: Authorized B.a. International Ltd. Service Partners

    Authorized B.A. International Ltd. service partners You can find your nearest B.A. International Ltd. service partner at www.bainternational.com under the service section. Alternatively please contact us at service@bainternational.com...

  • Page 30: Symbols

    Symbols in the instructions for use WARNING! ATTENTION! General explanations, Do not dispose of with (in cases where people (in cases where without risk to domestic waste could be injured) something could persons or objects be damaged) Not for re-use...
  • Page 31 Symbols on the contra-angle handpiece / on the packaging CE 0476 Catalogue number Data matrix code for from the manufacturer product identification, e. g., in the hygiene and care process Thermo washer disinfectable Serial number Sterilizable up to the Date of manufacture stated temperature...
  • Page 32 B.A. International Ltd. Unit 9, Kingthorpe Business Centre, (Manufacturer) Form-Nr. 50922 AEN Studland Road, Kingsthorpe, Rev. 000 / 19.07.2016 Northampton, NN2 6NE U.K. Subject to change Rev2016/07...
