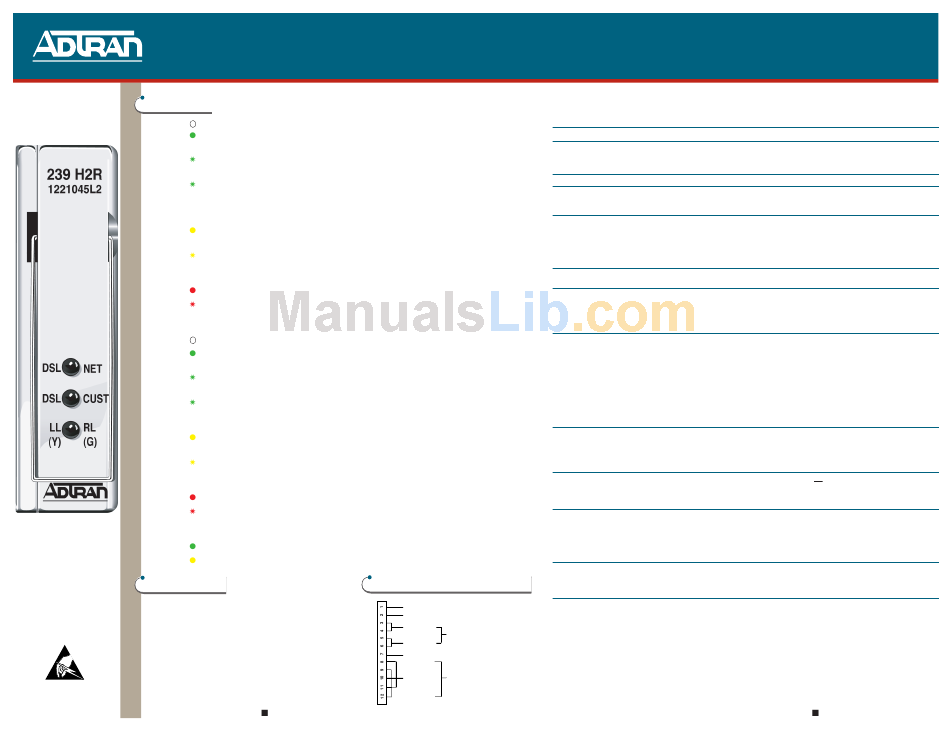

ADTRAN ENHANCED PSD 239 H2R Product Manual

239 H2R STATUS LEDs
DSL NET
CLEI: T1R6VJWD_ _
DSL CUST
LL/RL
ENHANCED PSD
The Enhanced PSD 239 H2R , P/N 1221045L2,
must be used in conjunction with the Enhanced
PSD T200 H2TU-R, P/N 1222026L9. This H2R
will not function with any other H2TU-Rs. The
Enhanced PSD T200 H2TU-R will function with
all versions of the ADTRAN H2R, but the
enhanced spectral performance will only be
achieved using the Enhanced PSD 239 H2R.
C A U T I O N C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
ENHANCED PSD 239 H2R
Off No synchronization with the H2TU-C
Solid Green Synchronized with an SNR margin greater than the user defined SNR
Margin Alarm Threshold
Fast Blinking (Blinking 3 times per second) Attempting to synchronize with the
Green H2TU-C
Slow Blinking (Blinking 1 time per second) Synchronized with an SNR margin greater
Green than the user defined SNR Margin Alarm Threshold and the pulse
attenuation is greater than the user defined Loop Attenuation Alarm
Threshold
Solid Yellow Synchronized with an SNR margin greater than 0 dB but less than the user
defined SNR Margin Alarm Threshold
Slow Blinking Synchronized with an SNR margin greater than 0 dB but less than the user
Yellow (1/sec) defined SNR Margin Alarm Threshold and the pulse attenuation is greater
than the user defined Loop Attenuation Alarm Threshold
Solid Red Synchronized with an SNR margin of 0 dB
Slow Blinking (Blinking 1 time per second) Synchronized with an SNR margin of 0 dB
Red and the pulse attenuation is greater than the user defined Loop
Attenuation Alarm Threshold
Off No synchronization with the H2TU-R
Solid Green Synchronized with an SNR margin greater than the user defined SNR
Margin Alarm Threshold
Fast Blinking (Blinking 3 times per second) Attempting to synchronize with the
Green H2TU-R
Slow Blinking (Blinking 1 time per second) Synchronized with an SNR margin greater
Green than the user defined SNR Margin Alarm Threshold and the pulse attenu
ation is greater than the user defined Loop Attenuation Alarm Threshold
Solid Yellow Synchronized with an SNR margin greater than 0 dB but less than the user
defined SNR Margin Alarm Threshold
Slow Blinking Synchronized with an SNR margin greater than 0 dB but less than the user
Yellow (1/sec) defined SNR Margin Alarm Threshold and the pulse attenuation is greater
than the user defined Loop Attenuation Alarm Threshold
Solid Red Synchronized with an SNR margin of 0 dB
Slow Blinking (Blinking 1 time per second) Synchronized with an SNR margin of 0 dB
Red and the pulse attenuation is greater than the user defined Loop
Attenuation Alarm Threshold
Green Indicates a loopback at the H2R toward the H2TU-R is active
Yellow Indicates a loopback at the H2R toward the H2TU-C is active
CARD EDGE PIN ASSIGNMENTS
For a complete Installation and Maintenance Practice faxback: (877) 457-5007, Document # 742. Please have your fax number available.
LOOPBACK AND CONTROL CODES
FUNCTION
ARM (in-band)
ARM (ESF Data Link)
Disarm (in-band)
Disarm (ESF Data Link)
H2TU-C Network Loop-Up
Loopdown w/out
disarming 2
Loopback Query
Query Loop Parameters
Loopback Time-Out
Override 1, 3
Span Power Disable
H2R1 Network Loop-up
H2TU-R Loop-up
1 Units must be armed with 11000b or FF48h before this code will work.
GND
NC 2 In order to behave like an NIU, the H2TU-R will not loop down from the network side with 9393h.
3 This code will be detected only if the units are armed AND there are NO loopbacks active.
CUSTOMER
SIDE 1
NOTE: All codes listed above must be sent for a minimum of 5 seconds in order for them to be detected and acted
NETWORK
upon.
*If NIU is enabled, then the H2TU-R can be in network loopback when the H2TU-C or H2R loop-up codes are sent.
NC
NETWORK
SIDE 2
GND
BYPASS
CUSTOMER
CODE RESPONSE
11000 (binary) H2TU-C and H2R will arm and the H2TU-R will loop-up toward the network
FF48 (hex) or 1111 1111
0100 1000 (binary) sent H2TU-C and H2R will arm and the H2TU-R will loop-up toward the network
in the Facility Data Link H2TU-R will only loop if the NIU option is enabled
11100 (binary) All units are removed from the armed state and loopbacks will be released
FF24 (hex) or 1111 1111
0010 0100 (binary) sent in All units are removed from the armed state and loopbacks will be released
the Facility Data Link
1 D3D3 (hex) or If received while in an armed state, the H2TU-C will loop toward the network,
1101 0011 1101 0011 transmit 2 seconds of AIS(all 1s) followed by 5 seconds of loop code (D3 hex)
(binary) and then 231 logic errors will be injected toward the network. The logic errors
will continue to be sent in 231 bit error bursts every 20 seconds as long as the
pattern continues to be detected by the H2TU-C. When the pattern is removed,
the unit will remain in loopback.
9393 (hex) or Automatically releases without disarming any H2TU-C and H2R that may be in
1001 0011 1001 0011 (binary) loopback toward the network.
1 D5D5 (hex) or Allows one to query the devices at any given time to determine whether any
1101 0101 1101 0101 (binary) units are in loopback. If D5 hex is received while in a loopback state, the unit in
question will transmit the logic error count toward the network using the same
methodology as identified in each of the loop-up descriptions (231 BE = H2TU-C,
10 BE = H2R1, 200 BE = H2R2 and 20 BE = H2TU-R).
DBDB If the units are armed, and the H2TU-C is in network loopback, errors are
(1101 1011 1101 1011) injected into the DSX-1 signal upon detection of the query loop parameters
pattern. As long as a pattern continues to be sent, errors are injected again
every 20 seconds. The number of errors injected each time depends on the
current status of signal quality and pulse attenuation parameters on each
loop. 111 errors are injected if all HDSL receiver [points (H2TU-C LP1/LP2,
H2R #1 NET LP1/LP2, H2R #1 CST LP1/LP2, H2R #2 NET LP1/LP2, H2R #2 CST
LP1/LP2, and H2TU-R LP1/LP2) indicate pulse attenuation is 30 dB or lower and
signal quality (margin) is 6 dB or higher. 11 errors at a time are injected if any
of the 12 receiver points indicate pulse attenuation is greater than 30 dB
and/or signal quality (margin) is less than 6 dB.
D5D6 (hex) or If received during the armed state and prior to loopback initiation, the loopback
1101 0101 1101 0110 timeout override feature will automatically disable loopback timeout, i.e., the
(binary) loopback will not timeout after the 120 minute default period. As long as the
units remain armed, the timeout will remain disabled. When the units are
disarmed, the loopback timeout will once again return to the default value.
1, 3 6767 (hex) or If received during an armed state (must not be in loopback), the H2TU-C will remove
0110 0111 0110 0111 (binary) span power toward the line. As long as the pattern is received, the span power will
remain disabled. Once the pattern is no longer received, the H2TU-C will reactivate
span power. All units will then re-train and return to the disarmed state.
1 C741 If an H2R is present and units armed, the H2R will loop up toward network, 2
(1100 0111 0100 0001) seconds of AIS (all 1s) will be sent, 5 seconds of data will pass, and then 10 bit
errors will be injected into the DSX-1 signal. As long as the pattern continues to
be sent, 10 errors will be injected every 20 seconds. When the pattern is
removed, the unit will remain in loopback. If the pattern is reinstated, the
injection of 10 bit errors will resume at 20-second intervals.
1 C742 ESF facility Datalink: ESF only; when sent from the network, an H2TU-R
(1100 0111 0100 0010) network loopback is activated and a 20-bit error confirmation is sent. When
sent from the customer, an H2TU-R customer loopback is activated with a
20-bit error confirmation.
