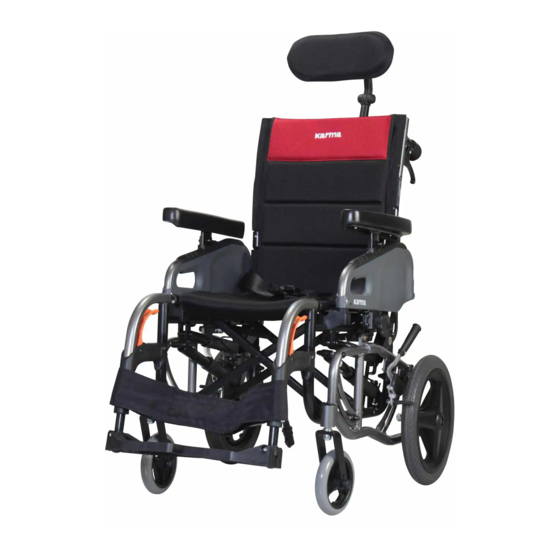

Karma VIP2 Series Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual Wheelchair Owner's Manual
VIP2 Series
(VIP 2-T/VIP2-TR)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Karma VIP2 Series

Summary of Contents for Karma VIP2 Series

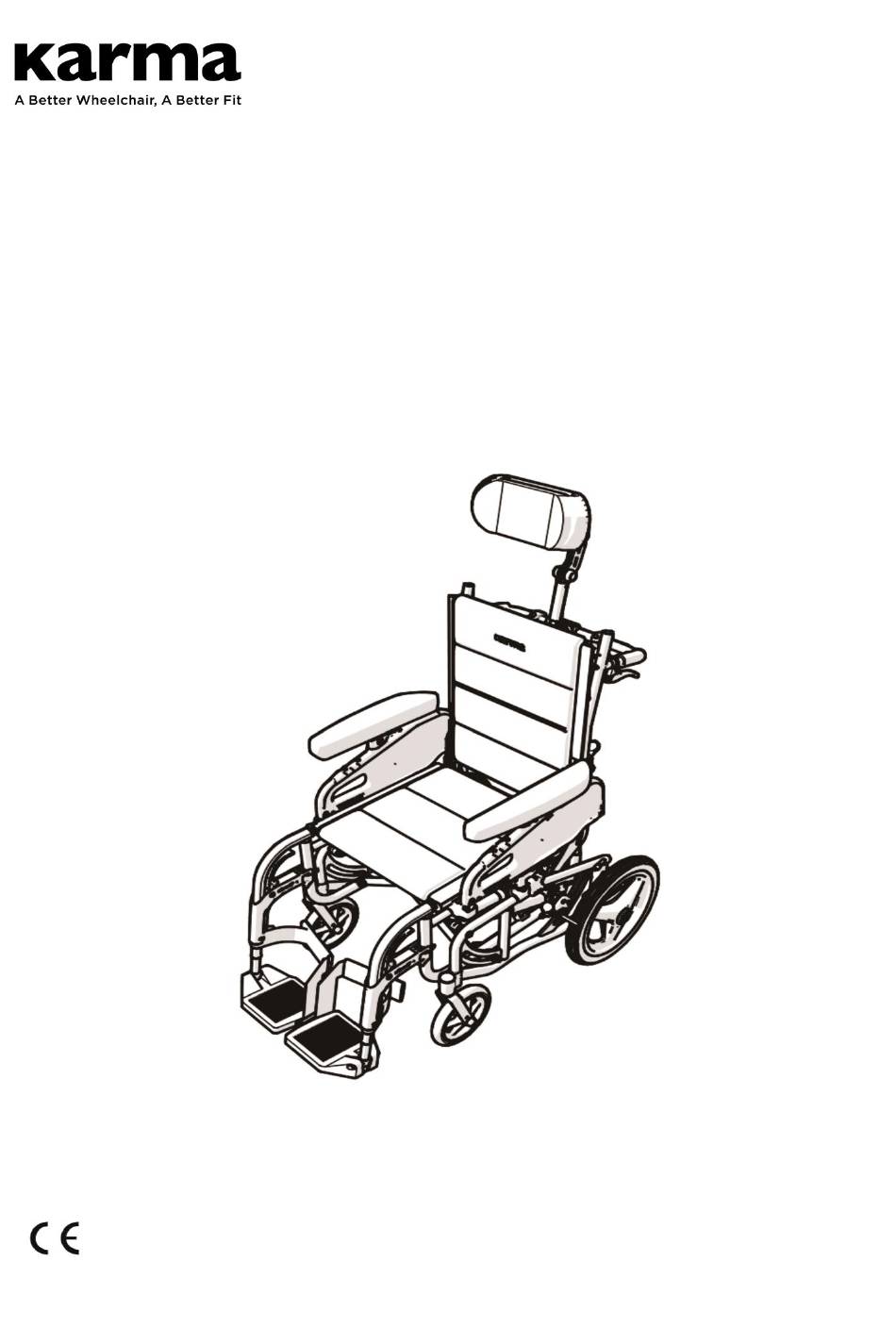

  • Page 1 Manual Wheelchair Owner's Manual VIP2 Series (VIP 2-T/VIP2-TR)
  • Page 3 GENERAL WARNING ● DO maintain your chair well, in particular check the tire pressure since this affects the efficiency of the brakes. To know the correct tire pressure, please see the walls of the tires. ● DO make sure both brakes are applied before getting in or out of the chair. ●...
  • Page 4 YOU AND YOUR KARMA SERVICE PROVIDER ● No tools are required for assembly. Your wheelchair should be assembled by your authorized KARMA dealer. Your authorized KARMA dealer is also your service provider. Unauthorized repairs, upgrades and add-ons will void your warranty. Anything wheelchair related that requires tools should be done by your authorized KARMA service provider.
  • Page 5 If you cannot contact your dealer, please contact another authorized KARMA dealer for service. If all else fails, contact KARMA directly via our website or give us a call and we can refer you to your new service provider.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS 1. PREFACE ........................1 2. SAFETY ........................1 2.1 Before Using ..................... 1 2.2 While Moving ....................1 2.3 General ........................ 4 2.4 Upholstery ......................4 2.5 Anti-Tippers ...................... 4 2.6 Maximum User Weight Limit ..............4 2.7 Avoid General Misuse..................
  • Page 7 4.12 Rear Wheel Disassembly ..............24 4.13 Rear Wheel Assembly ................24 4.14 Transferring In ..................... 25 4.15 Transferring Out ..................25 4.16 Going Up or Down Steps/Stairs ............27 4.17 General Use ....................27 4.18 Storage ......................29 4.19 Transportation .................... 29 5.

  • Page 8: Preface

    1.2 This owner's manual includes operation, unfolding/ folding instructions and how to prevent possible accidents for the aspects of the wheelchair. 1.3 This owner's manual is written for KARMA wheelchair: VIP2 Series. 1.4 The symbols used in this manual are explained below. Pay special attention to the parts marked with these symbols.
  • Page 9 your hands on the push rims will allow you to maintain the maximum balance. DON'T try to force yourself over an obstacle and use the sides of a doorway to pull yourself through a passageway. 2.2.2 Leaning and Standing DO NOT lean over the side or stand on the wheelchair since such an action may cause you to lose balance and fall.
  • Page 10 2.2.4 Kerbs 2.2.4.1. Whenever possible, get help from an assistant/attendant. If you have assistance, make sure that your chair is equipped with push handle. 2.2.4.2. DO avoid huge impacts when descending a kerb. A huge impact could probably damage the wheelchair. 2.2.4.3.

  • Page 11: General

    2.3.2 Never stand on the footplates when getting in or out of the wheelchair 2.3.3 Never carry more than one passenger. KARMA wheelchairs are limited to one user. 2.3.4 Use caution to assure your clothing doesn't get tangled with the wheels.

  • Page 12: Avoid General Misuse

    2.7 Avoid General Misuse Please note that our "Owner's Manual" contains a number of cautions -- any vehicle can cause injury if misused -- use within our guidelines and with reasonable care and your safety will be increased. Your wheelchair will give years of safe use if used sensibly and carefully.

  • Page 13: Labeling

    2.8 Labeling Please carefully read all the labeling on the wheelchair before driving it. Do not remove them. Protect them for future reference.

  • Page 14: Intended Use & Parts

    3. INTENDED USE & PARTS 3.1 Intended Use 3.1.1 The VIP 2 Series is a self-propelled or transit wheelchair. That is, it can either be propelled by the user (self-propelled) or by an attendant (transit). 3.1.2 It is designed to be used indoors, and with certain restrictions outdoor. 3.1.3 It is suitable for a single user up to 115 kg in weight.

  • Page 15: Vip 2 Parts Description

    3.2 VIP 2 Parts Description 1. Push Handle 8. Caster 2. Attendant Brake 9. Height-adjustable Armrest 3. Backrest Upholstery 10. Seat Upholstery 4. Side Panel 11. Swing-Away & Detachable Footrest 5. Manual Parking Brake 12. Cross Bar 6. Rear Wheel 13.
  • Page 16 1. Push Handle 8. Caster 2. Attendant Brake 9. Height-adjustable Armrest 3. Backrest Upholstery 10. Seat Upholstery 4. Side Panel 11. Elevating Legrest Assembly 5. Manual Parking Brake 12. Cross Bar 6. Rear Wheel 13. Calf Pad 7. Outside Frame 14.
  • Page 17 1. Headrest Pad 5. Tilt Release Handle 2. Headrest Assembly 6. Anti-tipper 3. Recline Release Handle 7. Backrest tube joint 4. Lateral Supporter Joint CAUTION: ● Standard equipments are subject to change without notice.

  • Page 18: Operation

    4.1.2.4 Adjust the footplate to the appropriate length, and insert the bolt and the nut. (See Figure 4.4 and 4.5) 4.1.2.5 Use the #4 Allen Key and wrench provided by KARMA to tighten the bolt and the nut. (See Figure 4.6) Figure 4.1...
  • Page 19 Table 4.1 Swing-Away & Detachable Footrest Assembly Part List Part Quantity Swing-Away & Detachable Footrest Tube-in-Centre Footplate M6 Bolt M6 Nut Calf Strap 4.1.3 Unfolding While unfolding the VIP 2, follow these instructions as listed below: 4.1.3.1 Stand at the side of the wheelchair as you prefer, hold the armrests and pull outwards.
  • Page 20 Figure 4.7 Figure 4.8 Figure 4.9 Figure 4.10 Figure 4.11 Figure 4.12 Figure 4.13 CAUTION: ● While completing step 4.1.3.4, never put your fingers around the sides or under the wheelchair as they can be trapped between the seat and the frame. (See the figure at the right.) ●...

  • Page 21: Recline And Tilt Operation

    4.16) 4.1.4.3 Release the backrest tube joint and fold them downward. (See Figure 4.17) 4.1.4.4 Folding is now completed. Figure 4.14 Figure 4.15 Figure 4.16 Figure 4.17 CAUTION: ● Be careful not to get your fingers caught when folding the wheelchair. 4.2 Recline and Tilt operation Please follow below instructions to recline and tilt operation 4.2.1 Apply the brakes.

  • Page 22: Headrest Adjustment

    Figure 4.21) CAUTION: ● Recline angle adjusting range is 0 ~ 30 degrees. 4.2.6 While releasing tilt handle first and hold, then pull lateral support bar backward and downward, tilt operation can be achieved. (See Figure 4.22) Figure 4.21 Figure 4.22 CAUTION: ●...

  • Page 23: Detachable Armrest Adjustment

    Please follow below instruction to adjust headrest 4.3.1 Use #3 Allen key to loosen the hex socket head screw on fixation ring, adjust the fixation height of rod and lateral direction angle. (See Figure 4.25) 4.3.2 Assemble the headrest assembly to clamp ring by pin-hole positioning, tighten by using the lever of ratchet bolt (See Figure 4.26) 4.3.3 Remove rubber cap and use #5 Allen key to loosen screws, can adjust headrest linkages.
  • Page 24 Figure 4.32 and 4.33) 4.4.1.2 Remove the screw and adjust the height as desired, then re-tighten screw. Figure 4.32 Figure 4.33 Figure 4.34 4.4.2 Detachable armrest bracket adjustment 4.4.2.1 Use #4 Allen Key and #10 wrench to adjust the tightness between the bracket and armrest tube (See Figure 4.34) 4.4.3 Detachable Armrest 4.4.3.1 Remove armrest...

  • Page 25: Footplate Height Adjustment

    CAUTION: ● The adjustment is in increments of 2 cm (4 positions), and the range of adjustment is 6 cm. ● Do not sit on the armrest in any circumstances. 4.5 Footplate Height Adjustment To adjust the footplate height, follow the instruction as listed below: 4.5.1 Use #4 Allen key and #10 wrench to loosen the bolts at the bottom part of the footrest.

  • Page 26: Elevating And Swing-Away Footrest

    (See Figure 4.45) 4.6.4 When the footrest is swung to the side, it can be detached by lifting it up. (See Figure 4.46) Figure 4.43 Figure 4.44 Figure 4.45 Figure 4.46 4.7 Elevating and Swing-Away Footrest 4.7.1 Flip up the footplates. (See Figure 4.47) 4.7.2 Hold the release lever and swing the footrest to the side.

  • Page 27: Backrest Angle Adjustment (Tilt Version Only)

    4-53, 4-54）。 圖 4-51 圖 4-49 圖 4-50 圖 4-52 圖 4-53 圖 4-54 4.8 Backrest Angle Adjustment (Tilt version only) To adjust the backrest angle, follow the instruction as listed below: 4.8.1 Use #4 Allen key and #10 wrench to loosen bolt/nut on backrest bracket.

  • Page 28: Pelvic Belt

    4.9 Pelvic belt Please follow the instructions below to use the pelvic belt for your safety. 4.9.1 How to Operate It 4.9.1.1 When you sit on the wheelchair, fasten the pelvic belt. (See Figure 4.57) 4.9.1.2 Adjust the belt and make it fit your body for comfort and safety. 4.9.1.3 When you don't use it, please fasten the belt to avoid the belt dropping into the rear wheels during motion.

  • Page 29: Manual Parking Brake

    Figure 4.59 Figure 4.60 4.9.3 Maintenance The pelvic belt is made from 100% polyester fibers and the clasp is made from plastic. It does not require any maintenance but should be inspected every month to ensure that the edges are not frayed and weekly to make sure that it correctly fits the user.

  • Page 30: Anti-Tippers

    4.10.5 To adjust the interval between the tires and the brakes, first loosen the bolts and set the appropriate gap. Then re-tighten the bolts. (See Figure 4.62) Figure 4.61 Figure 4.62 CAUTION: ● After each adjustment of the rear wheels, check the manual brake gap and re-adjust if necessary.

  • Page 31: Rear Wheel Disassembly

    4.12 Rear Wheel Disassembly Quick release rear wheels are optional. If your wheelchair is equipped with quick release rear wheels, please follow these instructions as listed below. 4.12.1 Ensure that the brake is in the unlocked position first. 4.12.2 Support the weight of the chair with one hand by holding the push handle.

  • Page 32: Transferring In

    CAUTION: ● You must make sure that the axle is fully located in the wheelchair bracket and that the ball bearings are fully open and have positively attached the wheel in the frame. ● The rear wheel can be mounted at different positions on the frame to alter the seat height and overall stability of the chair.
  • Page 33 up and have strong upper body. 4.15.2.1 Make sure that the place where you're moving to is as close to you as possible. 4.15.2.2 Move the wheelchair backwards so that the casters are pointing forwards and are in line with the rear wheels. 4.15.2.3 Ensure that, where possible, the rear of the chair is against a wall or, if not, it must be firmly held by an attendant.

  • Page 34: Going Up Or Down Steps/Stairs

    Figure 4.66 Figure 4.67 4.16 Going Up or Down Steps/Stairs 4.16.1 Please note: avoid flights of steps particularly if no extra help is available. Use ramps or lifts wherever possible. 4.16.2 Two attendants are necessary, each capable of carrying at least half of the combined weight of the person and the wheelchair.
  • Page 35 4.17.4 Always avoid steep or uneven surfaces because the chair may tip over. (See Figure 4.71) 4.17.5 Always avoid soft surfaces because the casters may get bogged down. (See Figure 4.72) 4.17.6 Always be careful not to go too fast or turn too quickly and try to maintain a smooth and steady ride.

  • Page 36: Storage

    The VIP 2 was tested with a four point webbing system. For further information on the use of wheelchair restraints please refer to the manufacturer's user guide. KARMA always recommends that the user be transferred into the seat of the vehicle with a safety belt or harness while in a transport.
  • Page 37 right. 4.19.1.3 An occupant restraint system using both a pelvis and harness must also be fastened to the transport vehicle to insure user safety. Again, please refer to the restraint system's instructions. 4.19.1.4The attendant / transporter must double-check all fastening points for proper connection and tightness to assure the wheelchair user's safety.
  • Page 38 Fitting the Front Restraint Fitting the Rear Restraint 4.19.4 Fitting Seat Belt 4.19.4.1 Fasten the 3 point safety belt around the user. 4.19.4.2 The occupied wheelchair should be located in a forward-facing configuration, with the parking brake applied. 4.19.4.3 Pelvic restraints should make full contact across the front of the body near the junction of the thigh and pelvis as pictured below (correct seat belt position).

  • Page 39: Inspection And Maintenance

    5.1.8 A qualified technician can be found at an authorized distributor/dealer. CAUTION: ● Visit a KARMA wheelchair dealer for inspection and maintenance if you find anything abnormal. 5.2 Regular Maintenance Record 5.2.1 In order to make sure your wheelchair is in good condition, visit your KARMA wheelchair dealer regularly for maintenance and keep records accordingly every six months after purchasing.
  • Page 40 WARNING: ● Even if you don't use the vehicle for a long time, the wheelchair should still be maintained regularly. You should clean your wheelchair regularly. Item Weekly Monthly GENERAL ● Wheelchair rolls straight (no excessive drag or pull to Ⅴ...
  • Page 41 Item Weekly Monthly ● Inspect for any cracked, bent or broken spokes. Ⅴ ARMRESTS ● Make sure the armrest detaches properly. Ⅴ FOOTRESTS ● Inspect the footplate height adjustment bolts are Ⅴ securely tightened. ● Inspect the swing-away footrest release lever for Ⅴ...

  • Page 42: Accessories

    WARNING: ● Anti-tippers MUST be equipped always when user sit on chair. 6. ACCESSORIES Optional accessories are as below; please contact your dealer for the purchase of these items. Adjustable Curved Headrest Elevating and Swing-Away Footrest Angle Adjustable Footplate CAUTION: ●...

  • Page 43: Troubleshooting

    7. TROUBLESHOOTING Trouble or Problems with Your Wheelchair You can inspect the following before taking your wheelchair to a KARMA wheelchair dealer. Problem Checking Points and Corrective Action 1. Wheelchair Veers Right/Left ● Check tires for correct and equal pressure.
  • Page 44 Width Height Note : *Karma reserves the right to modify information herein without further notice. *Max. single part weight/total weight/overall dimensions/overall collapsed dimensions of the above specification are based on 14” rear wheel/seat height 490mm/backrest height 490mm model only for example.
  • Page 45 Width Height Note : *Karma reserves the right to modify information herein without further notice. *Max. single part weight/total weight/overall dimensions/overall collapsed dimensions of the above specification are based on 14” rear wheel/seat height 490mm/backrest height 490mm model only for example.

  • Page 46: Cleaning & Recycling

    CAUTION ● Please don't travel across a slope (in any direction) greater than 7 degrees. ● DON'T stand on the footplate directly. Static Stability Test Result VIP 2 Test Requirement (According to ISO 7176-1:1999) Min. Forward 10° Backward 16°(with Anti-tipper) Sideways 10°...

  • Page 47: Recycling

    9.1.2 Upholstery 9.1.2.1 When cleaning the upholstery, use warm water and a mild soap. 9.1.2.2 Upholstery cleaner/foam can also be used. Other cleaning solvents are excluded. 9.2 Recycling A post-consumer recycling plan should follow the Environmental Protection Administration's regulations. The items listed below are for reference only as local laws and regulations may vary.
  • Page 48 (a repair of this kind will hereafter be called warranty repair). 10.2.1.2 Warranty repairs can be performed by authorized KARMA wheelchair dealers only. 10.2.1.3 KARMA is not responsible for the transportation costs for repair and replacement. 10.2.1.4 Replaced parts will be the property of KARMA.
  • Page 49 10.2.6.1 Please contact your local dealer. 10.2.7 Transfer of Warranty Rights 10.2.7.1 If you purchase a second-hand KARMA wheelchair while it is still within the warranty period, bring this owner's manual and the wheelchair to the dealer where the wheelchair was purchased for registration.
  • Page 50 Dealer's Data Name of the Store: Phone Number and Address: If you have any suggestions on how to improve our products, please don't hesitate to contact your local dealer to let us know what you think of your wheelchair. Thank you and enjoy.
