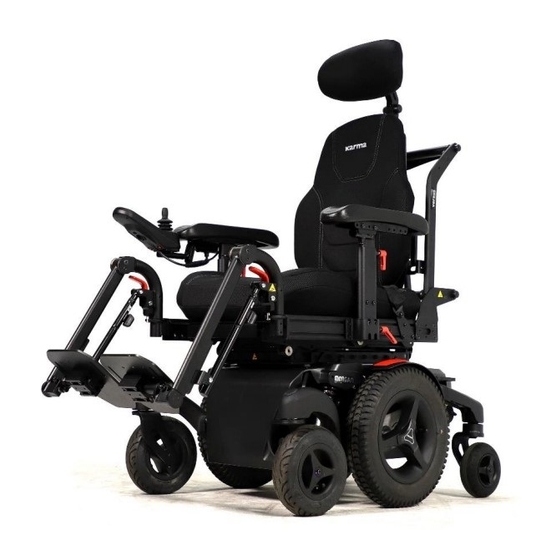

Karma Morgan M MGNM-SLN User Manual
  1. Manuals
  2. Brands
  3. Karma Manuals
  4. Wheelchair
  5. Morgan M MGNM-SLN
  6. User manual

Karma Morgan M MGNM-SLN User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

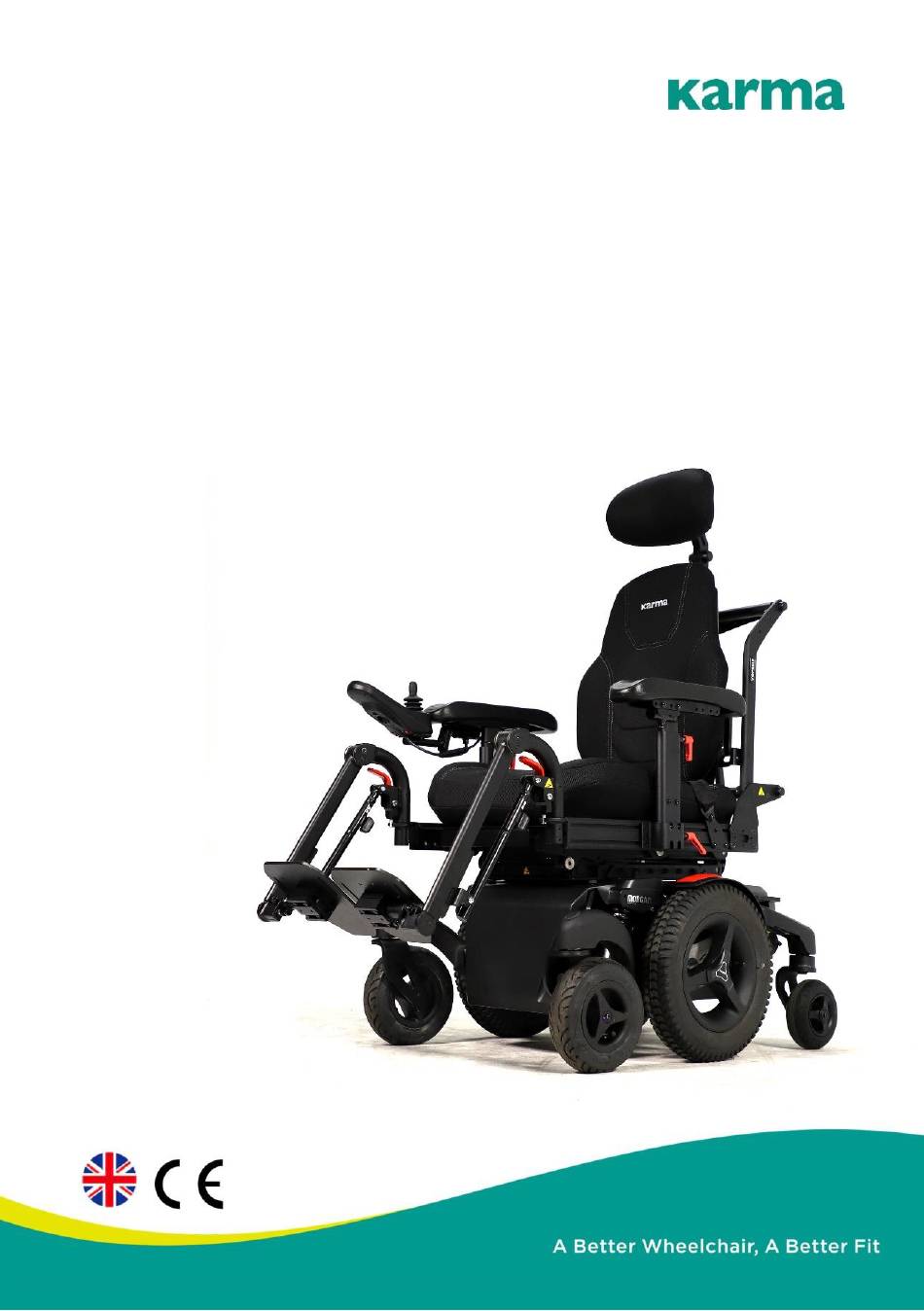

User manual
Morgan M (MGNM)
□ Sling Seat (SLN)
■ Versus Seat (VRS)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Morgan M MGNM-SLN and is the answer not in the manual?

Questions and answers

Related Manuals for Karma Morgan M MGNM-SLN

Summary of Contents for Karma Morgan M MGNM-SLN

  • Page 1 User manual Morgan M (MGNM) □ Sling Seat (SLN) ■ Versus Seat (VRS)
  • Page 2 1. Index 1. Index _______________________________________________________ 2 2. How to contact Karma _________________________________________ 1 3. Declaration of conformity _______________________________________ 2 4. Introduction__________________________________________________ 4 4.1 Chassis number _________________________________________ 4 5. Used symbols for warning, caution and note ________________________ 6 6. Warranty ____________________________________________________ 7 7.
  • Page 3 10.2.8 Legrest ___________________________________________ 22 10.2.9 Powered legrest adjustment (Optional) __________________ 23 10.2.10 Upholstered headrest (Optional) ______________________ 24 10.2.11 Hip support (Optional) ______________________________ 25 10.2.12 Positioning belt (optional) ___________________________ 25 10.3 The controls __________________________________________ 26 10.3.1 Side steering control ________________________________ 26 10.3.2 Tray table control (Optional) __________________________ 26 10.3.3 Attendant control (Optional)___________________________ 27 10.4 Other optional accessories _______________________________ 27...
  • Page 4 12 Control panel _______________________________________________ 44 12.1 Charging socket _______________________________________ 44 12.2 Joystick ______________________________________________ 44 12.3 Display ______________________________________________ 45 12.3.1 Battery indicator (top bar) ____________________________ 45 12.3.2 Focus light (top bar) _________________________________ 45 12.3.3 Profile name (main screen) ___________________________ 46 12.3.4 Clock (main screen) _________________________________ 46 12.3.5 Speed display (main screen) __________________________ 46 12.3.6 Speed bar (main screen) _____________________________ 47 12.3.7 Inhibit (main screen) ________________________________ 47...
  • Page 5 12.5.1 External profile switch jack ___________________________ 54 12.5.2 External on/off switch jack ____________________________ 54 12.6 R-net Connectors ______________________________________ 54 12.7 Joystick ______________________________________________ 55 13 Electric system _____________________________________________ 57 13.1 Batteries _____________________________________________ 57 13.2 Main Fuse ____________________________________________ 58 14 Using the wheelchair _________________________________________ 59 14.1 General warnings and advices ____________________________ 59 14.2 Use in combination with other products _____________________ 60 14.3 Hot and cold surfaces ___________________________________ 60...
  • Page 6 18.2 Charging socket _______________________________________ 75 18.3 Disposal of broken or worn out batteries ____________________ 77 19 Transport of the wheelchair____________________________________ 78 19.1 4-point Tie-down belts __________________________________ 78 19.1.1 Safety belt: ________________________________________ 80 19.1.2 Backrest, legrest and headrest settings during transportation 84 19.2 Transportation on an airplane ____________________________ 85 19.2.1.
  • Page 7 20.8 Battery replacement ___________________________________ 106 20.8.1. Replacing the batteries (Front side) ___________________ 107 20.8.2 Replacing the batteries (Rear side) ____________________ 109 20.8.3 Disposal of the batteries ____________________________ 111 21 Refurbishment and re-use of the product. _______________________ 112 22 Disposal of the product ______________________________________ 112 23 Trouble shooting ___________________________________________ 113 23.1 Diagnostics R-Net LCD ________________________________ 114 24 Technical specifications _____________________________________ 115...
  • Page 8 Chia-Yi 621 Taiwan www.karmamedical.com European representative: Karma Mobility S.L. C/ Periodista Francisco Carantoña Dubert, 23 Bajo 33209 Gijón - Asturias (Spain) phone: +34 984 390 907 karma@karmamobility.es Produced and published by Karma Medical, Taiwan Technical changes and print errors prohibited.
  • Page 9 3. Declaration of conformity...
  • Page 11 Karma runs the policy of continuously product improvement. Therefore, pictures of products or options as shown in this manual might be different from what you see in the product. Karma reserves the right to make changes to the product without prior notice.
  • Page 12 The used symbols on the chassis plate are explained below: describes the model and type of the product. stands for indoor- and outdoor use (Class B). stands for the date of production. this icon stands for the maximum driving speed. this icon stands for the maximum slope to drive on.
  • Page 13 5. Used symbols for warning, caution and note General warnings are indicated by a symbol. There are three levels of warnings: 1. Warning If you see this sign, please use extreme caution where this symbol appears. Neglecting these warnings can lead to personal or material damage.
  • Page 14 6. Warranty Karma Medical supplies a warranty of frame for a period of 5 years and electrical system (controller, motor, charger, actuator and PCB) for a period of 1 year after delivery to the customer. Your local supplier will carry out this warranty.
  • Page 15 7. Intended use / intended user The Morgan M Versus (MGNM-VRS) powered wheelchair is meant to provide mobility to persons who are not able to walk, stand or use a manual wheelchair, but who are very well able to control and use the interface of a powered wheelchair.
  • Page 16 9. Tire pressure The Morgan M Versus (MGNM-VRS) uses solid or air-filled tires in the front and middle and solid tires in the rear. The choice of having solid or air-filled tires is made by the user during the ordering of the wheelchair. In order to prevent tire damage and to preserve the performance of the wheelchair, the tire pressure must be checked at least on a monthly basis.
  • Page 17 Front suspension Rear suspension 10.1.2 Lights and reflectors (Optional) The chassis has very strong and bright LED lights to make sure you can have a safe drive in the dark. The red reflectors in the rear also make you visible for other people as well.
  • Page 18 10.1.3 Transport fixation loops Fixation loops in the front Fixation loops in the rear The fixation loops are marked with this sign: Further information about transportation of the wheelchair will find in chapter "transportation". 10.1.4 Battery compartments The batteries are mounted as low as possible in the center into the chassis, to provide an optimal center point of gravity.
  • Page 19 Front battery box When pulling the battery out of the box, do mind to not overstretch the cables. This might lead to technical failure. Before reconnecting the battery, read the wiring instructions on the inside of the battery cover.
  • Page 20 10.1.5 Main fuse The chassis contains a circuit breaker which is located at the front of the chassis. The circuit breaker protects the whole electrical system of the wheelchair. This circuit breaker will only blow if there is a serious problem on the wheelchair.
  • Page 21 movement, not only in horizontal area, but also in the vertical area. The seat lift can be stopped at any height and will be automatically locked in position. 300mm Whilst lifting the seat, the driving speed will always automatically be reduced to gain maximum stability.
  • Page 22 10.2 Seat The seating system is designed to optimize the seating comfort to the user. It can be adjusted in seat depth and seat width. A rail on each side provides mounting point for accessories like hip supports or safety belts. The seat pan is flat so other seating cushion can be fitted on to the seat as well.
  • Page 23 10.2.2 Seat cushion The padded cushion is available in various sizes and offers optimal comfort and support. The covers are available in 3D mesh or water- repellent substance. The cushion is fixed with clips on the seat frame. Using other cushions with different thickness might influence the biomechanical function of the legrest and/or backrest.
  • Page 24 10.2.4 Seat tilt (Optional) The seat tilt can be used to release pressure. The tilting angle is from 0 to 45°. The tilting function can also be used when driving down a slope for compensating the negative seat angle. This provides a more stable seat position and safe driving.
  • Page 25 10.2.5 Upholstered backrest The upholstered backrest is available in different sizes in lengths and widths to give the users maximum support and comfort. The cloth is available in 3D mesh or breathing but waterproof cloth. 10.2.6 Backrest Tool Adjustable recline backrest The backrest angle can be set by changing the length of the threaded rod of the backrest tube.
  • Page 26 Manual stepless recline backrest (Optional) The mechanical adjustable recline backrest uses a stepless telescopic tube with quick release and lock lever action. The mechanical recline setting has the same dynamic angle setting as the power recline system. Power recline backrest (Optional) The power recline backrest can be set from 85°...
  • Page 27 If the reclined backrest position is activated over a certain angle, the driving speed will be reduced. This is to reduce the risk of danger whilst driving at high speed. When reclining, always check if there are no obstructions close to the wheelchair.
  • Page 28 Detachable armrest Position adjustable Height adjustable Depth adjustable Flip-up armrest (Optional) The flip-up armrest is adjustable in height, depth and can hold different sizes of armpad. The design is made to be flipped up backwards for easy side transfer in and out of the wheelchair. Its open design allows to mount additional hip supports on the seat frame as well.
  • Page 29 10.2.8 Legrest The separate legrest uses left and right mounted tubes on which the footplates are mounted. The footplates come in different sizes. The legrest can be adjusted in length (left and right side are independent), knee angle and footplate angle (left and right side are independent). The footplates can be flipped up sideways for easy transfer.
  • Page 30 10.2.9 Powered legrest adjustment (Optional) With a powered legrest the knee angle can be set from 105° up to a nearly fully stretched legrest angle. The biomechanical movement (turning point at knee joint height) ensures the lower leg length will always be the same. The legrest can swing sideway after unlocking to enable a barrier-free entrance or exit from the seat.
  • Page 31 10.2.10 Upholstered headrest (Optional) Several headrest might be available for the Versus seat. The upholstered headrest is adjustable in height, depth and angle to the requirements of the user. It can be taken off without losing its settings. As an accessory, a rail can be mounted to move the headrest out of center.
  • Page 32 10.2.11 Hip support (Optional) The quick-release hip supports offer side support to your hips or upper legs. The support is adjustable in height, depth, width and angle. The soft pads offer good and comfortable support. 10.2.12 Positioning belt (optional) For positioning, several types of belts are available. Positioning belts shall not be used as a car safety belt.
  • Page 33 10.3 The controls 10.3.1 Side steering control Side steering control Side steering control, swing-away This wheelchair has a side steering control unit, which is either mounted on the left or right armrest. The joystick module can be mounted on a fixed bracket or on a swing-away mechanism (optional).
  • Page 34 10.3.3 Attendant control (Optional) Attendant control The attendant control enables the user to have a handle with a build-in joystick module. The attendant control can be arranged on the left or right side of the back plate. 10.4 Other optional accessories Item Figure Introduction...
  • Page 35 U-shaped, or curved to the user’s preference. Headrest The arrangement of the options / accessories should take the motion of wheel and cables into consideration, it is suggested to set up those options / accessories by an authorized Karma supplier.
  • Page 36 11. First setup Before using, the wheelchair needs to be adjusted and set up for the user. In this chapter we will explain all the setup which needs to be done before the first drive. Before using the wheelchair, it is vital to make the right setup for the user. A non-proper setup of the wheelchair might lead to uncontrolled driving which can result in personal or material damage.
  • Page 37 Measure spring setting between left and right sides To soft settings of the spring will result in a very spongy behavior of the chassis. The control of the wheelchair will be bad. Avoid soft settings. If the springs are uneven set, it might lead to strange driving behavior of the wheelchair.
  • Page 38 11.2 Seat adjustments Before using the wheelchair, the seat must be set to the right size for the user. Most of the time this will be done by your local supplier, together with your therapist. A well-adjusted seat will give you optimum support and comfort. 11.2.1 Seat depth To adjust the seat depth, we move the backrest frame forward or backward.
  • Page 39 11.2.2 Seat width To change the seat width, each left and right side seat panels can be slide in and out to the required width. Please notice the following steps to change the seat width: Step 1: Take off the side seat panels by loosening the top bolts (B) first. Step2: Loosen the bolts (C) of the center cover and remove it.
  • Page 40 Top cover and bolts to loosen Bottom cover and bolts to loosen Step 4: Now pull the frame sideways out. Each step per hole represent 12.5mm on each side, so it will be 25 mm in total. If you want to increase the width in total 50 mm, you need to move two steps on both left and right side.
  • Page 41 11.2.3 Setting of the Lectus backrest: After we have set the seat frame width, we now will set the backrest width. Please notice the following steps to change: Step 1: We take the backrest mounting frame and we adjust the both side brackets into the right width setting to fit on the backrest frame.
  • Page 42 11.2.4 Armrest height The armrest height can be adjusted up and down independently. To set the right armrest height, follow the next steps: T-bar armrest Step 1: Loosen the lever knob (A) and lift the T-bar armrest into the right position.
  • Page 43 11.2.5 Armrest depth The armrest can be stepless adjusted in depth. To set the right armrest depth, follow the next steps: T-bar armrest Step 1: Loosen the four bolts (C) using a 4mm Allan Key for armrest position. Step 2: Loosen the two bolts (D) using a 3mm Allan Key for armrest depth. Step 3: Move the T-bar armrest or armpad into the required position.
  • Page 44 11.2.6 Legrest length The legrest length is adjustable. Both left and right length is separately adjustable. To set the right length, follow the next steps: Step 1: Slowly loosen the legrest fixation bolt (A), using a 4mm Allan key. Just enough to feel the footplate is starting to move.
  • Page 45 11.2.7 Legrest angle The legrest angle can be mechanically set following the next steps: Step 1: To adjust and set the legrest angle, you hold the legrest with one hand and unlock the setting lever (L) with the other hand and push the legrest sideways.
  • Page 46 Step 2: Move the footplate to the required angle. Step 3: Re-tighten all the fixation bolts on the footplate again (F). 11.2.9 Hip support settings The optional hip supports are fully stepless adjustable in position, height, depth and angle. It can be easily taken off the chair using a quick-release mechanism, without losing its settings.
  • Page 47 11.2.9.3 Setting the angle and depth position of the hip support To set the angle and depth of the hip support, take the following steps: Step 1: Remove the rubber covers (P) of the friction joints. Step 2: Loosen the friction bolts (Q) so the padding can be moved. Step 3: Tighten the frictions bolts.
  • Page 48 11.3 Headrest settings The optional headrest is available in different shapes. The way of adjusting however is all the same. 11.3.1 Height angle and depth adjustment To set the height, depth, and angle, take the following steps: Step 1: Remove the rubber covers (D) from the headrest joints. Step 2: Loosen the bolts (E) until the headrest start to move.
  • Page 49 11.4 Positioning belt The positioning belt can be mounted in two different ways: 1) In the predestined mounting holes on the backrest hinge. 2) Mounted on the seat rail, this gives more flexibility of belt positions. The kind of mounting may also depend on the type of armrests or hip supports which are mounted.
  • Page 50 11.5 Control settings The side swing-away control joystick module is adjustable in depth, height and angle. To adjust the swing-away part, take the following steps: 11.5.1 Depth adjustment side control: To set the depth adjustment of the side control, follow the next steps: Step 1: Loosen the bolts (V) using a 5mm Allan key.
  • Page 51 12 Control panel The wheelchair uses a color screen joystick module. With this joystick module all functions of the wheelchair can be controlled. This joystick module can be mounted on the left or right armrest or even as an integrated desktop unit. The joystick module contains a few major components which will be explained separately.
  • Page 52 12.3 Display The color LCD screen is split into 3 areas of information. The Top Bar, the Base Bar and the Main Screen Area. 12.3.1 Battery indicator (top bar) This displays the charge available in the battery and can be used to alert the user to the status of the battery.
  • Page 53 12.3.3 Profile name (main screen) The profile name shows in which drive profile you are now. The name of the profile can be programmed to your wishes by your local supplier. The wheelchair can have up to 8 different driving profiles. Each profile is set to a certain environment you want to drive in.
  • Page 54 12.3.6 Speed bar (main screen) This speed bar displays the current maximum speed setting. It contains 5 steps in speed. These steps can be selected using the speed buttons, explained in the chapter "Buttons" 12.3.7 Inhibit (main screen) If the speed of the wheelchair is being limited;...
  • Page 55 12.3.9 Additional options (main screen) Additional screens can show the additional options of the electronic system. For example: Bluetooth, environmental control, mouse function. For more detailed information about these options, please contact your local supplier. 12.3.10 Message screen (main screen) The joystick module displays warning icons and informational messages, in a dedicated message window.
  • Page 56 12.3.10.3 Sleep message This symbol will be displayed for a short time before the R-net enters a sleep state. 12.3.10.4 Joystick deflected message This message is show if the wheelchair is started up and the joystick is not in its zero position. If you let go of the joystick, the system will start up normally and the message disappears.
  • Page 57 12.3.12 Motor temperature (base bar) This symbol is displayed when the control system has intentionally reduced the power to the motors, to protect them against heat damage. 12.3.13 Control system temperature (base bar) This symbol is displayed when the control system has intentionally reduced its own power, to protect itself against heat damage.
  • Page 58 To unlock the wheelchair: - If the control system has been switched off, press the ON/OFF button. - Deflect the joystick forwards until the control system beeps. - Deflect the joystick in reverse until the control system beeps. - Release the joystick, there will be a long beep. - The wheelchair is now unlocked.
  • Page 59 12.4 Buttons The joystick module has several buttons which will be explained below. 12.4.1 On/Off button The On/Off button applies power to the control system electronics, which in turn supply power to the wheelchair’s motors. Do not use the On/Off button to stop the wheelchair unless there is an emergency.
  • Page 60 12.4.4 Mode button The Mode button allows the user to navigate through the available operating modes for the control system. The available modes are dependent on programming and the range of auxiliary output devices connected to the control system. 12.4.5 Profile button The Profile button allows the user to navigate through the available Profiles for the control system.
  • Page 61 12.5 Jack sockets 12.5.1 External profile switch jack This allows the user to select Profiles using an external device, such as a buddy button. To change the Profile whilst driving simply press the button. If the control system is set to latched drive or actuator control operation, then the polarity of the jack input is reversed to affect a fail-safe system;...
  • Page 62 Do not hold or pull on the cable. Always grip the connector when connecting and disconnecting. When the control system is first switched on after a connection, or system component change the Timer will be displayed whilst the system checks itself and then the re-start icon will be displayed.
  • Page 63 The joystick is primarily used to drive the wheelchair. Just push the joystick into the direction you want to drive, and the wheelchair will start to move in that direction. The secondary purpose of the joystick is to navigate through men menu of the wheelchair.
  • Page 64 13 Electric system 13.1 Batteries The wheelchair has two serial-connected 12-volt maintenance free batteries for the power supply. The capacity of the batteries is 50Ah. The compartment can hold maintenance free batteries up to 80Ah. The batteries are fitted in the front and rear of the chassis to arrange a low center point of gravity.
  • Page 65 Batteries are chemical components and shall be treated as such. In case of removal, one shall treat the batteries as chemical waist. The batteries need to be disposed according to the local regulations for chemical waist. 13.2 Main Fuse The wheelchair has one circuit breaker to protect the batteries against overload and short circuit.
  • Page 66 14 Using the wheelchair 14.1 General warnings and advices Please read this section of the manual very carefully as it contains issues related to safety and possible hazards. ● When the user is driving the wheelchair for the first time, the supplier has to make sure that the maximum driving speed and curving speed are set in a slow mode.
  • Page 67 This has to be checked by watching these parts when tilting the chair. Changes which are made by third parties are not covered by the warranty and responsibility of Karma Medical. 14.3 Hot and cold surfaces Some parts of the wheelchair can reach high temperatures when exposed to direct sun.
  • Page 68 14.4 Danger of pinching User Special care has been taken to make sure that the chance that the user pinches him or herself while seated in the wheelchair is minimal. However, there are few situations that might lead to injury. Special caution has to be taken under the following circumstances;...
  • Page 69 14.5 Surroundings Special care has been taken to make sure that the change that the surroundings pinches him or herself is minimal. However, there are few situations that might lead to injury. Special caution has to be taken under the following circumstances;...
  • Page 70 ● In order to ensure that your wheelchair is in good condition, please contact Karma authorized dealers regularly and make further wheelchair inspection and maintenance records. We recommend that you inspect and maintain your wheelchair every six months. ● Do not change the programmed driving characteristics of your control unit, as it is specific for the situation of the user.
  • Page 71 When driving on downhill slopes with an uneven or slippery surface (for example grass, gravel, sand, ice or snow) you should drive with extra care and attention. When driving on downhill you can use the tilt (if build in) to create a more stable seating position for yourself.
  • Page 72 Max. acceptable uphill slope When driving on uphill slopes with an uneven or slippery surface (for example grass, gravel, sand, ice or snow) you should drive with extra care and attention. Never drive uphill on slopes bigger than 6°. This might result into uncontrollable behavior of the wheelchair.
  • Page 73 14.9 Driving on sideways slopes Driving on a sideways slope must always be performed with great care. Avoid sudden avoidance maneuvers and never drive at a speed higher than needed to maneuver the wheelchair in a safe and secure way. Avoid holes and bumps as much as possible.
  • Page 74 14.10 Obstacle climbing Do not drive the wheelchair over obstacles of a height bigger than 75mm. Driving over tall edges increases the risk of tipping over as well as the risk of damage to the wheelchair. Always be aware when climbing obstacles of the stability of your wheelchair.
  • Page 75 14.11 Use in presence of electromagnetic fields, e.g. from cell phones. Use your cell phone only when the wheelchair is switched off. Although the wheelchair is tested and approved for electromagnetic interference, there is a very small change that strong electromagnetic fields from cell phones or some other electrical products lead to unexpected and unpredictable electrical reactions from the wheelchair.
  • Page 76 15 Driving the wheelchair The wheelchair is designed for indoor and outdoor use. When driving indoors, you must be careful when driving in, for example, narrow passageways, when passing through doors and entryways as well as when using elevators, ramps, etc.
  • Page 77 Always make sure the wheelchair is switched off before entering or leaving the wheelchair. If the wheelchair is switched on during transferring, there is a danger the joystick will be touched, and the wheelchair will move. 3. Set an appropriate maximum speed by pressing the decrease or increase button until the desired indicator lamp lights up for your type of driving.
  • Page 78 15.3 Stopping the wheelchair If you would like to stop simply move the joystick slowly towards the center and release the joystick. The wheelchair will come to a gentle stop. If you want to stop more quickly, simply let go of the joystick. It will put itself back into neutral position, which makes the wheelchair stop.
  • Page 79 By moving the joystick to the left or right you can switch between different powered seat function. One the required seat function is shown on the display, move the joystick forward or backward to activate the seat function in one direction.
  • Page 80 Around the lever is an instruction sticker which shows the direction to open or lock the mechanical brake. Move the lever into the "open" position on each motor. Now the wheelchair is in freewheel mode and can be pushed. To lock the brakes, move the lever into the "lock” position on both motors. If you want to put the wheelchair into freewheel mode, be sure to switch the electronics first.
  • Page 81 18 Charging the maintenance free batteries The amount of charge in your maintenance free batteries is depending on a number of factors, including the way you use your wheelchair, the temperature of the maintenance free batteries, their age and the type of maintenance free batteries used.
  • Page 82 If only the red LED are still on, it indicates that recharging of the maintenance free batteries is required. If only two red LED's are flashing, it indicates that the maintenance free batteries are empty and should be charged immediately. If the battery indicator shows only two segments in flashing, you should charge the batteries as soon as possible.
  • Page 83 Charger socket position Charger The wheelchair can be delivered with a battery charger. This charger can have, depending on the supplied batteries, a capacity to charge up to 12 amperes. This charger will fully charge the batteries within 8 hours. For more detailed information about the charger and its functions, we refer to the manual which comes with the charger.
  • Page 84 Be sure that the charger plug is pushed fully in position. You will not be able to drive the wheelchair when the charger is connected. If the wheelchair does drive with the charger plugged in, contact your local authorized supplier. In some occasions it might be the case that your local supplier will deliver the wheelchair with a different brand charger.
  • Page 85 19 Transport of the wheelchair 19.1 4-point Tie-down belts The Morgan M Versus (MGNM-VRS) complies with the requirements specified in ISO 7176-19:2008. It has been designed and tested according to the ISO 7176-19:2008, for transportation in an occupied position, forward facing in a vehicle.
  • Page 86 can have maximum effect. Make sure the straps are tightened to maintain optimal security. Standard ISO 10542-1 approved 4 point WTORS (wheelchair Tie down and Occupant Restraint Systems), are only tested to 85kg. For wheelchairs heavier than 85kg it is recommended to use an ISO 10542-1 WTORS (heavy duty system), which is rated for the total weight of the wheelchair including any options.
  • Page 87 For more information, tie down kits for vehicles and or further information about tie-down belt and occupant 3-point safety belt, please visit the website of Dahl engineering at www.dahlengineering.dk Any wheelchair anchored occupant restraint i.e. 3-point belt, harness or postural supports (lap straps, lap belts) should not be used or relied on for occupant restraint in a moving vehicle, regardless if labelled ISO 7176-19, SAE J2249 or any other.
  • Page 88 The wheelchair has been crash tested using tie down belts, and a 3-point occupant safety belt. We advise you to use a Dahl 3-point occupant safety belt model 500984 system or a system that is equally specified. It is very important to use the safety belt in the right angles according to the wheelchair user.
  • Page 89 Please obtain the following points for an optimal personal safety of the wheelchair user: - the pelvic belt should be worn low across the front of the pelvis, so that the angle of the pelvic belt is within the preferred zone of 30° to 75°...
  • Page 90 Please, make sure the following conditions are fulfilled to obtain a safe transportation: - Whenever possible the occupied wheelchair shall be located in a forward-facing configuration and secured by the tie downs in accordance with the WTORS (wheelchair tie down and occupant- restraint system) manufacturer’s instructions.
  • Page 91 - Alterations or substitutions should not be made to the wheelchair securement points or to structural and frame parts or components without consulting the manufacturer. - Only use "gelled electrolyte" batteries on powered wheelchairs when used in a car. Special care should be taken when applying the occupant restraint to position the seatbelt buckle so that the release button will not be contacted by wheelchair components during a crash.
  • Page 92 19.2 Transportation on an airplane When transporting your wheelchair by air, you should primarily pay attention to the following in below: 19.2.1. Batteries Gel batteries: In most cases, they do not need to be removed from the wheelchair. The batteries only need to be disconnected from the wheelchair. To do this simply disconnect on of the battery pole connectors.
  • Page 93 19.3 Transportation using Dahl Docking Station Morgan M Versus (MGNM-VRS) has been crash tested using a Dahl Docking Station tie down system according to 7176-19:2008 and 10542-1:2012 SWM, where the wheelchair is facing forward in driving direction (driving direction like the driver seat).
  • Page 94 19.3.1 Mounting of the Dahl locking adapter on the wheelchair The Morgan M Versus (MGNM-VRS) chassis can be equipped with a Dahl docking plate underneath the battery box frame of the chassis. Morgan M Versus (MGNM-VRS) chassis with Dahl docking plate mounted. For detailed information about the Dahl Docking System, please visit the homepage: www.dahlengineering.dk...
  • Page 95 The Morgan M Versus (MGNM-VRS) chassis has dedicated holes in the chassis where the Dahl lock plate can be mounted on. Dedicated holes for mounting Dahl lock plate 1. Remove the rear battery from the Morgan M Versus (MGNM-VRS) Chassis and put the special Dahl nut plates in to the dedicated mounting holes from the inside of the battery box.
  • Page 96 5. Note that the following parts are the standard parts that come with the complete docking station: 8 mm spacer (Dahl part no. 500673), the lock plate (Dahl part no. 500561) and the 5 pieces of Dahl high grade steel (14.9) Torx bolts (Dahl part no: 502800) The special Dahl high grade Torx bolts (Dahl part no: 502800) only come in one length which often is too long.
  • Page 97 (MGNM-VRS) chassis. If you want to have more flexibility in height adjustment for securing wheelchairs with different ground clearances, you could choose the latter. The mounting of the Dahl Docking Station into your vehicle shall only be executed by an authorized car adaptation company. They will get the right support and information from Dahl Engineering how to mount the docking station in to the designated vehicle.
  • Page 98 Content of DAHL VARIODOCK™ Art. no. 503600. Dahl Docking Station MK II function description...
  • Page 99 Dahl VarioDock™ function description Dahl Docking Station mounted on the floor 19.3.2 Locking procedure Drive the wheelchair slowly into the vehicle and make sure you centre your wheelchair in the middle of the docking module. If well positioned, the locking system will also guide the wheelchair into the docking station.
  • Page 100 driving until you feel the wheelchair is hitting the end position in the docking station. At the same time you will hear a clicking sound. The wheelchair is now locked in to the docking station. The light on the control panel will light up de LED showing the wheelchair is locked in correctly.
  • Page 101 Engineering instructions for installation, use and maintenance for the station used. The Dahl Docking Station can be unlocked manually in case of an emergency or if the electric unlocking is failing. The release lever on the Dahl Docking Station MK II (Left) and Dahl VarioDock™...
  • Page 102 19.3.5 Safety belt If the user is transported in his wheelchair, it is necessary to use a car safety belt to secure the wheelchair user. Positioning of the car safety belts for wheelchair users. The wheelchair has been crash tested using a Dahl 3-point occupant safety belt, model 500984.
  • Page 103 The shoulder part (1) of the safety belt should be positioned according to the figure below. Shoulder safety belt positioning...
  • Page 104 Please obtain the following points for an optimal personal safety of the wheelchair user: - the pelvic belt should be worn low across the front of the pelvis, so that the angle of the pelvic belt is within the preferred zone of 30° to 75°...
  • Page 105 Please, make sure the following conditions are fulfilled to obtain a safe transportation: - Whenever possible the occupied wheelchair shall be located in a forward-facing configuration and secured by the tie downs in accordance with the WTORS (wheelchair tie down and occupant- restraint system) manufacturer’s instructions.
  • Page 106 19.3.6 Positioning the occupant restraint when using it with the Dahl Docking systems only Danger! When using wheelchair with Dahl Docking systems, the floor anchorage points for the occupant restraint system shall be located 10-60 mm outside wheels, on each side. The pelvic belt must be worn low across the front of the pelvis so that the angle of the pelvic belt is within the optional or preferred zone of 30°...
  • Page 107 ● Only charge in a well-ventilated room with no sources of open fire. ● Turn of the control unit before charging ● Make sure the charging cable is not causing crashes of people ● When the charger is disconnected from the wheelchair, also disconnect the charger from the mains.
  • Page 108 20.3 Long term storage The battery may be stored in an unheated room, but it should be charged at least once a month for maintenance purposes. When the wheelchair is stored for a long term, we advise you to disconnect the batteries from the wheelchair.
  • Page 109 20.4 Tools The wheelchair comes with a tool kit to be able to adjust most settings. Some repairs may require tools other than those supplied with the wheelchair. The main fuse must always be removed when batteries and are replaced. Always switch off the power supply to the control panel before interrupting the power with the main fuse.
  • Page 110 20.5 Wheels and tires Check at regular intervals that the wheelchair’s tires have the correct tire pressure. Check regularly that the tire pressure is okay. We suggest checking the tire pressure at least every 4 weeks. Type of tire Tire size Recommended pressure Front tire 2.50/2.00-4...
  • Page 111 20.6 Cleaning Regular care and maintenance will prevent unnecessary wear and damage to your wheelchair. The following is general advice recommended by Karma. For severe soiling of the upholstery or damage to the surface finish, contact Karma or your local authorized supplier for information.
  • Page 112 20.6.2 Metal surfaces For normal cleaning it is best to use a soft cloth/sponge, hand warm water and a mild detergent. Wipe down carefully with a cloth and water and dry off. Remove scuff marks from semi-matt surfaces with soft wax (follow manufacturer’s instructions).
  • Page 113 20.8 Battery replacement Karma strongly recommends that battery replacement and installation always be done by a qualified technician. To replace the batteries, please refer to the photos below of the batteries equipped on the Morgan M series, and follow the below instructions to remove and load the batteries.
  • Page 114 20.8.1. Replacing the batteries (Front side) Step 1: remove the bolts (A) of the front cover in the front of the wheelchair. Detach the front cover and lift it off. Step 2: remove the screws (B) of the front battery plate and then detach it. Step 3: unfasten the fixing straps (C) of the battery box.
  • Page 115 Although the batteries maybe broken, still be very careful when touching the battery connection poles. Avoid any risk of short circuit between both poles. Step 4: take the new battery and then connect the cables on to the positive and negative poles. Step 5: connect the cables to the main power cable and then place the battery into the front of the battery box.
  • Page 116 20.8.2 Replacing the batteries (Rear side) Step 1: remove the bolts (F) of the rear cover in the rear of the wheelchair. Detach the rear cover and lift it off. Step 2: disconnect the connectors (G) of the rear light / direction light assembly.
  • Page 117 Step 4: unfasten the fixing straps (I) of the battery box. Then hold the battery and slightly pull it out. Unplug the connector (J) of the main power cable. Disconnect the cables (K) from the positive and negative poles. Step 5: take the new battery and then connect the cables on to the positive and negative poles.
  • Page 118 20.8.3 Disposal of the batteries There are many risks involved with improper disposal of batteries, whether damaged or not. Batteries may contain heavy metals and be considered hazardous waste. Many regions around the world now strictly enforce laws to help protect our environment.
  • Page 119 The wheelchair will be refurbished according to a refurbishment guideline of Karma. This includes the replacement of all upholstery parts, a total disinfection of the product and a complete technical check of the wheelchair and its accessories.

  • Page 120: Troubleshooting

    Check connection charger and joystick module not good Call for service Note that this guide cannot describe all the problems and events which may occur and you should always contact your local authorized supplier or Karma in case of doubt.
  • Page 121 Incorrect or poorly performed repair works may make it dangerous to use the wheelchair. Karma accepts no liability for any personal injury or damage to the wheelchair and its surroundings that occurs because of incorrect or...
  • Page 122 24 Technical specifications...
  • Page 123 DATA General product name Morgan M Versus (MGNM-VRS) wheelchair class Class B (indoor/outdoor use) expected service life > 5 years Sizes min. max. length, mm 1195 width, mm height, mm 1190 weight, kg 164.5 (50Ah) 187 (80Ah) horizontal location of axle, mm (-250) Smallest size for transportation length, mm...
  • Page 124 Every day we design new accessories to improve the flexibility of our products. Contact your local authorized Karma supplier for more information on the accessories which are available for your wheelchair. Should you have a good suggestion for a new accessory, do not hesitate to contact us.
  • Page 125 NOTES:...
  • Page 126 Through our dedication and our mindfulness, we look forward to bringing more confidence, joy, and love for life to those with physical abilities around the world. Karma Medical is continuously improving their products and accessories. Changes might take place without further notice.
  • Page 128 110400000961 Release Date: Jun. 2022 V.01...
