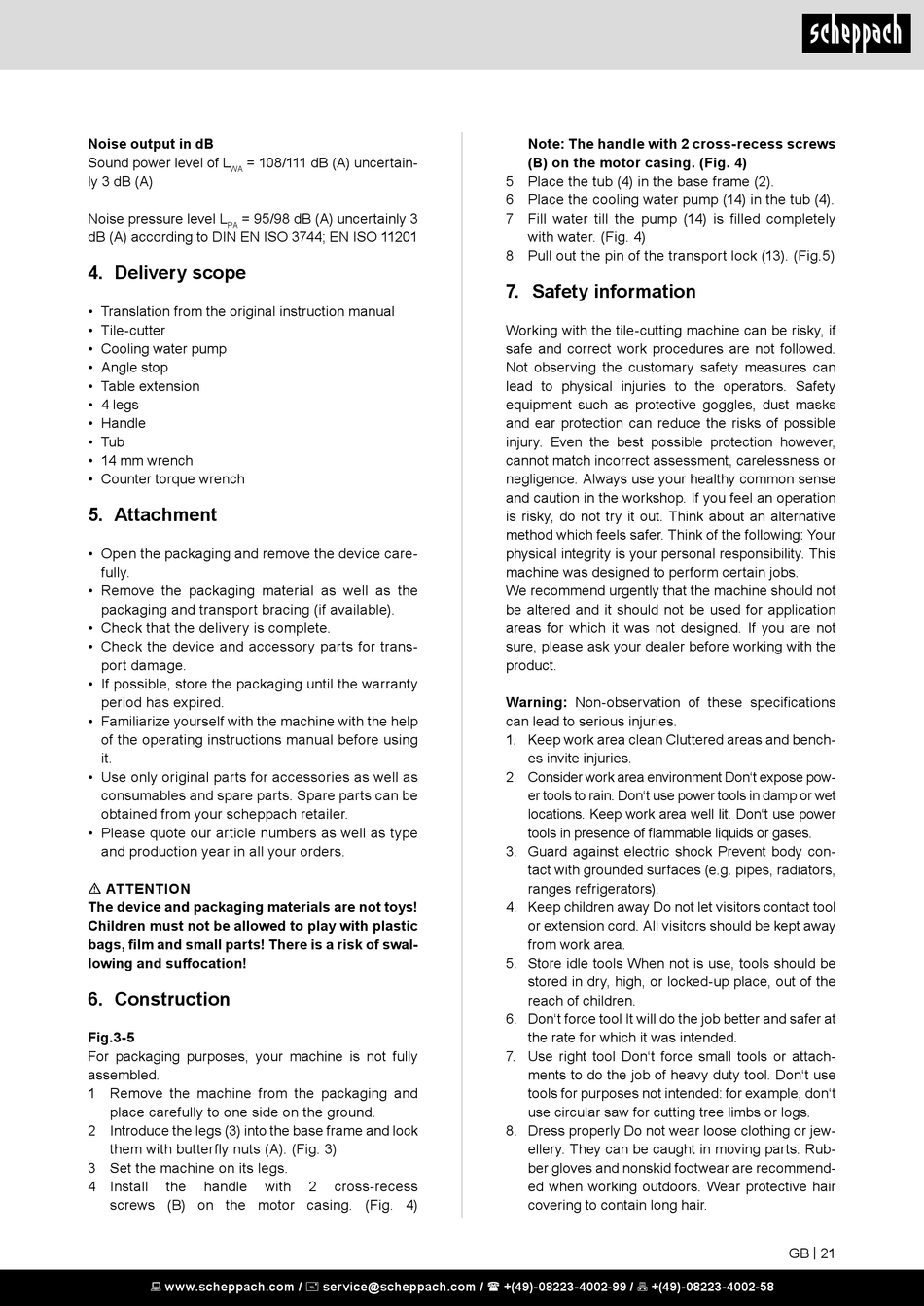

Noise output in dB
Sound power level of L = 108/111 dB (A) uncertain-
WA
ly 3 dB (A)
Noise pressure level L = 95/98 dB (A) uncertainly 3
PA
dB (A) according to DIN EN ISO 3744; EN ISO 11201

4. Delivery scope

• Translation from the original instruction manual
• Tile-cutter
• Cooling water pump
• Angle stop
• Table extension
• 4 legs
• Handle
• Tub
• 14 mm wrench
• Counter torque wrench

5. Attachment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for trans-
port damage.
• If possible, store the packaging until the warranty
period has expired.
• Familiarize yourself with the machine with the help
of the operating instructions manual before using
it.
• Use only original parts for accessories as well as
consumables and spare parts. Spare parts can be
obtained from your scheppach retailer.
• Please quote our article numbers as well as type
and production year in all your orders.
m ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!

6. Construction

Fig.3-5
For packaging purposes, your machine is not fully
assembled.
1 Remove the machine from the packaging and
place carefully to one side on the ground.
2 Introduce the legs (3) into the base frame and lock
them with butterfly nuts (A). (Fig. 3)
3 Set the machine on its legs.
4 Install the handle
screws (B) on the motor casing. (Fig. 4)
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
with 2 cross-recess
Note: The handle with 2 cross-recess screws
(B) on the motor casing. (Fig. 4)
5 Place the tub (4) in the base frame (2).
6 Place the cooling water pump (14) in the tub (4).
7 Fill water till the pump (14) is filled completely
with water. (Fig. 4)
8 Pull out the pin of the transport lock (13). (Fig.5)

7. Safety information

Working with the tile-cutting machine can be risky, if
safe and correct work procedures are not followed.
Not observing the customary safety measures can
lead to physical injuries to the operators. Safety
equipment such as protective goggles, dust masks
and ear protection can reduce the risks of possible
injury. Even the best possible protection however,
cannot match incorrect assessment, carelessness or
negligence. Always use your healthy common sense
and caution in the workshop. If you feel an operation
is risky, do not try it out. Think about an alternative
method which feels safer. Think of the following: Your
physical integrity is your personal responsibility. This
machine was designed to perform certain jobs.
We recommend urgently that the machine should not
be altered and it should not be used for application
areas for which it was not designed. If you are not
sure, please ask your dealer before working with the
product.
Warning: Non-observation of these specifications
can lead to serious injuries.
1. Keep work area clean Cluttered areas and bench-
es invite injuries.
2. Consider work area environment Don't expose pow-
er tools to rain. Don't use power tools in damp or wet
locations. Keep work area well lit. Don't use power
tools in presence of flammable liquids or gases.
3. Guard against electric shock Prevent body con-
tact with grounded surfaces (e.g. pipes, radiators,
ranges refrigerators).
4. Keep children away Do not let visitors contact tool
or extension cord. All visitors should be kept away
from work area.
5. Store idle tools When not is use, tools should be
stored in dry, high, or locked-up place, out of the
reach of children.
6. Don't force tool It will do the job better and safer at
the rate for which it was intended.
7. Use right tool Don't force small tools or attach-
ments to do the job of heavy duty tool. Don't use
tools for purposes not intended: for example, don't
use circular saw for cutting tree limbs or logs.
8. Dress properly Do not wear loose clothing or jew-
ellery. They can be caught in moving parts. Rub-
ber gloves and nonskid footwear are recommend-
ed when working outdoors. Wear protective hair
covering to contain long hair.
