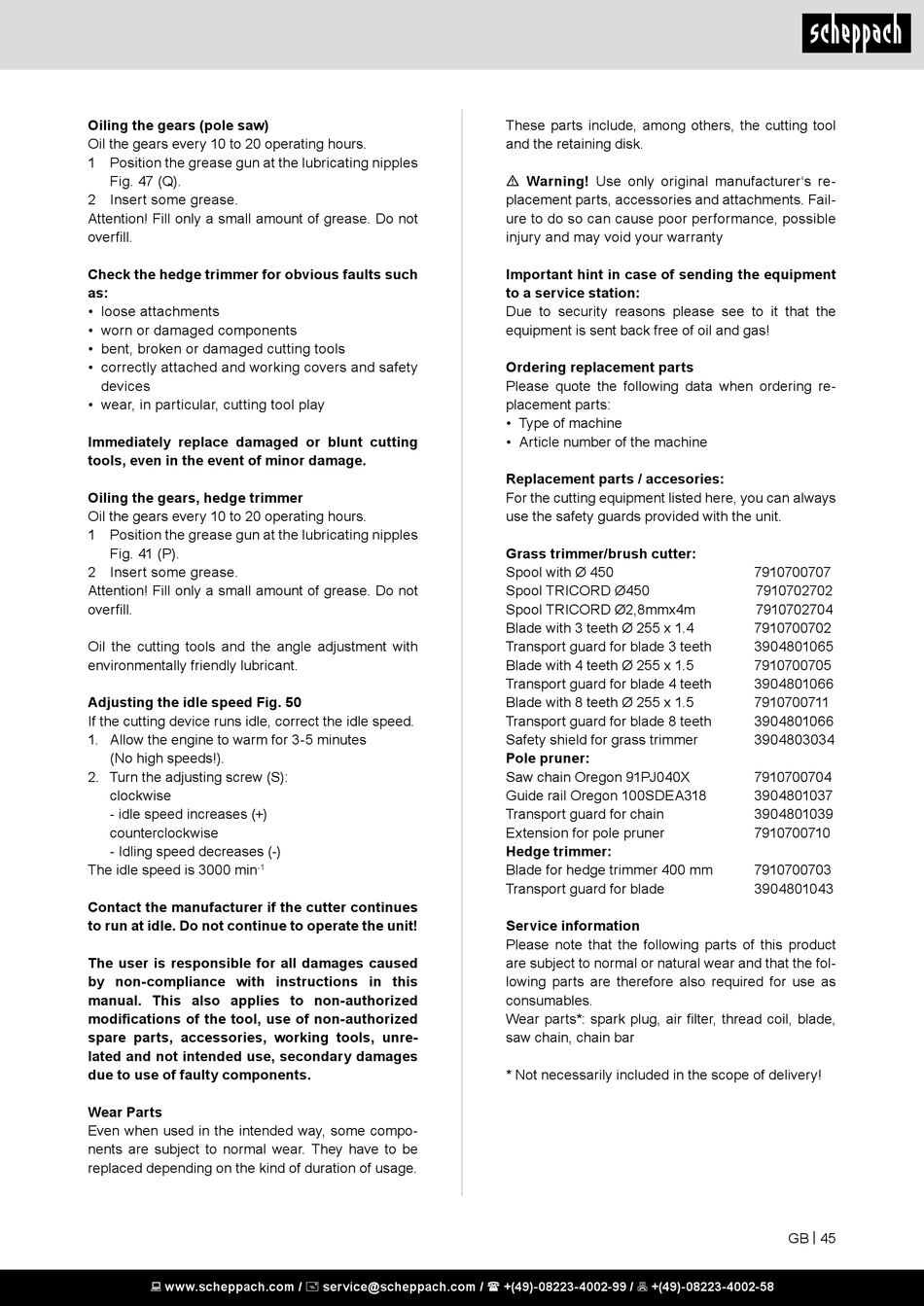

Scheppach MFH5200-4P Original Instruction Manual page 45

Oiling the gears (pole saw)
Oil the gears every 10 to 20 operating hours.
1 Position the grease gun at the lubricating nipples
Fig. 47 (Q).
2 Insert some grease.
Attention! Fill only a small amount of grease. Do not
overfill.
Check the hedge trimmer for obvious faults such
as:
• loose attachments
• worn or damaged components
• bent, broken or damaged cutting tools
• correctly attached and working covers and safety
devices
• wear, in particular, cutting tool play
Immediately replace damaged or blunt cutting
tools, even in the event of minor damage.
Oiling the gears, hedge trimmer
Oil the gears every 10 to 20 operating hours.
1 Position the grease gun at the lubricating nipples
Fig. 41 (P).
2 Insert some grease.
Attention! Fill only a small amount of grease. Do not
overfill.
Oil the cutting tools and the angle adjustment with
environmentally friendly lubricant.
Adjusting the idle speed Fig. 50
If the cutting device runs idle, correct the idle speed.
1. Allow the engine to warm for 3-5 minutes
(No high speeds!).
2. Turn the adjusting screw (S):
clockwise
- idle speed increases (+)
counterclockwise
- Idling speed decreases (-)
The idle speed is 3000 min
-1
Contact the manufacturer if the cutter continues
to run at idle. Do not continue to operate the unit!
The user is responsible for all damages caused
by non-compliance with instructions in this
manual. This also applies to non-authorized
modifications of the tool, use of non-authorized
spare parts, accessories, working tools, unre-
lated and not intended use, secondary damages
due to use of faulty components.
Wear Parts
Even when used in the intended way, some compo-
nents are subject to normal wear. They have to be
replaced depending on the kind of duration of usage.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
These parts include, among others, the cutting tool
and the retaining disk.
m Warning! Use only original manufacturer's re-
placement parts, accessories and attachments. Fail-
ure to do so can cause poor performance, possible
injury and may void your warranty
Important hint in case of sending the equipment
to a service station:
Due to security reasons please see to it that the
equipment is sent back free of oil and gas!
Ordering replacement parts
Please quote the following data when ordering re-
placement parts:
• Type of machine
• Article number of the machine
Replacement parts / accesories:
For the cutting equipment listed here, you can always
use the safety guards provided with the unit.
Grass trimmer/brush cutter:
Spool with Ø 450
Spool TRICORD Ø450
Spool TRICORD Ø2,8mmx4m
Blade with 3 teeth Ø 255 x 1.4
Transport guard for blade 3 teeth
Blade with 4 teeth Ø 255 x 1.5
Transport guard for blade 4 teeth
Blade with 8 teeth Ø 255 x 1.5
Transport guard for blade 8 teeth
Safety shield for grass trimmer
Pole pruner:
Saw chain Oregon 91PJ040X
Guide rail Oregon 100SDEA318
Transport guard for chain
Extension for pole pruner
Hedge trimmer:
Blade for hedge trimmer 400 mm
Transport guard for blade
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: spark plug, air filter, thread coil, blade,
saw chain, chain bar
* Not necessarily included in the scope of delivery!
7910700707
7910702702
7910702704
7910700702
3904801065
7910700705
3904801066
7910700711
3904801066
3904803034
7910700704
3904801037
3904801039
7910700710
7910700703
3904801043
