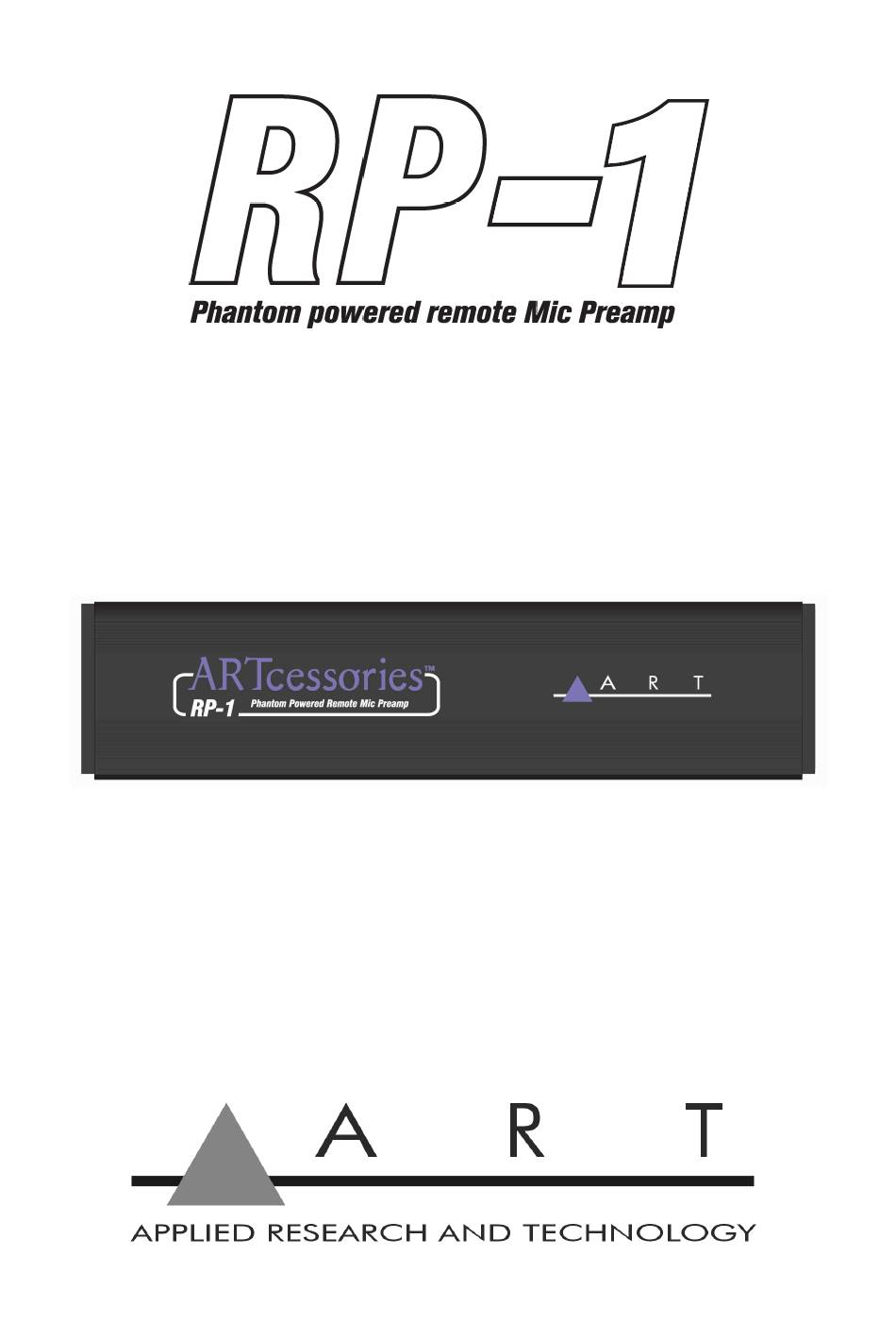

- Page 1 ARTcessories User's Manual...
-
Page 3: Important Safety Instruction - Read First
IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. This symbol, whenever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. - Page 4 The RP-1 is packaged in a rugged extrusion, metal XLR jacks and a solid rubber foot underneath for long, reliable operation. Get the very best out of your mics with the RP-1...
- Page 5 Designed and developed in the USA • INSTALLATION and OPERATION Connect the outputs of the RP-1 to a Phantom powered source such as a mixer or preamplifier. Connect the RP-1 input to your Ribbon or dynamic mic. Make sure you start with the gain pot set to their minimum setting.
- Page 6 Connections...
- Page 7 Because the unit is compact and lightweight, mounting location is not critical. The RP-1 is placed inline with the Mic. The RP-1 can be zip tied to the mic stand, so tonal adjustments can be made on the fly.
-
Page 8: Low Cut Filter Control
LOW CUT FILTER control The Low Cut Filter is a single tuned High Pass Filter. The input signal can be filtered to remove low frequency information. The roll off frequency is set at 100Hz. Since it is single tuned, it preserves some low frequency content so its use is less obtrusive. - Page 9 Ribbon Mic Ribbon type (transformer coupled) microphones are sensitive to the input impedance of the preamps or mixers used to achieve the optimum frequency response. A Ribbon mic would like to see an input impedance several times larger than its output impedance.
- Page 10 Dual RP, you can achieve a clean full frequency response from your microphones using the Dual RP. The beauty of the RP-1 may be the ability to operate at higher impedance or control the impedance vs. the mixer you are currently using.
-
Page 11: Warranty Information
WARRANTY INFORMATION Limited Warranty Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 12 Exclusions This warranty does not apply in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs. This warranty is void if the serial number is altered, defaced, or removed. A R T reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install...
- Page 13 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select “Support”, then “Return Authorization Request” to request a return authorization number.
-
Page 14: Specifications
SPECIFICATIONS Input Connections Input Impedance 150 Ohms to 10k Ohms, variable Max Input level -18dBu Output Connections Max. Output Level +1dBm (600 Ohm Load)/+10dBu (10k Ohms load) Gain 20dB @600 Ohms load, +28dB @ 10k Ohm load Low Cut Filter Single pole 100hz <... - Page 16 E-mail: support@artproaudio.com © 2020 Applied Research & Technology / Yorkville Sound RP-1 RP1-5004-101...
