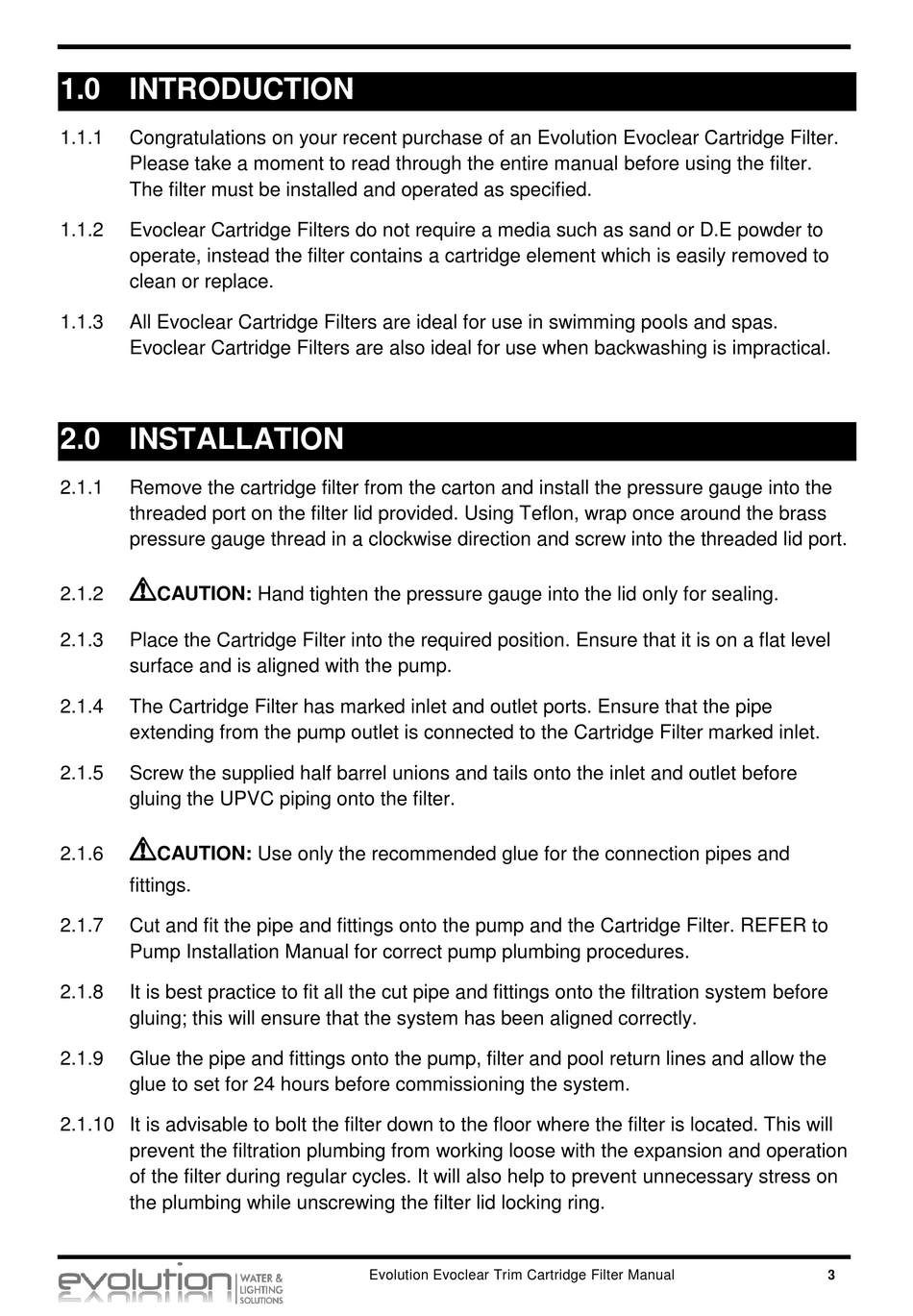

1.0 INTRODUCTION

1.1.1 Congratulations on your recent purchase of an Evolution Evoclear Cartridge Filter.
Please take a moment to read through the entire manual before using the filter.
The filter must be installed and operated as specified.
1.1.2 Evoclear Cartridge Filters do not require a media such as sand or D.E powder to
operate, instead the filter contains a cartridge element which is easily removed to
clean or replace.
1.1.3 All Evoclear Cartridge Filters are ideal for use in swimming pools and spas.
Evoclear Cartridge Filters are also ideal for use when backwashing is impractical.

2.0 INSTALLATION

2.1.1 Remove the cartridge filter from the carton and install the pressure gauge into the
threaded port on the filter lid provided. Using Teflon, wrap once around the brass
pressure gauge thread in a clockwise direction and screw into the threaded lid port.
!
2.1.2 CAUTION: Hand tighten the pressure gauge into the lid only for sealing.
2.1.3 Place the Cartridge Filter into the required position. Ensure that it is on a flat level
surface and is aligned with the pump.
2.1.4 The Cartridge Filter has marked inlet and outlet ports. Ensure that the pipe
extending from the pump outlet is connected to the Cartridge Filter marked inlet.
2.1.5 Screw the supplied half barrel unions and tails onto the inlet and outlet before
gluing the UPVC piping onto the filter.
!
2.1.6 CAUTION: Use only the recommended glue for the connection pipes and
fittings.
2.1.7 Cut and fit the pipe and fittings onto the pump and the Cartridge Filter. REFER to
Pump Installation Manual for correct pump plumbing procedures.
2.1.8 It is best practice to fit all the cut pipe and fittings onto the filtration system before
gluing; this will ensure that the system has been aligned correctly.
2.1.9 Glue the pipe and fittings onto the pump, filter and pool return lines and allow the
glue to set for 24 hours before commissioning the system.
2.1.10 It is advisable to bolt the filter down to the floor where the filter is located. This will
prevent the filtration plumbing from working loose with the expansion and operation
of the filter during regular cycles. It will also help to prevent unnecessary stress on
the plumbing while unscrewing the filter lid locking ring.
