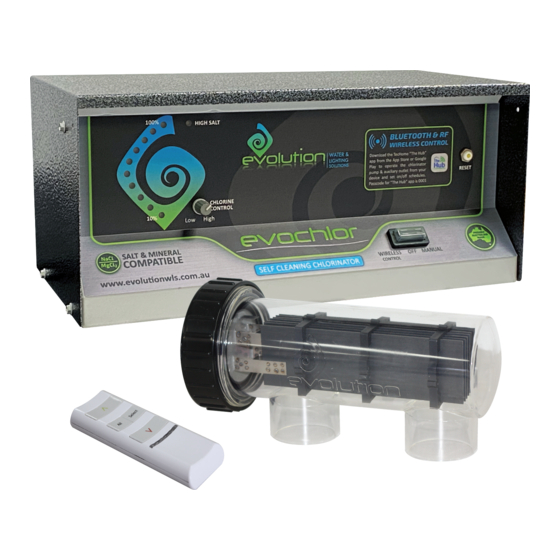

EVOCHLOR
WIRELESS CHLORINATOR
Installation and Operation Manual for
EVOCHLOR WIRELESS BLUETOOTH CHLORINATOR
A20BT | A25BT | A35BT
This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical
hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
Remote Control Unit is not waterproof, and must not be used in wet conditions.
This manual contains important information about the installation, operation and safe use of this product. Once
the product has been installed this manual must be given to the owner/operator of this equipment.
Advertisement
Table of Contents
Related Manuals for Evolution evochlor A20BT
Summary of Contents for Evolution evochlor A20BT
- Page 1 EVOCHLOR WIRELESS CHLORINATOR Installation and Operation Manual for EVOCHLOR WIRELESS BLUETOOTH CHLORINATOR A20BT | A25BT | A35BT This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical hazards which could result in property damage, serious injury or death. Improper installation will void the warranty. Remote Control Unit is not waterproof, and must not be used in wet conditions.
-
Page 2: Table Of Contents
® SALT WATER CHLORINATORS TABLE OF CONTENTS 1.0 FOREWORD ....1 2.0 POOL CHEMISTRY....1 3.0 CELL INSTALLATION . -
Page 3: Foreword
Please read the instructions thoroughly before operating the unit. If you have any concerns or require further assistance, please do not hesitate to contact our friendly staff or any of our Evolution distributors. POOL CHEMISTRY It is important to note that the Evochlor Wireless Chlorinator does not maintain the water chemistry of the swimming pool water;... -
Page 4: Cell Installation
CELL INSTALLATION The electrolytic cell housing must be plumbed into the return line after the filter. Please refer to the installation diagram, Fig.1, below for the preferred method. The cell housing has allocations for either 50mm PVC pipe or 40mm PVC pipe using the supplied PVC reducing bushes. -
Page 5: Power Pack Installation
POWER PACK INSTALLATION The Evochlor Wireless Chlorinator power pack is wall mounted using the supplied mounting bracket or directly hanging on the wall with screws (300mm centres). The power pack must be mounted at least 1 metre above the ground and 3 metres or more from the pool edge. -
Page 6: Operation
Fig. 3 1. Chlorine Output LEDs The output lights follow the curve of the Evolution logo. If the correct salinity level is maintained in the water, all ten lights will illuminate at full output (100%). Each light represents 10% chlorine output. If all lights are not illuminated, then a higher salinity level will be required, this is achieved by determining the current salinity levels and adding salt accordingly. -
Page 7: Remote Control Unit
Note: Turn off the chlorinator at the power point before attempting to reset the circuit breaker. Should the circuit breaker continue to trip, then a local Evolution distributor should be contacted. 7. Switch This switch allows you to choose the operation mode for the chlorinator and pool pump. -
Page 8: Evochlor Wireless Ios Bluetooth Instructions
1. Install the TecHome “The Hub” app from the 2. Take your mobile device near the Evochlor App store to your device. Wireless unit. The Bluetooth connection will only operate within 10m of the unit. Open the The Hub app and select the Evolution option. - Page 9 3. Enter the PIN Code 0001. 4. Select the device you would like to control. The “Chlorinator” device is used for the filtration pump and chlorinator. The “Pool Light” outlet is used for an auxiliary device such as lights.
- Page 10 5. The device can be manually turned on/off 6. Turn one or more timer Schedules on from this screen. Select “Schedules” to adjust from this screen. To adjust the On time and the automatic on/off time settings. Off time, select which time you would like to adjust first.
- Page 11 7. Use the scroll wheels to adjust, hour, 8. Once desired Schedules have been set, minute and am/pm setting. Select “Repeat” to select Save. The device will now automatically adjust the daily occurrence of the Schedule. turn on/off with the set Schedules. Once completed select Save.
-
Page 12: Evochlor Wireless Android Bluetooth Instructions
1. Install the TecHome “The Hub” app from the 2. Take your mobile device near the Evochlor Google Play store to your device. Wireless unit. The Bluetooth connection will only operate within 10m of the unit. Open the The Hub app, press scan and select the Evolution option. - Page 13 3. Enter the PIN Code 0001. 4. Select the device you would like to control. The “Chlorinator” device is used for the filtration pump and chlorinator. The “Pool Light” outlet is used for pool lights and other auxiliary devices.
- Page 14 5. The device can be manually turned on/off 6. Turn one or more timer Schedules on from this screen. Select the calendar (top from this screen. To adjust the On time and right) to adjust the automatic on/off time Off time, select which time you would like to settings.
- Page 15 7. Use the clock to adjust, hour, minute and 8. Once desired Schedules have been set, am/pm setting. Select “Repeat” to adjust select the save icon (top right). The device the daily occurance of the Schedule. Once will now automatically turn on/off with the completed select the save icon (top right).
-
Page 16: Maintenance
Only qualified electrical technicians should service the power pack. For the nearest Evolution recommended service technician, please contact Evolution Water & Lighting Solutions on 07 5565 0000 or email us at service@evolutionwls.com.au. -
Page 17: Troubleshooting
TROUBLESHOOTING 10.0 Fault/Problem Possible Cause Remedy Pump turned off. Ensure the pump is on. Closed valve. Open valve. Air in the system. Check all o-rings and grease. NO FLOW All chlorine output Dirty filter. Clean or backwash filter. LEDs flashing Low water level. -
Page 18: Warranty
11.0 11.1 Evolution Evochlor Chlorinators are covered by a 3-year full warranty from the date of purchase. The power pack and electrolytic cell are covered against defects in materials and assembly from the date of purchase in a domestic application. All electrical or mechanical failure due to faulty components will be repaired or replaced at no cost to the owner, including labour. -
Page 19: Notes
NOTES 12.0... - Page 20 1/33 Hinkler Drive, Highland Park QLD 4211, Australia +61 7 5565 0000 Unless otherwise indicated, copyright in the content of this document is the property of Evolution Water and Lighting Solutions under Australian copyright law. Unless otherwise indicated, content may not be reproduced or transmitted without our prior written permission.
