CARTRIDGE FILTERS
Installation and Operation Manual
!
This equipment must be installed and serviced by a qualified technician.
WARNING
Improper installation can create electrical hazards which could result in property
damage, serious injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation and
safe use of this product. Once the product has been installed this manual must
be given to the owner/operator of this equipment.

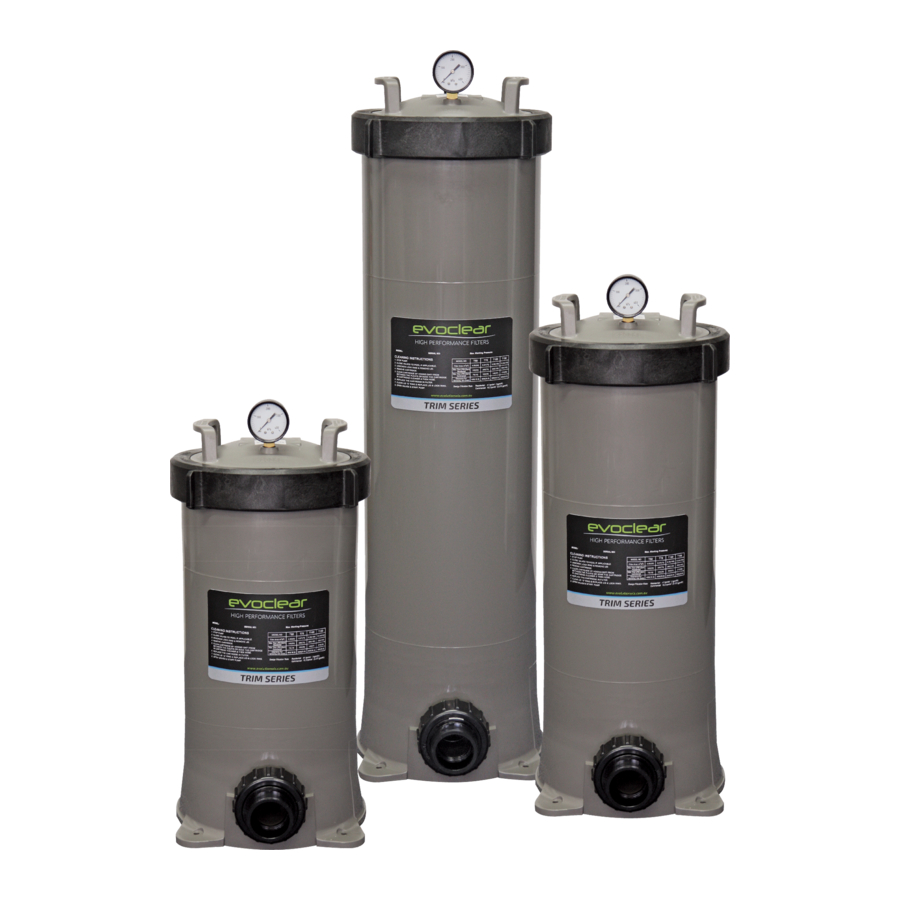

Evolution Evoclear Trim Cartridge Filter Manual
T50 | T75 | T100 | T150
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evolution Evoclear Trim Series
Summary of Contents for Evolution Evoclear Trim Series

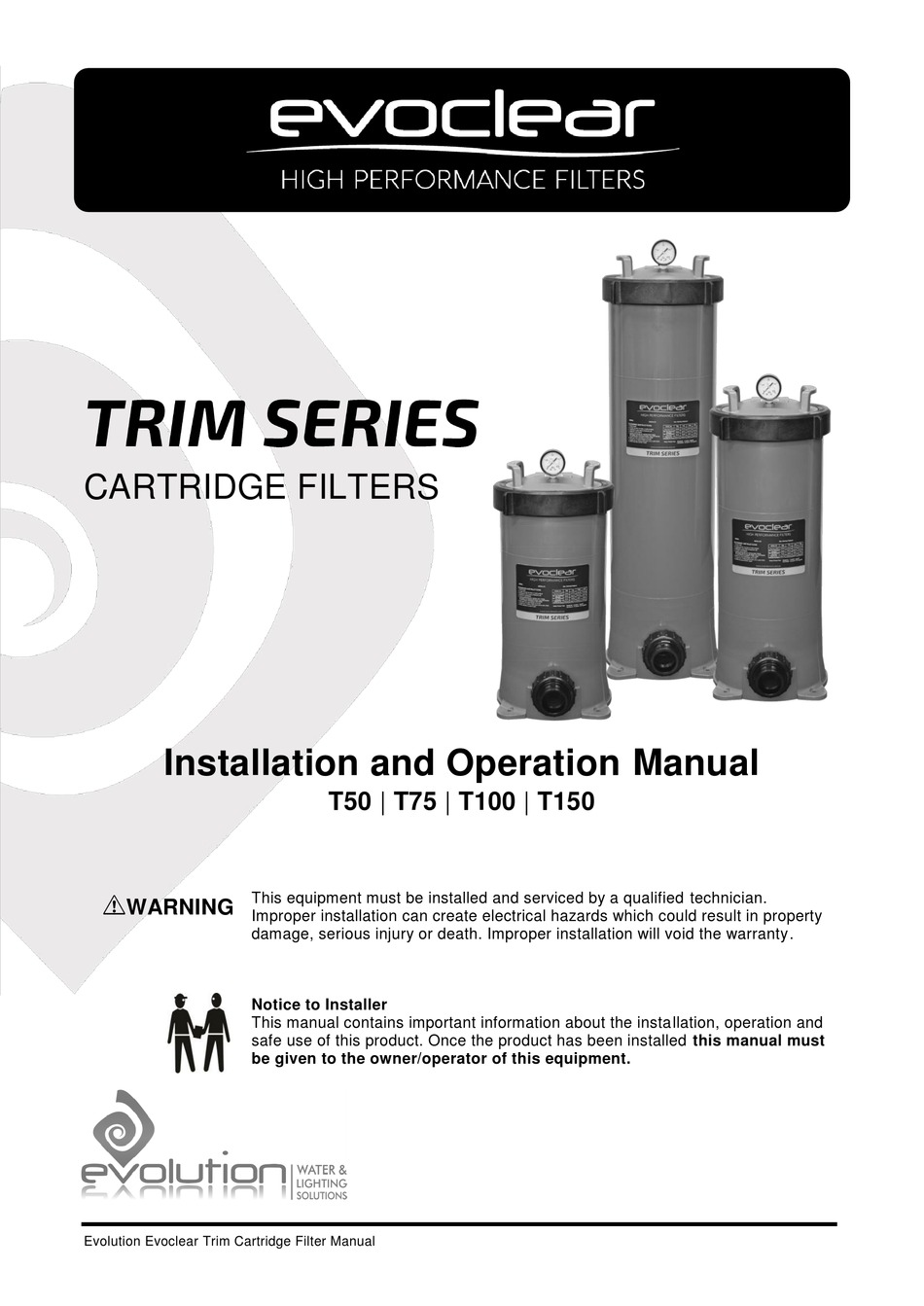

- Page 1 Notice to Installer This manual contains important information about the installation, operation and safe use of this product. Once the product has been installed this manual must be given to the owner/operator of this equipment. Evolution Evoclear Trim Cartridge Filter Manual...
- Page 2 CARTRIDGE FILTERS Installation and Operation Manual T50 | T75 | T100 | T150 INTRODUCTION ....................3 INSTALLATION ....................3 START UP PROCEDURE ................... 4 MAINTENANCE ....................4 CLEANING ......................5 TROUBLESHOOTING ..................6 Evolution Evoclear Trim Cartridge Filter Manual...
- Page 3 1.0 INTRODUCTION 1.1.1 Congratulations on your recent purchase of an Evolution Evoclear Cartridge Filter. Please take a moment to read through the entire manual before using the filter. The filter must be installed and operated as specified. 1.1.2 Evoclear Cartridge Filters do not require a media such as sand or D.E powder to operate, instead the filter contains a cartridge element which is easily removed to clean or replace.
- Page 4 You will need to clean the filter cartridge (element) once the pressure gauge has reached 50 kPa above the operating pressure. 4.1.5 The Evoclear Cartridge Filters have a maximum operating pressure of 350 kPa. Evolution Evoclear Trim Cartridge Filter Manual...
- Page 5 5.1.3 The cleaning time depends upon the swimming pool condition and use. Intervals between cleaning the element should not exceed a period of 12 months in any instance. FLOW DIAGRAM Evolution Evoclear Trim Cartridge Filter Manual...
- Page 6 High pressure on start- Partially closed valve on return line. Too large of pump, check selection. Hole in filter cartridge, replace filter cartridge. Dirt returns to pool Worn o-ring seal inside filter, replace o-ring. Evolution Evoclear Trim Cartridge Filter Manual...
- Page 7 Evolution Water & Lighting Solutions Phone: +61 7 5565 0000 Fax: +61 7 5565 0010 Email: enquiries@evolutionwls.com.au Web: www.evolutionwls.com.au Address: 27/30 Mudgeeraba Rd, Worongary QLD 4213 Australia Evoclear Trim Manual - V1 Evolution Evoclear Trim Cartridge Filter Manual...
