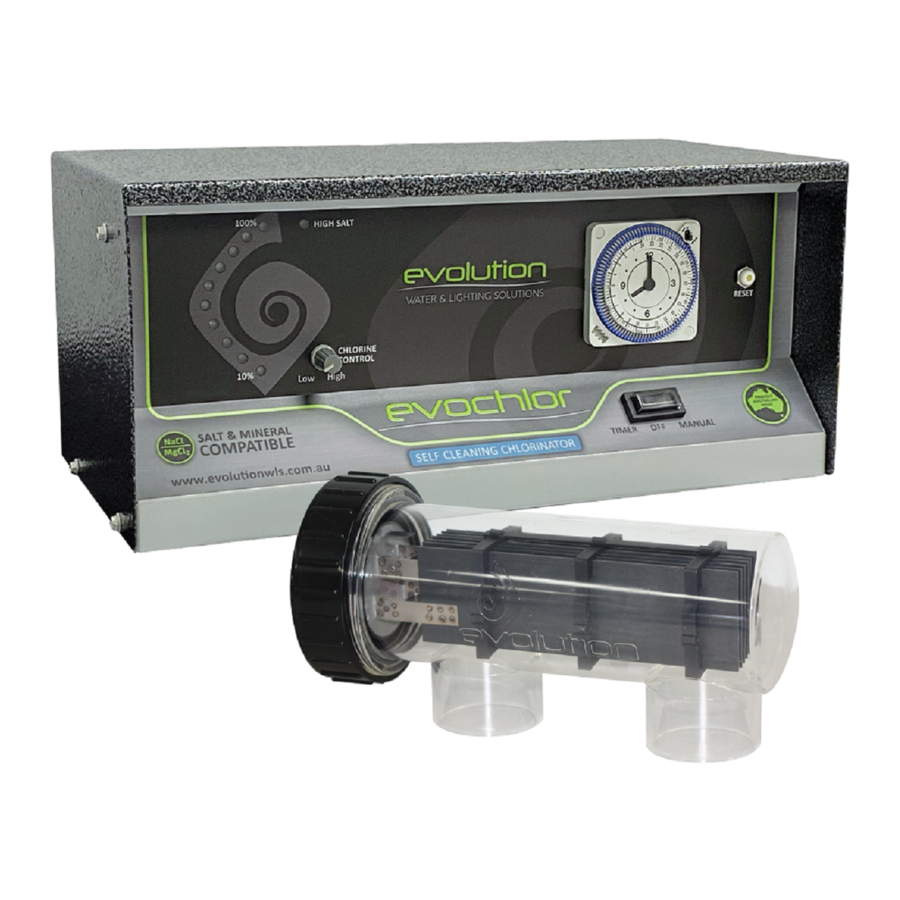

EVOCHLOR
SALT WATER CHLORINATOR
Installation and Operation Manual for
EVOCHLOR AUTOMATIC SELF-CLEANING CHLORINATOR
A15TS | A20TS | A25TS | A30TS | A35TS
This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical
hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
This manual contains important information about the installation, operation and safe use of this product. Once
the product has been installed this manual must be given to the owner/operator of this equipment.
SALT WATER CHLORINATORS
®
Advertisement
Table of Contents
Related Manuals for Evolution EVOCHLOR A15TS
Summary of Contents for Evolution EVOCHLOR A15TS

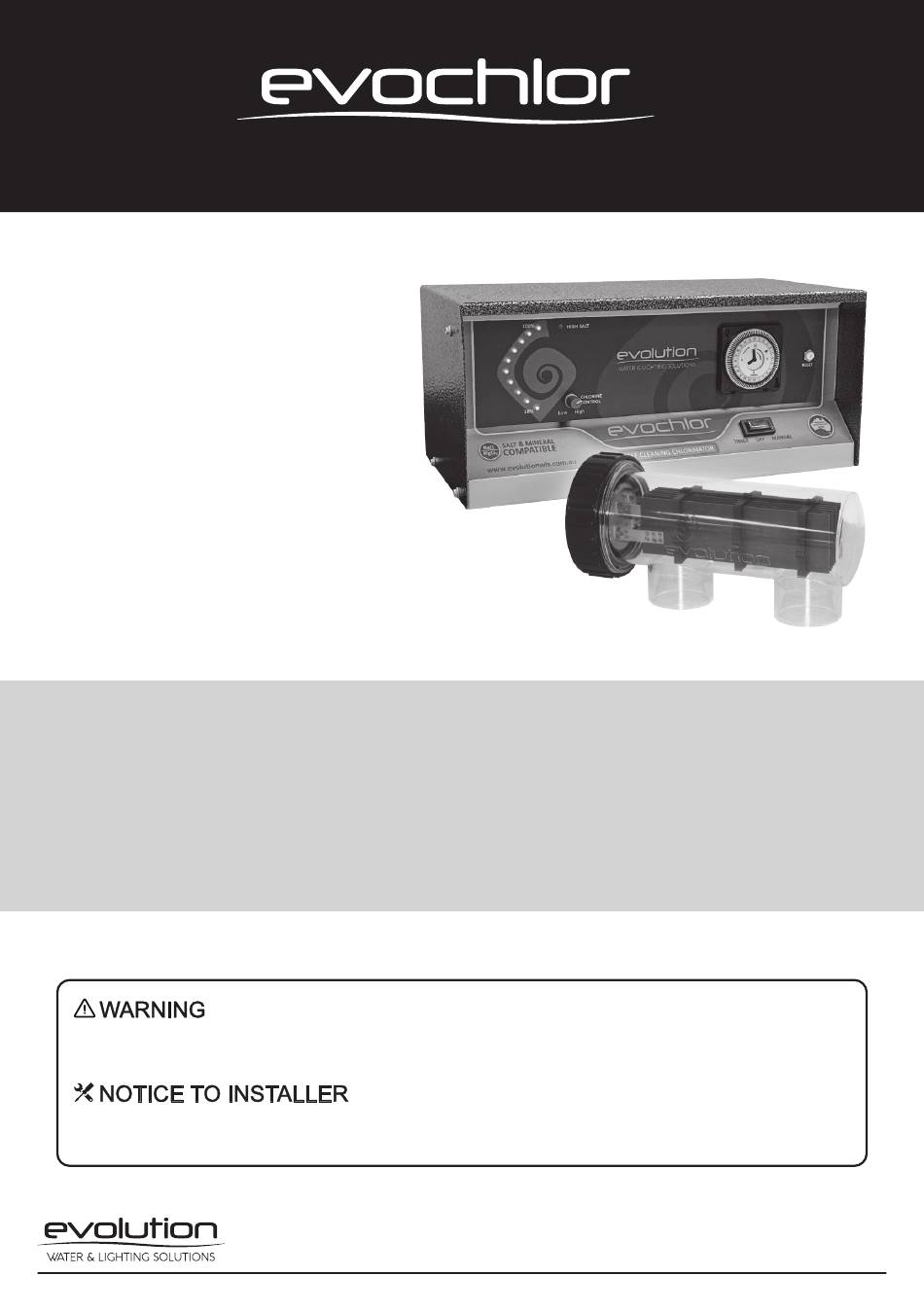

- Page 1 ® SALT WATER CHLORINATORS EVOCHLOR SALT WATER CHLORINATOR Installation and Operation Manual for EVOCHLOR AUTOMATIC SELF-CLEANING CHLORINATOR A15TS | A20TS | A25TS | A30TS | A35TS This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical hazards which could result in property damage, serious injury or death.
-
Page 2: Table Of Contents
® SALT WATER CHLORINATORS TABLE OF CONTENTS 1.0 FOREWORD ....1 2.0 POOL CHEMISTRY....1 3.0 CELL INSTALLATION . -
Page 3: Foreword
FOREWORD Congratulations on purchasing an Evolution Evochlor Saltwater Chlorinator for your swimming pool. This system is designed for robust reliability and easy operation to provide many years of trouble-free service. Please read the instructions thoroughly before operating the unit. If you have any concerns or require further assistance, please do not hesitate to contact our friendly staff or any of our Evolution distributors. -
Page 4: Cell Installation
CELL INSTALLATION The electrolytic cell housing must be plumbed into the return line after the filter. Please refer to the installation diagram, Fig.1, below for the preferred method. The cell housing has allocations for either 40mm PVC pipe or 50mm PVC pipe with the use of the supplied PVC reducing bushes. -
Page 5: Power Pack Installation
POWER PACK INSTALLATION The Evochlor Chlorinator power pack is wall mounted by either using the supplied mounting bracket or directly hanging on the wall with screws (300mm centres). The power pack is to be mounted at least 1 metre above the ground and 3 metres or more from the pool edge. It is strongly recommended that the power pack be installed where it is protected from the elements. -
Page 6: Operation
Fig. 3 1. Chlorine Output LEDs The output lights follow the curve of the Evolution logo. If the correct salinity level is maintained in the water, then all ten lights will illuminate at full output (100%). Each light represents 10% chlorine output. If all lights are not illuminated, then a higher salinity level will be required. - Page 7 To reset, press the yellow centre button back in to resume normal function. NB: Turn off the chlorinator at the power point before attempting to reset the circuit breaker. Should the circuit breaker continue to trip, then a local Evolution distributor should be contacted. 7. Switch This switch allows you to choose the timer operation mode for the chlorinator and pool pump.
-
Page 8: Maintenance
Replace the cell into housing in a reverse manner to the steps above. Only qualified electrical technicians should service the power pack. For the nearest Evolution recommended service technician, please contact Evolution Water & Lighting Solutions on... -
Page 9: Troubleshooting
TROUBLESHOOTING Fault/Problem Possible Cause Remedy Pump turned off. Ensure the pump is on. Closed valve. Open valve. Air in the system. Check all o-rings and grease. NO FLOW All chlorine output Dirty filter. Clean or Backwash filter. LED’s flashing Low water level. Fill up the pool. -
Page 10: Warranty
In field labour is limited to the Gold Coast city metropolitan area. Outside of these areas the complete unit should be returned to Evolution Water & Lighting Solutions or one of our warranty agents. Freight charges may apply and are entirely at the discretion of Evolution Water &... -
Page 11: Notes
NOTES... - Page 12 1/33 Hinkler Drive, Highland Park QLD 4211, Australia +61 7 5565 0000 Unless otherwise indicated, copyright in the content of this document is the property of Evolution Water and Lighting Solutions under Australian copyright law. Unless otherwise indicated, content may not be reproduced or transmitted without our prior written permission.
