EVOCLEAR
CARTRIDGE FILTERS
Installation and Operation Manual for

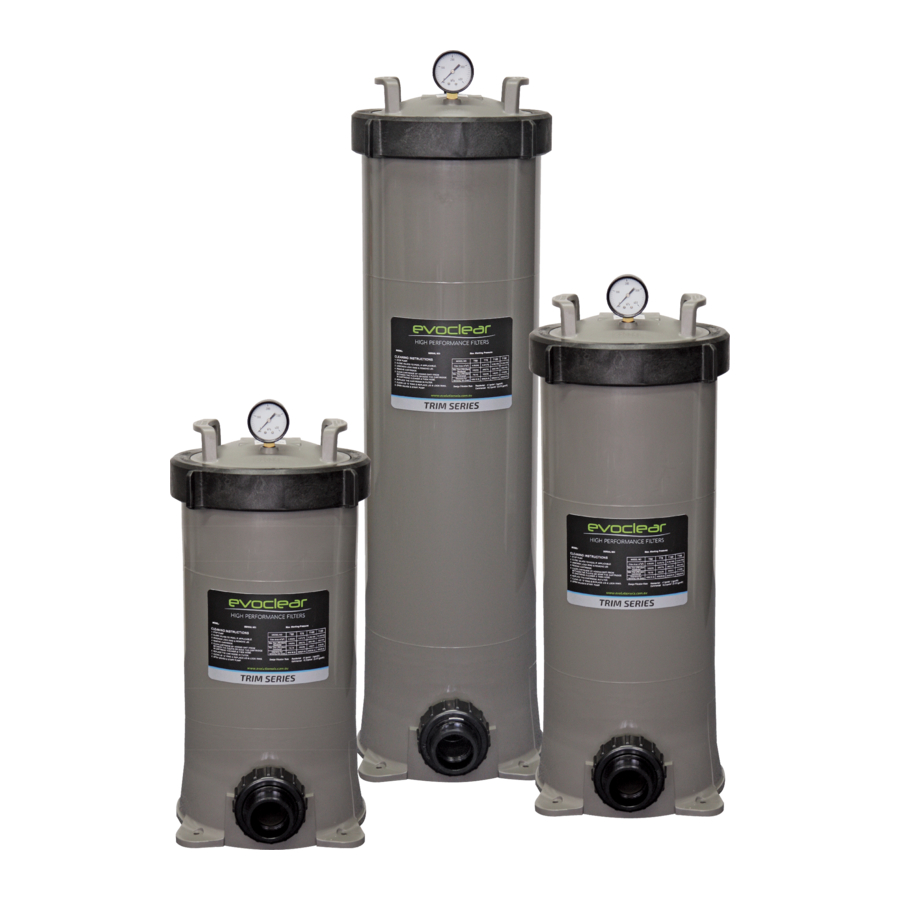

EVOCLEAR TRIM SERIES CARTRIDGE FILTERS
TRIM 50 | TRIM 75 | TRIM 100 | TRIM 150
This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical
hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
This manual contains important information about the installation, operation and safe use of this product. Once
the product has been installed this manual must be given to the owner/operator of this equipment.
Advertisement
Table of Contents
Related Manuals for Evolution evoclear TRIM Series
Summary of Contents for Evolution evoclear TRIM Series
- Page 1 EVOCLEAR CARTRIDGE FILTERS Installation and Operation Manual for EVOCLEAR TRIM SERIES CARTRIDGE FILTERS TRIM 50 | TRIM 75 | TRIM 100 | TRIM 150 This equipment must be installed and serviced by a qualified technician. Improper installation can create electrical hazards which could result in property damage, serious injury or death.
- Page 2 TABLE OF CONTENTS 1.0 FOREWORD ....1 2.0 INSTALLATION ....1 3.0 START UP PROCEDURE .
- Page 3 FOREWORD Congratulations on your recent purchase of an Evolution Evoclear Trim Series Cartridge Filter. Please take a moment to read through the entire manual before using this product. The filter must be installed and operated as specified. Evoclear Cartridge Filters do not require a media such as sand or D.E powder to operate, instead the filter contains a cartridge element which is easily removed to clean or replace.
- Page 4 All filtration systems will operate at different pressures depending on the pool hydraulics. You will need to clean the filter cartridge element once the pressure gauge has reached 50kPa (7.2psi) above the operating pressure. Evoclear Trim Series Cartridge Filters have a maximum operating pressure of 350kPa (50psi).
- Page 5 CLEANING To clean the filter cartridge element, carry out the following procedure: 1. Unscrew the filter lid locking ring and remove the lid off the filter tank. In some cases where pressure has built up you will need to release air from the tank using the air bleed screw before removing the lid.
- Page 6 TROUBLESHOOTING Fault/Problem Possible Causes and Remedies Insufficient disinfectant level. Incorrect pool chemistry. Heavy bathing and/or dirt loads. Water is not clear Incorrect flow. Insufficient running times, increase pump run time. Filter is dirty. Clean per instructions, see Page 3. Hole in filter element. Check strainer baskets for debris.
- Page 7 NOTES...
- Page 8 1/33 Hinkler Drive, Highland Park QLD 4211, Australia +61 7 5565 0000 Unless otherwise indicated, copyright in the content of this document is the property of Evolution Water and Lighting Solutions under Australian copyright law. Unless otherwise indicated, content may not be reproduced or transmitted without our prior written permission.
