World Dryer VMax V2 Manual

VMax V2
®
High-Speed Vertical Hand Dryer

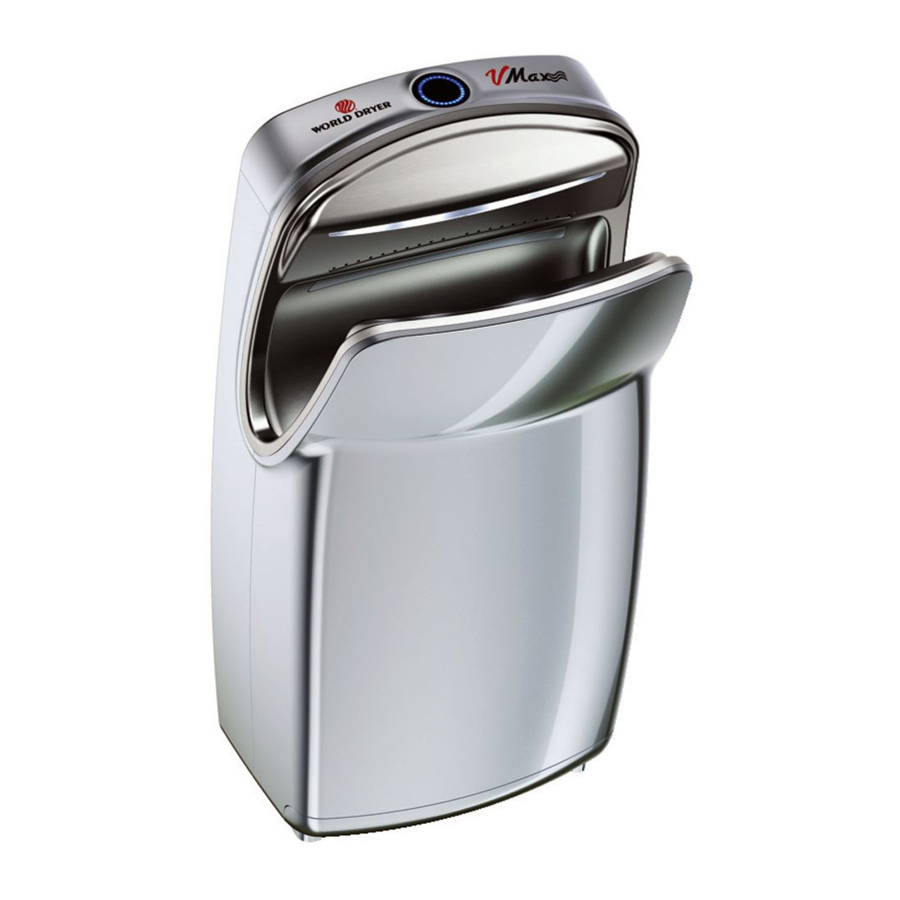

VMax V2 is a 'hands in' vertical style high speed hand dryer powered
®
by a brushless DC motor and featuring a HEPA filter system, wider
hand drying cavity opening and antimicrobial technology. Dedicated
water collection reservoir eliminates water from collecting on the
floor and reducing maintenance. Quiet operation is ideal for sound
sensitive areas.
Product Features and Benefits
• 10 - 12 second dry time
• 25% wider hand drying cavity opening creates a comfortable user experience
without touching sides of hand dryer
• Combines HEPA filtration and antimicrobial technology to clean the air
and enhance dryer sanitation
• Collects residual water in a dedicated reservoir and prevents wet
floor hazards
• Intelligent LED display signals when filter should be changed or water
reservoir emptied through LED display
• Quiet operation ideal for sound sensitive areas
• Simple mounting bracket for easy installation
• Surface-mounted ADA compliant suitable for walkways and pathways
• Durable and vandal resistant
• IP33 ingress protection against water
• Brushless DC motor
Architecture & Engineering Specifications
VMax V2 hand dryer supplied by World Dryer Corporation shall have a
power consumption of 1000 watts powered by a thermally-protected
brushless DC motor. Hand dryer shall nominally deliver 70 CFM (119
m3/h) air flow at a velocity of 335 mph (539 km/h). Dryer shall be activated
by an automatic infrared sensor with a 20 second vandal shut-off. Dryer
exterior shall be constructed of high impact ABS polymer incorporating
antimicrobial technology to inhibit the growth of bacteria, mold and
fungus. Dryer will incorporate a drain inside the drying cavity with a water
collection tray, replaceable HEPA filter¹ and odor neutralizing tablet² and
LED display for identifying operation and servicing requirements.
Cover Material Cover Finish/Kit
High Impact ABS Silver
HEPA filter with odor
neutralizing tablet (1 pk)
208-240V
110-120 V
(60 Hz)
# V-649A
#93-10385
Electrical specifications:
Amps
Watts
Region/
Certifications
* The water collection tray will fill with water with hand dryer
use. The LED Display will indicate when the water collection
tray is full and needs emptying. High washroom traffic may
require more frequent emptying of the water collection tray.
This hand dryer is equipped with a replaceable cartridge
1,2
containing a HEPA filter and an odor neutralizing tablet. The
LED display panel will indicate when the HEPA filter requires
replacement. High washroom traffic may require more
frequent replacement of the HEPA filter.
220-240V
Unit Weight
(50 Hz)
19.5 lbs.
#V48-629CE2
8.9 kgs
0.17 lb.
0.08 kg
120V 208-240V
10
1000 N/A
Hz 60 Hz
North North
America America
Unit Size
Shipping
(HxWxD)
Weight
inch/mm
25 lbs.
13"x26.25"x9.25"
11.3 kgs 330x667x235mm
0.2 lb
6.29"x1.57"x2.44"
0.09 kg 160x40x62mm
220-240V
4.3
1000
50/60 Hz
EU
Middle East
Shipping Size
(HxWxD)
inch/mm
16"x28.5"x12"
406x724x305mm
6.29"x1.57"x2.44"
160x40x62mm
