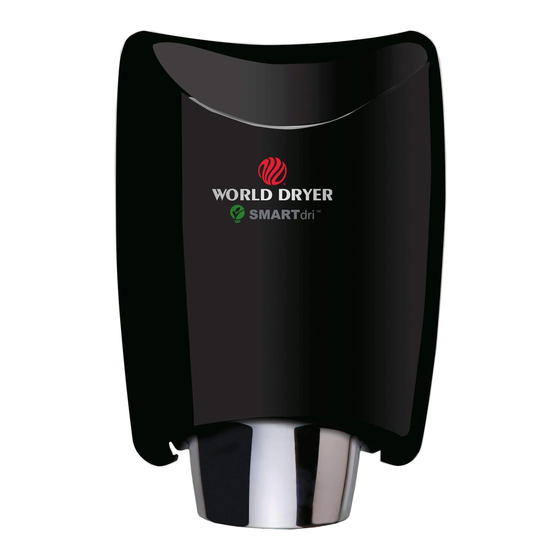

High-Efficiency Intelligent Hand Dryer
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or service
the product described. Protect yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and/or property damage. Retain instructions for future reference.
Por favor lea y guarde estas instrucciones. Léalas cuidadosamente antes de tratar de montar, instalar, operar o dar mantenimiento al producto aquí
descrito. Protéjase usted mismo y a los demás observando toda la información de seguridad. No seguir las instrucciones puede ocasionar daños, tanto
personales como materiales. Guarde estas instrucciones para referencia en el futuro.
Lire et conserver ces instructions. Les lire attentivement avant de commencer à assembler, installer, faire fonctionner, réparer ou entretenir l'appareil
décrit. Pour se protéger et protéger autrui, observer toutes les consignes de sécurité. Le fait de négliger d'appliquer ces instructions peut entraîner des
blessures et/ou des dommages matériels. Conserver ces instructions pour consultation ultérieure.
HandDryerSupply.com | 804-859-2498 | sales@handdryersupply.com
SMARTdri
Secamanos inteligente altamente eficiente
Sèche-mains intelligent à haute efficacité
All K and K4 Series
Todos los modelos K y de la Serie K4
Ensemble de la série K et K4
World Dryer Corporation
5700 McDermott Drive
Berkeley, IL 60163 U.S.A.
800-323-0701
www.worlddryer.com
1
™
Advertisement
Related Manuals for World Dryer smartdri k series
Summary of Contents for World Dryer smartdri k series
- Page 1 Pour se protéger et protéger autrui, observer toutes les consignes de sécurité. Le fait de négliger d’appliquer ces instructions peut entraîner des blessures et/ou des dommages matériels. Conserver ces instructions pour consultation ultérieure. World Dryer Corporation 5700 McDermott Drive Berkeley, IL 60163 U.S.A.
-
Page 2: Electrical Specifications
Description World warm air hand dryer, powered by a universal brush motor, delivers up to 850 watts of drying power and incorporates an integrated element for heated air. The dryer controls provide for (3) distinct levels of motor operation (Hi, Med and Low) and the option of operation with, or without, the heating element. -
Page 3: Parts List
Parts List Repair Parts List For SMARTdri™ Hand Dryer Description Part Number Kit, Sensor 49-10108K Kit, Dryer Controls 16-KK Kit, Motor- 120V 32-K120K Kit, Motor - 240V 32-K240K Kit, Heating Element - 120V 21-1120K Kit, Heating Element - 240V 21-1240K Kit, Plenum Cap Assy 47-0818092AK Air Filter... -
Page 4: Installation
Installation 1. Disconnect the power source. 2. Using Table 2 to determine the recommended mounting height, select a mounting location for the hand dryer where no reflective surfaces or objects (such as a hand basin) are directly under the infra-red sensor eye. The infra-red sensor eye is visible from the bottom of the dryer and is located just inside the dryer’s nozzle area. -
Page 5: Maintenance And Cleaning Instructions
The adjustable dryer controls are located on the printed circuit board inside the dryer’s wiring compartment. To adjust dryer controls: 1. Disconnect the power source. 2. Use the security hex key supplied to turn the cover mounting screws clockwise to remove the cover from the dryer. 3. -
Page 6: Troubleshooting Chart
Limited Warranty World LIMITED FIVE – YEAR WARRANTY. World Warm Air Hand Dryer, Model covered in this manual, is warranted by World Dryer Corporation to the original user against defects in workmanship or materials under normal use for 5 years after date of purchase. Any part which is determined to be defective in material or workmanship and returned to an authorized service location, as World designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced at World’s option.
