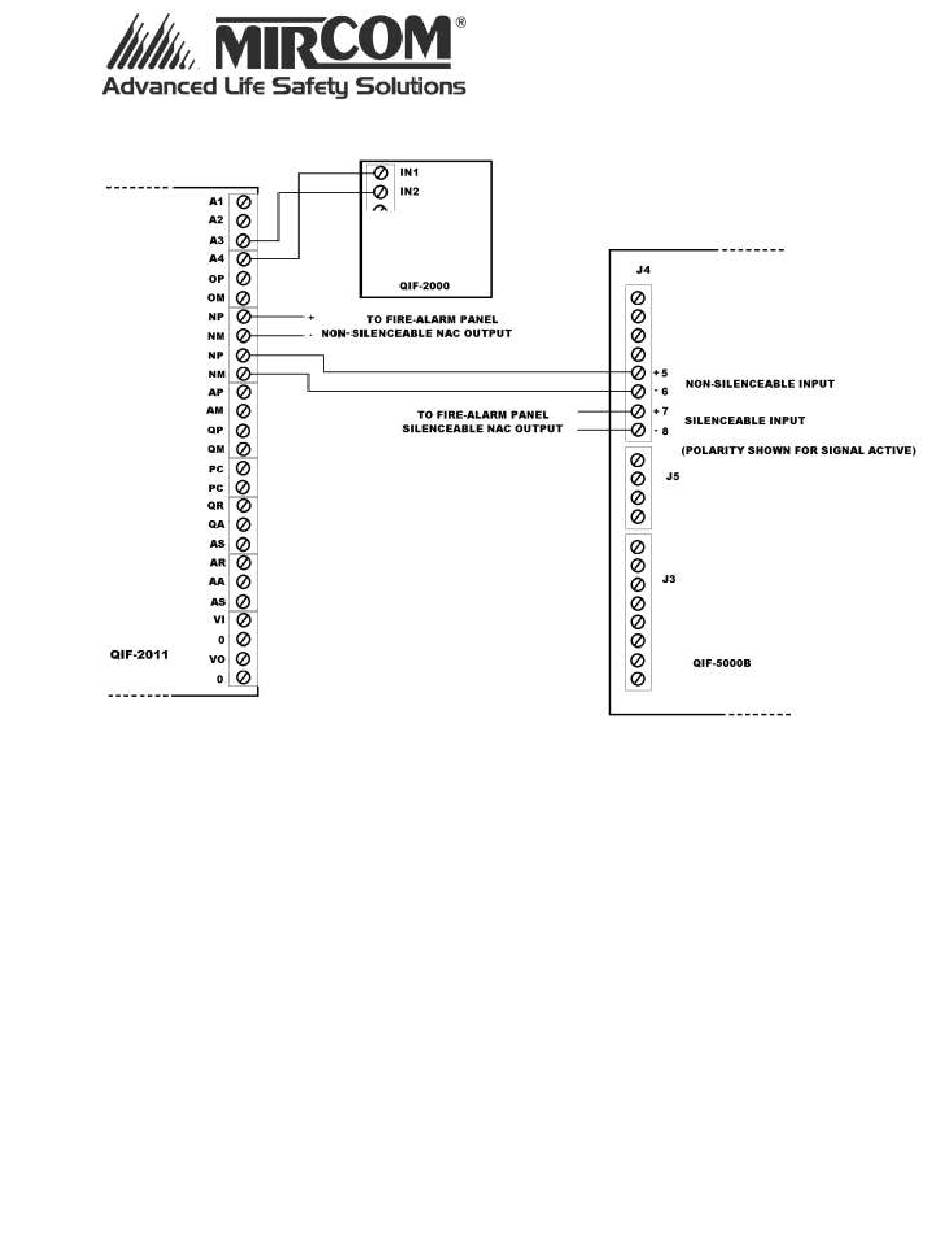

Figure 4: QIF-2011 to QIF-2000, QIF-5000 and Fire-Alarm panel connections for typical system
described above. See text and figure 7 for other configurations.
Note: Only connections used for the QIF-2011 are shown. For other connections on the
QIF-5000B J3 to J5 terminal blocks please consult QX-5000 manual (Mircom document
number LT-616).
LT-6041 Rev 3
