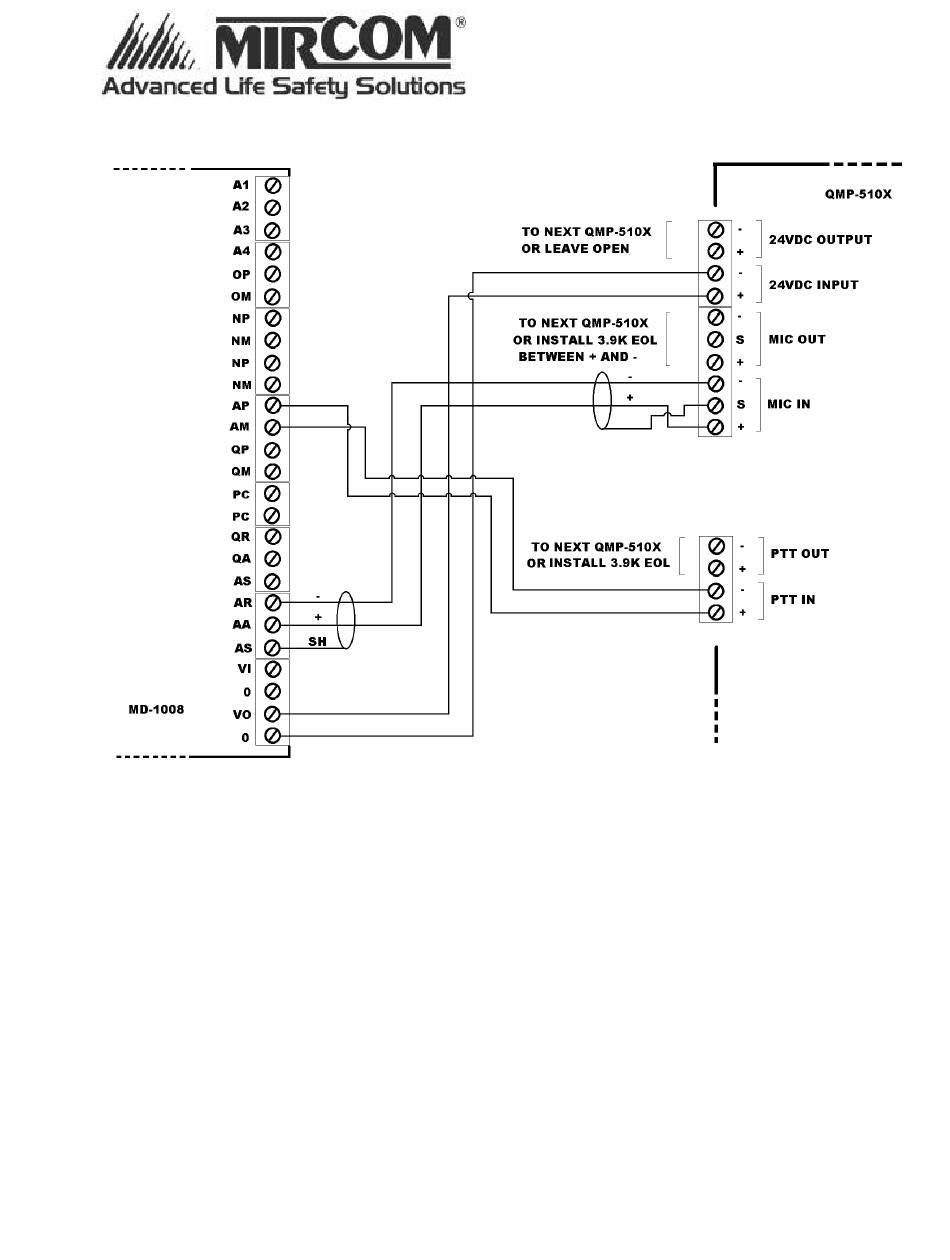

Figure 6: QIF-2011 to QMP-510X connections for any signal configuration.
Note: only connections used for the QIF-2011 are shown. For other connections on the
QMP-510x terminal blocks and connectors please consult QX-5000 manual (Mircom
document number LT-616).
LT-6041 Rev 3
