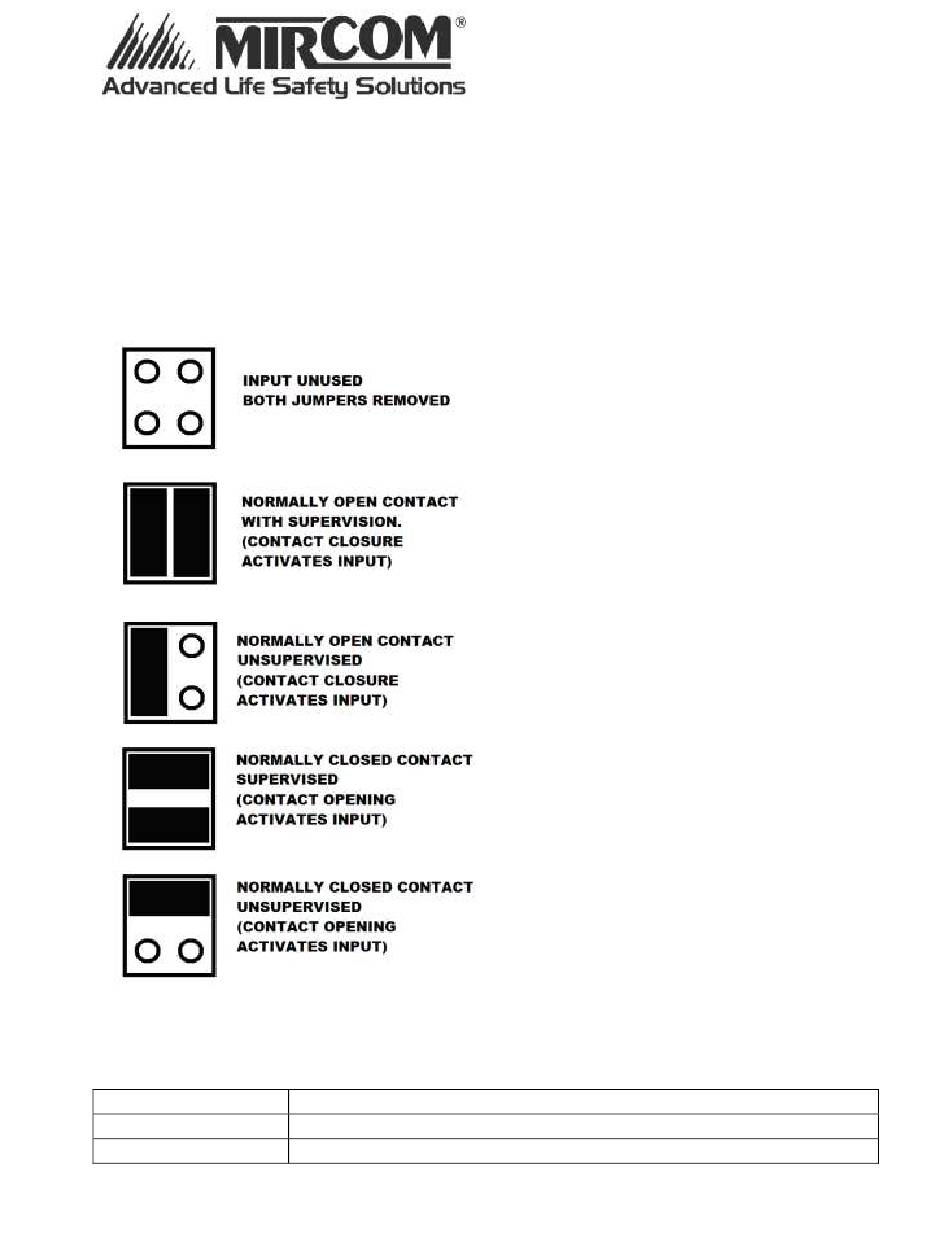

Figure 2: X1 TO X4 JUMPERS CONFIGURATION (WITH BOARD VIEWED AS IN FIGURE 1)
LEDs and potentiometers identification tables
LEDs , POTs
OK
CS
Green led indicating that interface is operational
Yellow LED indicating short circuit detection on one of the signals
Function
LT-6041 Rev 3
