The wiring diagram will be modified as follow:

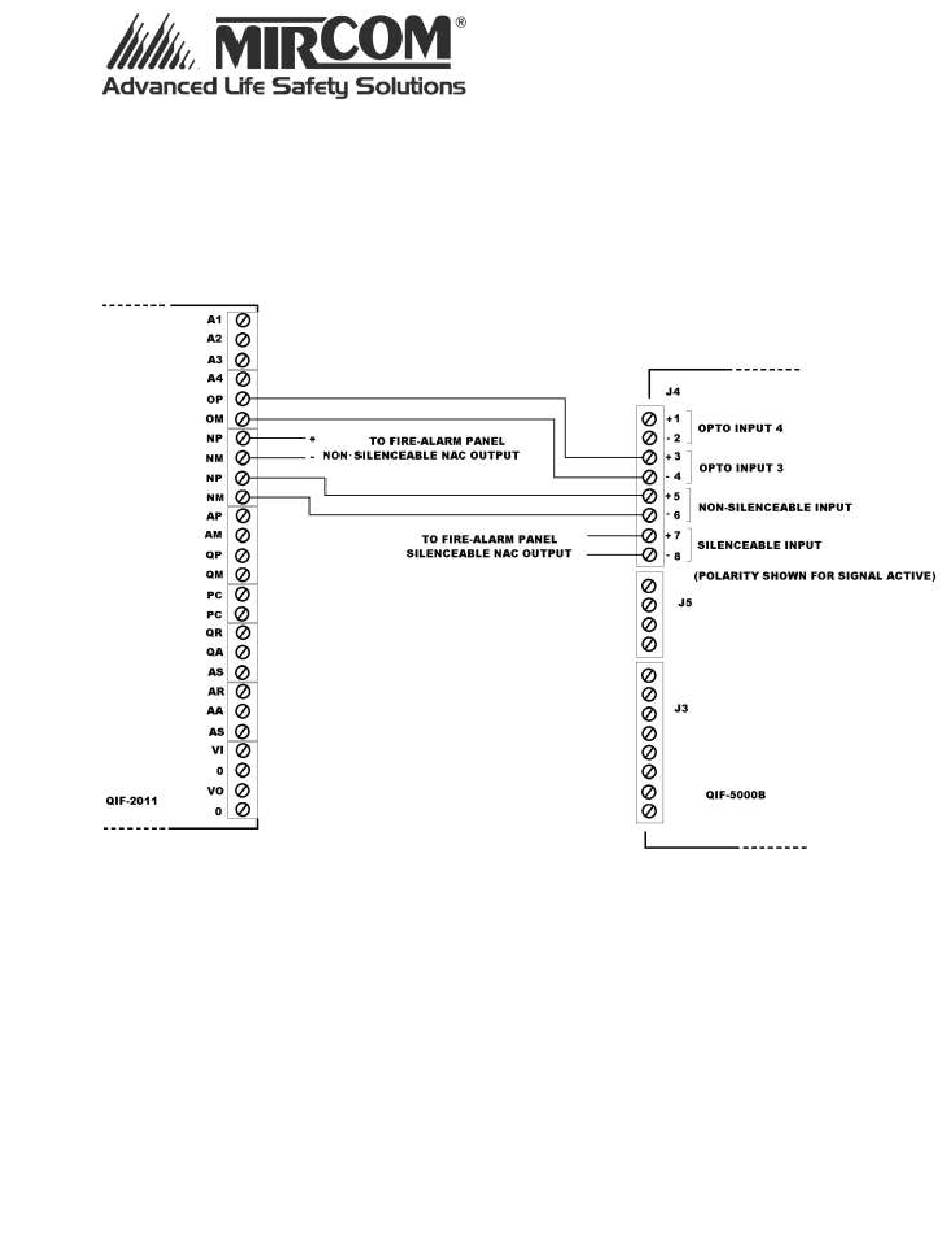

Figure 7: Wiring diagram, external signals select all zones. No QIF-2000 is required.
ANC-5000 connection:
The QIF-2011 can also be used to connect external signal sources to the ANC-5000
FleXNet audio controller. The signal side connections remain the same but the
connections to the ANC-5000 must be done as per figure 8. Priority jumpers must be
removed and jumper JW27 on the QIF-2011 must be set as shown. Also, jumpers JW7
and JW8 must be installed on the ANC-5000. The basic scheme shown is suitable for all
call operation of the FleXNet. For selective operation and other FleXNet configurations
issues , see the FleXNet installation and configuration instructions.
