WIRING:
The following diagrams provide wiring information for the QIF-2011 for the typical
configuration described above.

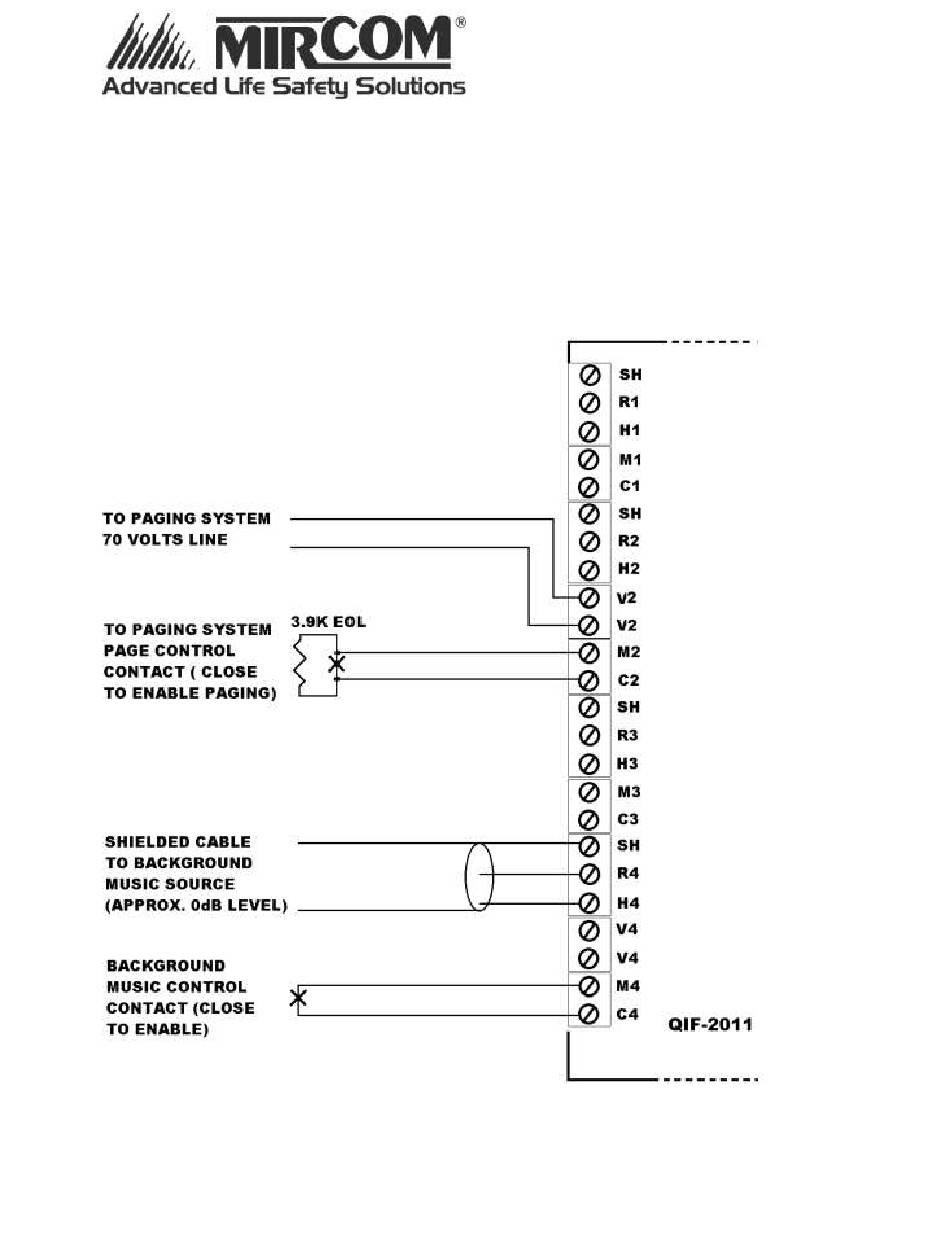

Figure 3: QIF-2011 connection on signal side for the typical system described. Please see text for
other possibilities.
LT-6041 Rev 3
