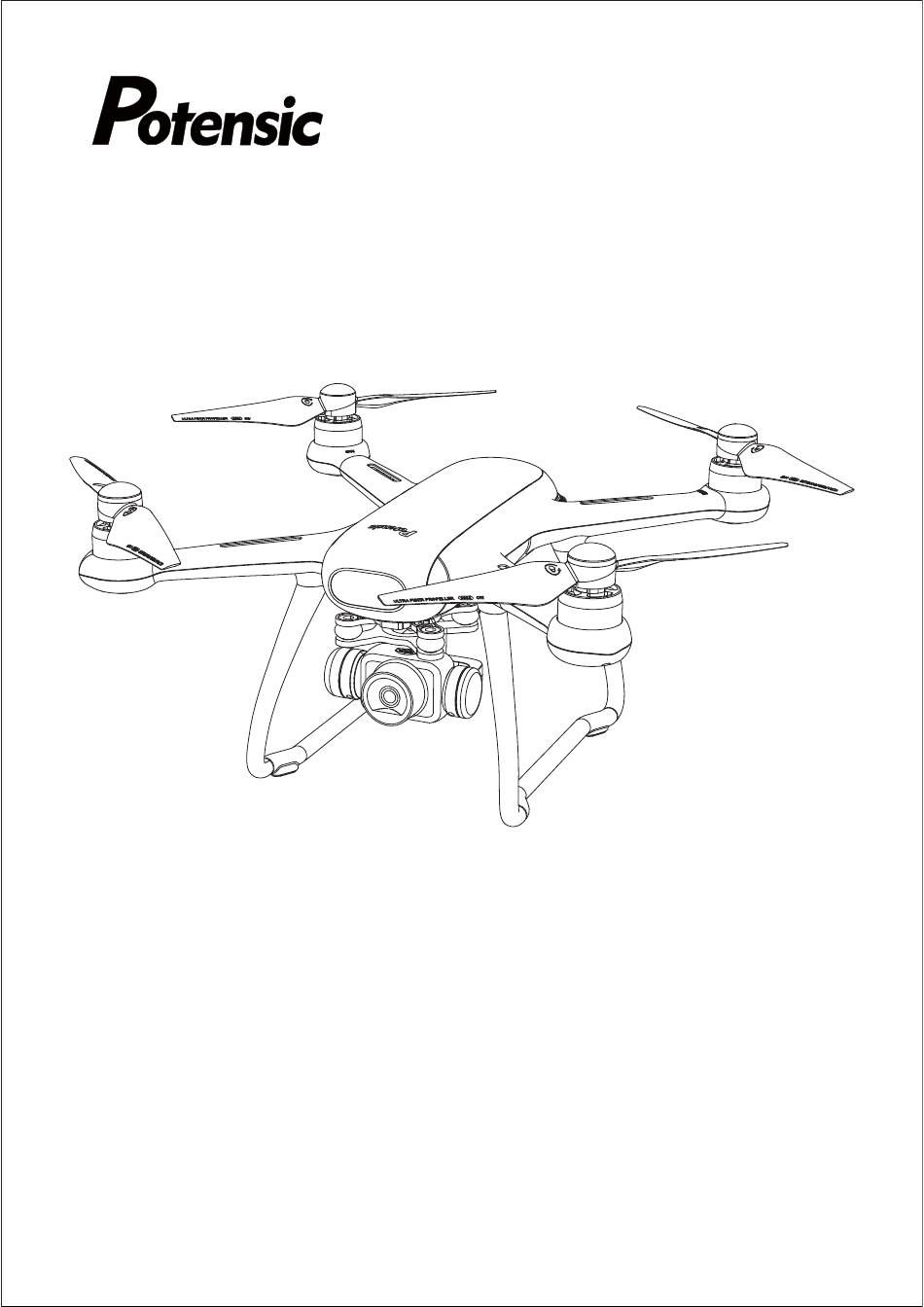

- Page 1 Dreamer 1 User Manual www.potensic.com...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION MAINTENANCE PACKAGE INCLUDES PRODUCT DIAGRAM BLADES BATTERY CAMERA MICRO SD CARD REMOTE CONTROLLER PHONE CLIP REMOTE CONTROLLER CHARGING CONTROLLING THE AIRCRAFT DRONE APP “POTENSIC PRO” CONNECTION SPECIFICATION DRONE STATUS AND INDICATOR STATUS DESCRIPTION NOTES AND DISCLAIMER WARNING... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the Potensic Dreamer 1 Drone. Please check this user manual carefully and save it for future reference. If you need any help, please contact our support team and provide your product Amazon/Website order number. Potensic Dreamer 1 is equipped with intelligent flight control system, which can realize the functions of way-point flight, intelligent follow, and auto return home. -
Page 4: Product Diagram
PRODUCT DIAGRAM... -
Page 5: Blades
Blade Shock Absorber Plate 2.7K Camera Landing Gear Front LED Dreamer LED Light Foot Pad Motor Tail LED Smart Battery Power Indicator Power Button (Short press once and then long press 2s to turn on / off the drone) BLADES Press down and rotate according to the marked direction of blade locking until it can not be turned;... -
Page 6: Battery
BATTERY BATTERY CHARGING When the drone's power is too low, please fly the drone back and charge the battery in time. Connect the adapter to charge the battery. When charging, the indicator flashes. When full charged, the battery indicator lights will be off. The full charging time is about 2 hours. WARNING 1. -
Page 7: Camera
CHARGING INDICATOR STATE LED 1 LED 2 LED 3 LED 4 Current battery capacity 0%~25% 25%~50% 50%~75% 75%~100% Full Flashing status Lights out state CAMERA 1. Install the shock absorber ball on the shock absorber board and install the anti-tripping device. 2. -
Page 8: Remote Controller
500 meters and display high-definition pictures on mobile devices in real time through App “Potensic Pro”. The remote controller is equipped with rechargeable lithium batteries, which can work... - Page 9 Folding Antenna Receive transmission signals Controlling Stick (Mode1 ) Pull the left stick up or down to take off and land the drone, pull the stick left or right to let the drone turn left or turn right. Short press the left stick to switch GPS mode or Attitude mode. Pull the right stick up or down to control the drone fly forward or backward, pull the stick left or right to let the drone left side or right side fly.
-
Page 10: Phone Clip
PHONE CLIP Pull the remote control plate, and put your phone or tablet into it. Phone clip telescopic range: 97-178mm. REMOTE CONTROLLER CHARGING CHARGING INSTRUCTIONS Connect the Micro USB interface of the remote controller to charge the most commonly used 5V/2A charger. -
Page 11: Controlling The Aircraft
CONTROLLING THE AIRCRAFT There two remote control modes for controlling the aircraft, mode 1 and mode 2. And the remote control is set to mode 1 by default. MODE 1 Right Stick Left Stick Forward Down Backward Left Right Turn Left Turn Right MODE 2 Left Stick... -
Page 12: Drone App "Potensic Pro
DRONE APP “POTENSIC PRO” FOR ANDROID USERS Please search and download the drone App “Potensic Pro” in Google Play or scan the below QR to download the App. Compatible with phone with Android 5.0 or above version. For Android FOR IOS USERS Please search and download the drone App “Potensic Pro”... - Page 13 DRONE FLIGHT MODE Dreamer 1 uses a new generation of Potensic flight control, which supports the following flight modes GPS mode: Accurate hover, pointing flight and other intelligent flight modes are realized under the GPS mode. Under the GPS mode, when the GPS signal is strong, it can be positioned accurately.
- Page 14 Attitude Ball / Map Camera Setting Flight Mode Setting Flight Height One-button Return Flight Distance One-button Take-off / One-button Landing Flight Speed Camera Pitch Adjustment Drone vertical flight speed FLIGHT MODE Circle Flight Mode Normal / Sport Mode Switch Headless Mode Switch Way-point Flight Mode Following Mode Unlock / Lock...
-
Page 15: Connection
INTRODUCTION OF SETUP INTERFACE About Smart Battery Main Controller Settings More Calibration Settings Remote Controller Settings FLIGHT Matters Needing Attention When Flying 1. Make sure the remote controllers, smart flight batteries and mobile devices fully charged. 2. Check whether the fuselage is complete and the propeller is properly installed. 3. - Page 16 The steps are as follows: First: Enter the Potensic App settings interface, click on the second column, and select the geomagnetic calibration in the list. The left front and left rear lights start to slowly flash, indicating that the calibration program is started.
- Page 17 Pic 1 Pic 2 GYROSCOPE CALIBRATION During the flight, if the flying direction of the drone is deviated greatly, you need to place the drone on the horizontal flat and start gyroscope calibration. First: open the App, and click Second: choose “Gyroscope Calibration”. At this time, the drone will enter calibration status, then, the drone 4 LED lights will slowly flash 3 seconds.
- Page 18 Unlock the drone first: Push the left stick to down right and right stick down left together (Pic 1) to unlock the drone or just click the unlock key on the App. Then long press 1 second "take off and land" key, you will hear a short "di" sound or click icon on the APP.
- Page 19 App Control: Click the "HOME" icon on the APP to start One-button return. And click the icon to cancel auto-return. *Low power return: Intelligent Return: When the power of the aircraft is less than 20%, the aircraft will automatically start the return mode. At this point, the remote control will emit “di” sounds, the battery power icon flashes on the App, and the Return icon lights up when the drone is flying back.
- Page 20 How to Start Headless Mode Put the drone on the ground with its head forward and its back against you, then pair the drone with the remote control. And click the headless mode button on the App to enter the headless mode and click the headless mode icon again to exit.
- Page 21 FOLLOWING FLIGHT MODE Click the icon to start the Following Mode. The normal flight altitude must be more than 5 meters, and the GPS signal is greater than or equal to 6 stars. The drone will follow the mobile phone. WAY-POINT FLIGHT MODE Click the icon to start the Way-point Mode.
-
Page 22: Specification
SPECIFICATION DRONE Flying weight: 740g Maximum ascending speed: 5 m/s (sport mode); 3 m/s (normal mode) Maximum descent speed: 3 m/s (sport mode); 3 m/s (normal mode) Maximum horizontal flight speed: 8 m/s (sport mode); 5 m/s (normal mode) Flight time: about 30 minutes Working ambient temperature: 0°- 40°... - Page 23 SMART BATTERY CHARGER Capacity: 3000mAh Rated input: 100-240V ~ 50 / 60Hz, 1.5A Voltage: 15.2V Rated output: 17.5V, 1.5A Battery type: Li-Po 4S Rated power: 26.25 W Energy: 45.6Wh Battery overall weight: 255g Working environment temperature: -10°~40°C Maximum charging power: 26.25W COMMON PROBLEMS AND SOLUTIONS Problems Solutions...
-
Page 24: Drone Status And Indicator Status Description
DRONE STATUS AND INDICATOR STATUS DESCRIPTION Light Status The First Second Normal Status The 2nd Seconds Time Four lights continue Low Battery of drone Light on Light off Continuous loop..to flash slowly Four LEDs continuousfast Binding state / boot Light on Light off Light on... - Page 25 3. Only operate with included parts for intended use. Please use the original parts made by Potensic for any re-equipping or maintenance to ensure flying safety. Please operate and use only under the scope of the product function permitted.
-
Page 26: Warning
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer-ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •... - Page 27 12. Built-in rechargeable 3.7V Li-ion battery included in the transmitter. 13. Only the original charger made from our factory can be used. 14. Charger is not a toy. 15. When charging the battery, please conduct it under the surveillance of an adult. Please also keep it far away from any combustible object when charging.
