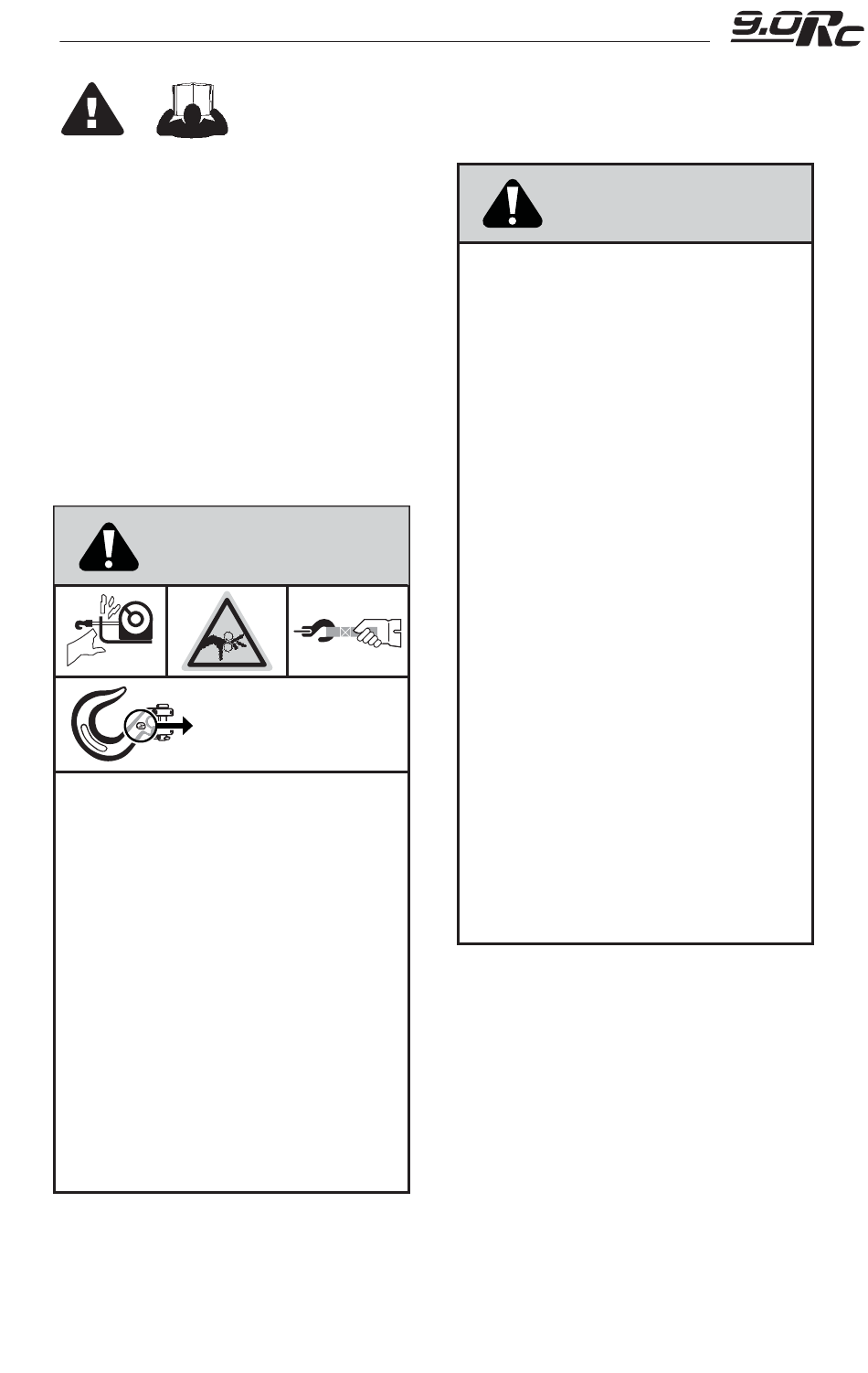

As you read these instructions, you will see
WARNINGS, CAUTIONS, NOTICES and NOTES.
Each message has a specific purpose. WARNINGS are
safety messages that indicate a potentially hazardous
situation, which, if not avoided could result in serious
injury or death. CAUTIONS are safety messages that
indicate a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. A
CAUTION may also be used to alert against unsafe
practice. CAUTIONS and WARNINGS identify the
hazard, indicate how to avoid hazard, and advise of the
probable consequence of not avoiding the hazard.
NOTICES are messages to avoid property damage.
NOTES are additional information to help you complete
a procedure. PLEASE WORK SAFELY!
WA R N I N G
_ _
>
MOVING PARTS ENTANGLEMENT
HAZARD
Failure to observe these instructions
could lead to severe injury or death.
To avoid injury to hands or fingers.
• Always keep hands clear of rope, hook
loop, hook and fairlead opening during
installation, operation, and when spooling in
or out.
• Always use extreme caution when handling
hook and rope during spooling operations.
• Always use supplied hook strap whenever
Spooling rope in or out, during installation or
operation to avoid injury to hands or fingers.
• Always use a hook marked 3/8" (9.5 mm)
"
3
/
(9.5
)
mm
8
WA R N I N G
IMPACT AND MOVING PARTS
ENTANGLEMENT HAZARD
Failure to observe these instructions
could lead to severe injury or death.
• Always know the Working Load Limit (WLL)
of your rope
• Never Exceed the WLL of 9500 lbs.
(4309 kg) or shock load this rope
• Always determine the suitability of a rope
for a specific application
• Never use this rope on a winch with a rated
line pull greater than 9500 lbs (4309 kg).
• Never use a rope if Worn, Damaged,
abused, Overloaded, Improperly Maintained
or over 1 Year OLD
• Never stand within the recoil (snapback)
area
• Never use rope over a rough surface
without Chafe Protection
• Never bend rope around unprotected, sharp
corners
• Always use Warn Hawse Fairlead
P/N 71851
• Always replace rope every 12 months with
P/N 71717
• Always replace Warn Hawse Fairlead if
damaged or abused with P/N 71851
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9.0Rc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

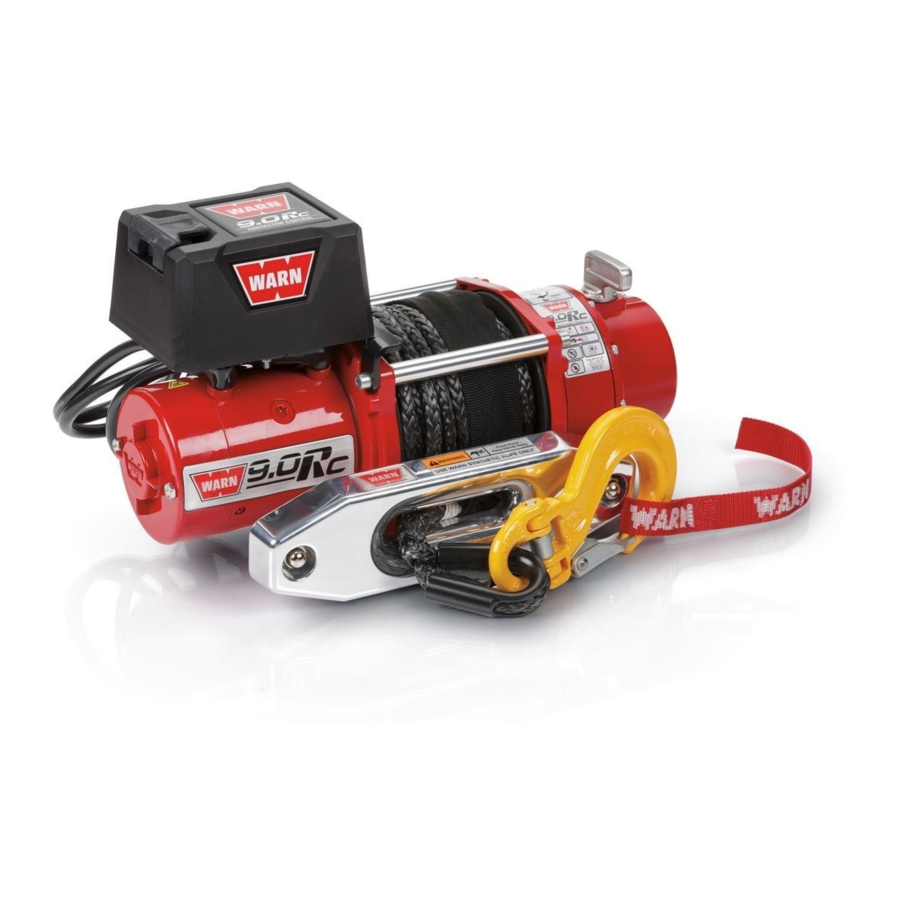

Summary of Contents for Warn 9.0Rc

  • Page 1 • Always replace rope every 12 months with could lead to severe injury or death. P/N 71717 • Always replace Warn Hawse Fairlead if To avoid injury to hands or fingers. damaged or abused with P/N 71851 • Always keep hands clear of rope, hook...
  • Page 2 GENERAL SAFETY PRECAUTIONS GENERAL SAFETY PRECAUTIONS WA R N I N G C AU T I O N C AU T I O N C AU T I O N MOVING PARTS ENTANGLEMENT MOVING PARTS ENTANGLEMENT MOVING PARTS ENTANGLEMENT HAZARD HAZARD HAZARD Failure to observe these instructions...
  • Page 3 Solenoid Pack Installation • Mount the control pack according to the instructions included in the WARN mounting system kit. Use the bracket included in the kit. • To mount the control pack directly to the winch, order control pack bracket part number 26368.
  • Page 4 INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS Mounting requirement & hardware: CLUTCH OPERATION C AU T I O N When the clutch is engaged the gear train is coupled (1) Smooth and flat, thickness = 1/4" (6.35 mm) to the rope drum and power may be transferred (2) 3/8"...
  • Page 5 Rope strand showing full volume. wire rope. immediately, and replace it with undamaged rope, Warn P/N 71717. Broken or cut strands reduce the rope’s strength throughout its length — not just in the area of damage. As a general rule, OPERATOR’S SAFE WORKING STATIONS...
  • Page 6 To avoid severe injury or death: the rope with one hand; carefully push the rope neutral. Release the parking brake while 1. Mount the Warn Aluminum Hawse Fairlead to to the side of the drum the rope is attached to applying moderate brake pedal pressure.
  • Page 7 Spool in the remainder for Always replace rope every 12 storage. months with new Warn synthetic • Unassisted - Arrange the rope to be spooled so it rope ONLY. P/N 71717. will not kink or tangle when spooled. Be sure any rope on the drum is tightly and evenly layered.
