Summary of Contents for Broan Rangemaster 629004

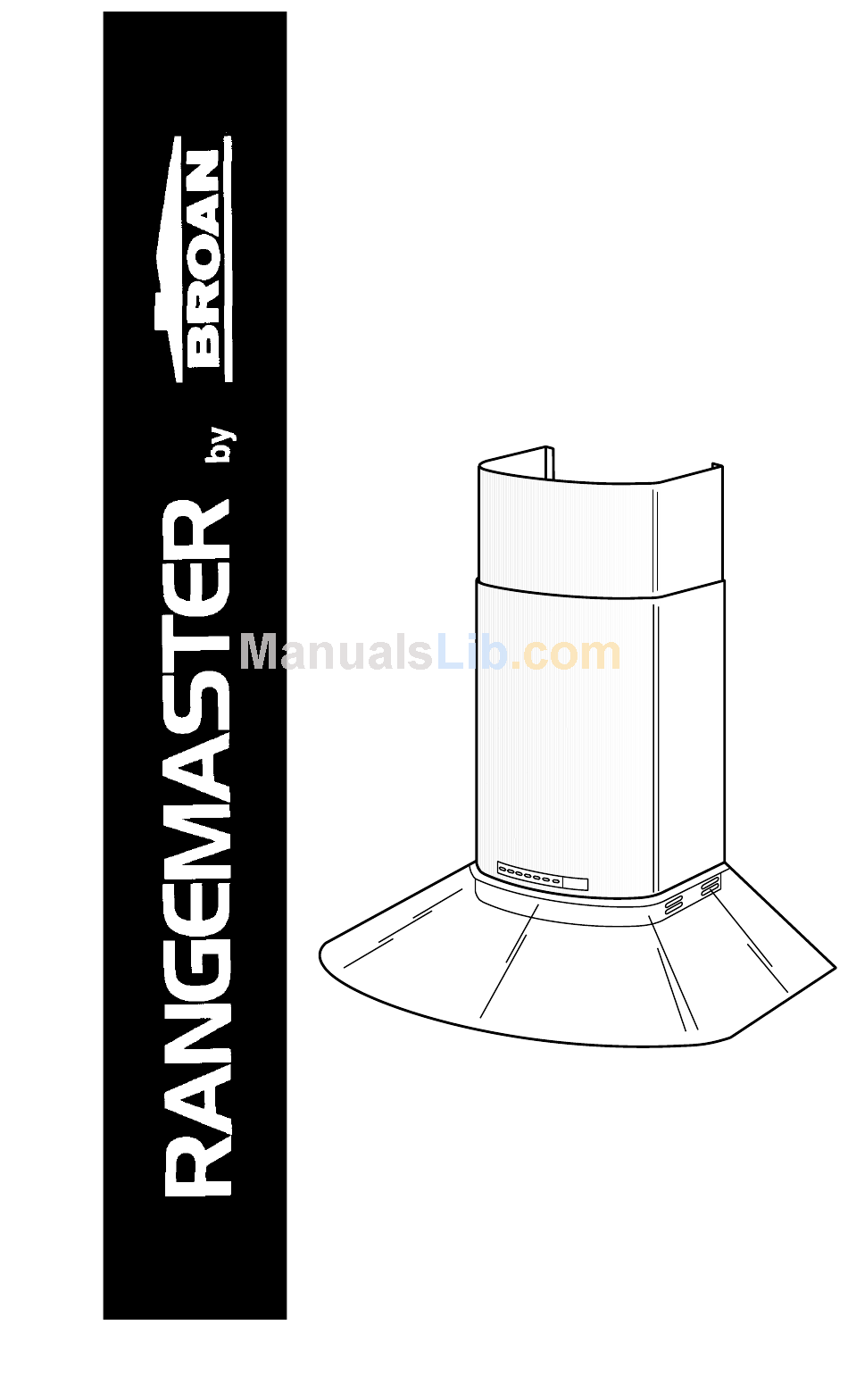

- Page 1 Model 629004 04306121 BROAN MFG. CO., INC. 926 W. State St. Hartford, WI 53027 - 1 - 99042528A...
- Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE, ELEC- TRICAL SHOCK, OR INJURY TO PER- SONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have ques- tions, contact the manufacturer at the address or telephone number listed in the warranty.
-
Page 3: Install The Ductwork
INSTALL THE DUCTWORK NOTE: To reduce the risk of fire, use only steel ductwork. 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most efficiently. 3. -
Page 4: Connect Ductwork
WIRING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. 1. Remove the wiring box cover. Remove a knockout from the wiring box. 2. -
Page 5: Install Decorative Flue
INSTALL DECORATIVE FLUE 1. Hold the decorative flue near the top of the hood. Connect the switch cable from the hood to the decorative flue, as shown. 2. Slide the lower decorative flue section downward and into the channels on the hood. -
Page 6: Maintenance
MAINTENANCE Grease Filter Clean the grease filter frequently. Remove the grease filter by pulling it downward. Use a warm detergent solution. Grease filters are dishwasher safe. Note: Avoid damage to bulbs by carefully align- ing filter openings with bulbs. Interior Hood Cleaning DISCONNECT POWER TO HOOD BEFORE CLEANING! 1. -
Page 7: Operation
OPERATION Controls The hood is operated using the (7) push-but- tons located at eye-level, on the front of the deco- rative flue. The light switch turns the halogen lights on and off. The blower on-low / off switch turns the blower on to its previous running speed. -
Page 8: Warranty
This warranty supersedes all prior war- ranties. To qualify for warranty service, you must (a) notify Broan at the address stated below or telephone: 1-800-637-1453, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. -
Page 9: Service Parts
SERVICE PARTS 62000 SERIES RANGE HOOD KEY NO. PART NO. BE3401653 B02002340 B02300730 B02300668 B03292344 B03294033 B082300521 B03295000 B03202007 B03292292 B02000756 B02000295 B02000296 BE3334543 B03202430 99090857 BE3334250 BE3334252 B08087279 B003181863 BE3400561 BE3334555 B08086610 B02300727 B03292296 B02300717 B08088319 B02300206 BE3401651 B06001769 B06106290 B06106272 DESCRIPTION... - Page 10 SERVICE PARTS 62000 SERIES RANGE HOOD - 10 -...
