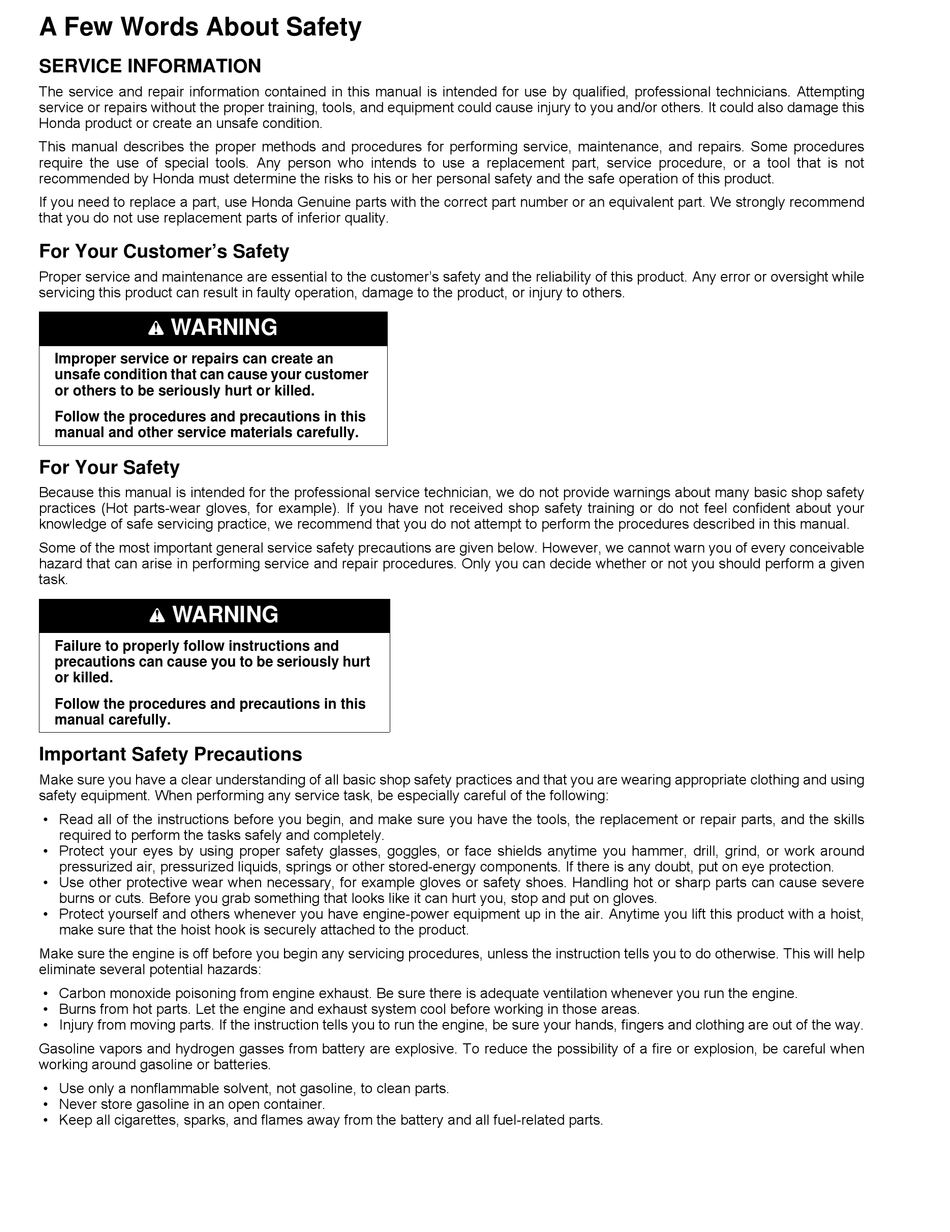

A Few Words About Safety
SERVICE INFORMATION
The service and repair information contained in this manual is intended for use by qualified, professional technicians. Attempting
service or repairs without the proper training, tools, and equipment could cause injury to you and/or others. It could also damage this
Honda product or create an unsafe condition.
This manual describes the proper methods and procedures for performing service, maintenance, and repairs. Some procedures
require the use of special tools. Any person who intends to use a replacement part, service procedure, or a tool that is not
recommended by Honda must determine the risks to his or her personal safety and the safe operation of this product.
If you need to replace a part, use Honda Genuine parts with the correct part number or an equivalent part. We strongly recommend
that you do not use replacement parts of inferior quality.
For Your Customer's Safety
Proper service and maintenance are essential to the customer's safety and the reliability of this product. Any error or oversight while
servicing this product can result in faulty operation, damage to the product, or injury to others.
 WARNING
Improper service or repairs can create an
unsafe condition that can cause your customer
or others to be seriously hurt or killed.
Follow the procedures and precautions in this
manual and other service materials carefully.
For Your Safety
Because this manual is intended for the professional service technician, we do not provide warnings about many basic shop safety
practices (Hot parts-wear gloves, for example). If you have not received shop safety training or do not feel confident about your
knowledge of safe servicing practice, we recommend that you do not attempt to perform the procedures described in this manual.
Some of the most important general service safety precautions are given below. However, we cannot warn you of every conceivable
hazard that can arise in performing service and repair procedures. Only you can decide whether or not you should perform a given
task.
 WARNING
Failure to properly follow instructions and
precautions can cause you to be seriously hurt
or killed.
Follow the procedures and precautions in this
manual carefully.
Important Safety Precautions
Make sure you have a clear understanding of all basic shop safety practices and that you are wearing appropriate clothing and using
safety equipment. When performing any service task, be especially careful of the following:
• Read all of the instructions before you begin, and make sure you have the tools, the replacement or repair parts, and the skills
required to perform the tasks safely and completely.
• Protect your eyes by using proper safety glasses, goggles, or face shields anytime you hammer, drill, grind, or work around
pressurized air, pressurized liquids, springs or other stored-energy components. If there is any doubt, put on eye protection.
• Use other protective wear when necessary, for example gloves or safety shoes. Handling hot or sharp parts can cause severe
burns or cuts. Before you grab something that looks like it can hurt you, stop and put on gloves.
• Protect yourself and others whenever you have engine-power equipment up in the air. Anytime you lift this product with a hoist,
make sure that the hoist hook is securely attached to the product.
Make sure the engine is off before you begin any servicing procedures, unless the instruction tells you to do otherwise. This will help
eliminate several potential hazards:
• Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you run the engine.
• Burns from hot parts. Let the engine and exhaust system cool before working in those areas.
• Injury from moving parts. If the instruction tells you to run the engine, be sure your hands, fingers and clothing are out of the way.
Gasoline vapors and hydrogen gasses from battery are explosive. To reduce the possibility of a fire or explosion, be careful when
working around gasoline or batteries.
• Use only a nonflammable solvent, not gasoline, to clean parts.
• Never store gasoline in an open container.
• Keep all cigarettes, sparks, and flames away from the battery and all fuel-related parts.

Advertisement

loading

Related Manuals for Honda FG110

Summary of Contents for Honda FG110

  • Page 1 Honda must determine the risks to his or her personal safety and the safe operation of this product. If you need to replace a part, use Honda Genuine parts with the correct part number or an equivalent part. We strongly recommend that you do not use replacement parts of inferior quality.
  • Page 2 CONTENTS This manual covers service and repair procedures for all SPECIFICATIONS Honda FG110 Mini-Tillers and incorporates supplement Z. All information contained in this manual is based on the latest SERVICE INFORMATION product information available at the time of printing. We reserve the right to make changes at any time without notice.
  • Page 3 Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 4 4,200 ± 200 rpm Capacity 63 g min (2.2 oz min, 70 cc min) Reduction case grease Type NLGI #2 general purpose grease Revised: October 2014 Date of Issue: February, 2005 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 5 0.58 L (0.15 US gal) PTO shaft rotation Counterclockwise (from PTO shaft side) *Actual fuel consumption will vary, depending on engine load conditions. Revised: October 2014 Date of Issue: February, 2005 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 6 FG110 2. WIRING DIAGRAM BLACK BLACK GROUND GREEN IGNITION IGNITION SWITCH SPARK COIL PLUG GROUND GROUND Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 7 FG110 NOTES Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 8 4. SERVICE SPECIFICATIONS ....1. SERVICE RULES • Use genuine Honda parts or their exact equivalent. Lower quality parts can damage the tiller or reduce its performance.
  • Page 9 The engine serial number is located on the cylinder block near the carburetor. Refer to the engine serial number when ordering parts and when making technical inquiries. The frame serial number is located on the right hand side of the fender. ENGINE SERIAL NUMBER FRAME SERIAL NUMBER Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 10 Secondary coil 6.1 - 9.3 kΩ —————————— Flywheel air gap 0.3 - 0.5 mm (0.012 - 0.020 in) —————————— Clutch Lining thickness 2.0 mm (0.08 in) 1.0 mm (0.04 in) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 11 STANDARD FASTENERS THREAD DIAMETER N•m kg-m ft-lb 3 mm Screw 4 mm 4 mm Flange bolt and nut 5 mm 6 mm 5 mm CT flange bolt 6 mm Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 12 07VPF-ZM3020A  Guide 07VPF-ZM3030A Piston pin installation  Rocker arm replacement tool 070PF-Z0HA100 Rocker arm removal/installation     Revised: March, 2015 Date of Issue: February, 2005 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 13 (P. 3-8) Disassemble/clean (P. 4-3) IGNITION COIL faulty. Inspect (P. 7-2) SPARK PLUG faulty. Inspect (P. 3-5) TRANSMISSION binding. Check for jammed tines or debris wrapped in the tines. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 14 Poor performance at low speed. CARBURETOR clogged. Readjust (P. 3-8) Disassemble/clean (P. 4-3) AIR CLEANER clogged. Clean (P. 3-4) Inspect (P. 3-5) SPARK PLUG faulty. VALVE CLEARANCE incorrect Readjust (P. 3-7) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 15 • Check for defective valves 9-5). • Check for worn piston, piston rings, or cylinder 9-6). Install the spark plug and start the engine according to the starting procedure. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 16 • Check for excessive carbon in the combustion chamber(P. 9-10). • Check for worn piston, piston rings, Normal cam pulley, or cylinder 9-6). Start the engine according to the starting procedure. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 17 4-3). Normal Plugged Check for a plugged spark arrester. Clean and replace as necessary 3-6). Normal Start the engine according to the starting procedure. Date of Issue: February, 2005 2-10 © American Honda Motor Co., Inc.
  • Page 18 Do not touch the flywheel when pulling the recoil starter. Cylinder 0.9~1.1 MPa (9.2~11.2 kgf/cm², compression 131~159 psi) @ 2,000 rpm* * Decompressor mechanism engaged Date of Issue: February, 2005 2-11 © American Honda Motor Co., Inc.
  • Page 19 Lever not operating properly Spring deformed Metering lever spring Spring not installed properly Diaphragm damaged Metering diaphragm Gasket faulty Stuck valve Inlet needle valve Worn valve Foreign matter stuck in valve Date of Issue: February, 2005 2-12 © American Honda Motor Co., Inc.
  • Page 20 (1) Service more frequently when used in dusty areas. (2) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures. (3) Log hours of operation to determine proper maintenance intervals.
  • Page 21 3-3). Do not overfill. Engine oil capacity 80 cc (2.7 US oz, 2.8 Imp oz) Recommended operating ambient -5°C ~ 40°C (23°F ~ 104°F) temperature 5. Screw in the filler cap/dipstick securely. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 22 The SAE oil viscosity and service category are in the API label on the oil container. Honda recommends that you use API service category SJ (or later) oil. 3. AIR FILTER...
  • Page 23 3. Place the filter in a resealable plastic bag and pour about 1 oz. (1/4 of a bottle) of Honda Air Filter Oil into the bag. 2. RINSE THOROUGHLY, Seal the bag closed and knead the bag for one minute or AND DRY COMPLETELY.
  • Page 24 Overtightening the spark plug can damage the threads in the cylinder head. 9. Attach the spark plug cap. 10.Install the fan cover and tighten the 5 mm hex bolt securely Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 25 Replace the spark arrester if it is damaged. SCREEN 4. Install the spark arrester in the reverse order of removal. 5. Install the fan cover and tighten the captive 5 mm hex bolt securely Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 26 To increase valve clearance, screw out. Torque: 4.9 N•m (0.5 kgf•m, 3.9 lbf•ft) To decrease valve clearance, screw in. c. Recheck the valve clearance. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 27 ADJUSTER Throttle lever free play 5 ~ 8 mm (3/16 ~ 5/16 inch) LOCK 2. Tighten the lock nuts and recheck throttle lever free play. NUTS Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 28 5. Replace the filter if it is damaged or excessively dirty. 6. Rinse sediment from the fuel tank with nonflammable solvent. 7. Insert the fuel filter in the fuel tank, and install the fuel tank cap. FUEL FILTER Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 29 9. Install the lock pin through the round side of the tine shaft hole, then turn it over to lock it in place. FILL HOLE AIR VENT SCREW SCREW OPENING OPENING Date of Issue: February, 2005 3-10 © American Honda Motor Co., Inc.
  • Page 30 REASSEMBLY: BLOCK Before installation, clean inside SHORT the case with compressed air OIL TRAP PLATE 5 mm FLANGE NUT (2) AIR CLEANER ELEMENT CLEANING: (P. 3-3) AIR CLEANER COVER Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 31 1. Remove the top cover 6-1). 2. Remove the air cleaner 4-1). CARBURETOR GASKET Do not reuse. 14.8 x 2.4 mm O-RING TUBE CLIP CARBURETOR ASSEMBLY DISASSEMBLY/REASSEMBLY: 4-3). ADJUSTMENT: 3-8), 4-5). Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 32 Replace the pump diaphragm if it is deteriorated or damaged. INLET SCREEN REASSEMBLY: Remove dust and other foreign material from the screen before installation. FUEL RETURN TUBE INSTALLATION PIPE Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 33 METERING LEVER ADJUSTMENT: (P. 4-5) PUMP BODY REASSEMBLY: Wash the passage with nonflammable solvent to remove dust and other foreign material before installation. Do not clean by blowing air. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 34 Specification 1.18 ~ 1.50 mm (0.046 ~ 0.059 in) PUMP BODY METERING LEVER 3. If the measurement is outside the specification, adjust by bending the metering lever. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 35 FG110 NOTES Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 36 2. STARTER PULLEY ..... . 1. RECOIL STARTER a. REMOVAL/INSTALLATION RECOIL STARTER ASSEMBLY 5 x 16 mm SOCKET BOLT (3) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 37 RECOIL STARTER SPRING RECOIL STARTER HANDLE DISASSEMBLY: Take care not to allow the recoil starter spring to pop out. Wear gloves during operation. REASSEMBLY: (P. 5-3)  RECOIL STARTER CASE Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 38 HOOK  RECOIL STARTER REEL 6. Hold the starter case and rotate the starter reel three turns in the direction of the arrow for preliminary winding. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 39 SET SCREW 10.Pull the starter handle several times to make sure the PROJECTION swing arm operates properly. SWING ARM SWING ARM COLLAR Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 40 2. Install the clutch assembly, fan cover, and ignition coil. 3. Adjust the ignition coil air gap 7-3). 4. Install the recoil starter and engine cover. DRIVER TORQUE WRENCH (Commercially available) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 41 (0.14 US gal, 0.12 Imp gal) MATING SURFACES Low-perm vertical type: 0.54  (0.14 US gal, 0.12 Imp gal) Revised: October 2014 Date of Issue: February, 2005 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 42 2. Slide the cover off the engine. TOP COVER 5 mm COVER BOLT b. INSTALLATION 1. Slide the cover onto the engine. 2. Tighten the 5 mm captive cover bolt. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 43 3. Install the two 5 mm self-locking nuts on the studs. 4. Install the 5 x 10 mm socket bolt through the air exhaust guide. 5. Check the muffler exhaust port for damage. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 44 2. CLUTCH ASSEMBLY ....1. IGNITION COIL a. ASSEMBLY/DISASSEMBLY IGNITION COIL INSPECTION: P. 7-3 ADJUSTMENT: P. 7-3 4 x 14 mm SOCKET BOLT (2) 3.9 N•m (0.4 kg-m, 2.9 lb-ft) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 45 1. Attach one lead of the tester to the terminal inside the spark plug cap and the other tester lead to the iron core. 2. Measure the secondary resistance of the ignition coil. Resistance 6.1 ~ 9.3 kΩ Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 46 6. Adjust the gaps at both the right and left sides of the ignition coil simultaneously so they are equal. 0.3 ~ 0.5 mm 0.3 ~ 0.5 mm (0.012 ~ 0.020 in) (0.012 ~ 0.020 in) MAGNETS Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 47 WASHER (2) 6 x 15 mm CLUTCH WASHER (2) 5 x 20 mm FAN COVER SOCKET BOLT (3) FLYWHEE CLUTCH L SIDE 6.4 N•m (0.7 kgf•m, SIDE 4.6 lbf•ft) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 48 TORQUE: 9.8 N•m (1.0 kgf•m, 7.2 lbf•ft) c. CLUTCH INSPECTION Measure the thickness at the center of the clutch lining. Standard Service limit 2.0 mm (0.08 in) 1.0 mm (0.04 in) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 49 3. Hold the flywheel with a commercially available strap wrench. Position the fulcrum at the flywheel magnets. 4. Install the 7 mm flange nut to the specified torque. TORQUE: 14.7 N•m (1.49 kgf•m, 10.7 lbf•ft) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 50 TIMING BELT INSTALLATION: HEAD COVER SEAL Check that the belt is not worn or cracked and do not bend or twist the belt.  CAM PULLEY  CAM PULLEY SHAFT Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 51 5. Remove the timing belt from the cam pulley. 6. Remove the cam pulley. CAM PULLEY c. CAM PULLEY INSTALLATION TIMING Install the cam pulley and timing belt in the reverse order of BELT removal. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 52 Check the oil return passages of the cylinder head inner cover for restrictions. If they are restricted, clean with compressed air. Arrows in this diagram identify the oil return passages. SIDE Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 53 5 x 20 mm SOCKET BOLTS (2) D13.0 TUBE CLIP (2) 6.4 N•m (0.7 kgf•m, 5.1 lbf•ft) 3 x 5 mm SCREW 5 x 30 mm SOCKET BOLTS (4) 6.4 N•m (0.7 kgf•m, 5.1 lbf•ft) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 54 VALVE VALVE PLATE 3. Check the oil outlet valve and stopper plate for contamination and foreign material. CUTOUTS STOPPER 3 x 5 mm SCREW PLATE Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 55 2. Make sure the bolt heads are fully inserted into the cutouts in the shroud. 3. Attach the shroud to the cylinder block using three 5 x 16 mm socket bolts. SHROUD Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 56 OIL RINGS INSPECTION: (P. 9-2) (COMBINATION REASSEMBLY: (P. 9-2) RINGS CRANKSHAFT Install with the mark on the piston head facing the 10 mm (0.04 in) REASSEMBLY: (P. 9-4) carburetor side. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 57 1. Slide the piston pin over the push rod special tool and install PISTON PIN the guide special tool. PUSH ROD 07VPF-ZM3020A TOOLS: Push rod 07VPF-ZM3020A  Guide 07VPF-ZM3030A GUIDE 07VPF-ZM3030A Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 58 PISTON 8. If the right and left gaps are not equal, raise or lower the piston pin as needed. PISTON CONNECTING ROD Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 59 OIL SEAL 2. Install by aligning the oil seal projection with the groove in the cylinder block. 3. Install the lower crankcase 8-6). CRANK SHAFT PROJECTION CYLINDER GROOVE BLOCK Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 60 Do not interchange with the intake valve. INSTALLATION: Before installation, remove the carbon Do not interchange with the deposits and inspect the valve. exhaust valve. Revised: March, 2015 Date of Issue: February, 2005 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 61 0.015 ~ 0.056 mm 0.120 mm Top/Second (0.0006 ~ 0.0022 in) (0.0047 in) When any piston ring exceeds the service limit, replace all the piston rings as a set. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 62 (0.0004 ~ 0.0013 in) (0.0028 in) • CONNECTING ROD SMALL END I.D. Standard Service limit 7.978 ~ 7.989 mm Replace if exceeding the (0.3141 ~ 0.3145 in) standard value. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 63 Measure the free length of the valve spring. Standard Service limit 20.66 mm (0.8134 in) 20.00 mm (0.7874 in) Replace the springs if they are shorter than the service limit. Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 64 I.D. to obtain the valve stem-to-guide clearance. Valve Standard Service limit 0.015 ~ 0.048 mm 0.098 mm (0.0006 ~ 0.0019 in) (0.0039 in) 0.050 ~ 0.083 mm 0.120 mm (0.0020 ~ 0.0033 in) (0.0047 in) Date of Issue: February, 2005 © American Honda Motor Co., Inc.
  • Page 65 3. Attach a commercially available combustion chamber or equivalent. cleaning brush to an electric drill and clean the combustion chamber. Do not press the cleaning brush with force against the combustion chamber. Date of Issue: February, 2005 9-10 © American Honda Motor Co., Inc.
  • Page 66 The valve lifters and rocker arms cannot be reused after they are pressed apart. Always replace with new parts. Revised: March, 2015 Date of Issue: February, 2005 9-11 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 67 Check that the projection on the valve lifter and the rocker arm are in contact with the installation guide rib of the cylinder head. Revised: March, 2015 Date of Issue: February, 2005 9-12 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 68 5. Using a 14 mm wrench [1], tighten the push rod [2] until the rocker arm [3] comes to the cylinder head cover installation part. [4] Revised: March, 2015 Date of Issue: February, 2005 9-13 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 69 Install the adjusting screws and the adjusting screw lock nuts to the rocker arms. Install the cam pulley 8-2). Adjust the valve clearance 3-7). Revised: March, 2015 Date of Issue: February, 2005 9-14 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 70 1 piece lower assembly. (P. 3-8) handle pipe. FRAME JOINT WASHER (4) 3 x 160 mm HEX BOLT (2) Revised: October 2014 Date of Issue: February, 2005 10-1 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 71 There should be no continuity when the switch is in the ON position. 3. TINES a. DISASSEMBLY/REASSEMBLY SERVICE BULLETIN #9 => RIGHT OUTER TINE RIGHT INNER TINE LEFT INNER TINE LEFT OUTER TINE LOCK PIN (2) Date of Issue: February, 2005 10-2 © American Honda Motor Co., Inc.
  • Page 72 2. Slide the outside tine set off the tine shaft. 3. Secure the inner set of tines onto the tine shaft by placing the lock pins in the inside set of lock pin holes. Date of Issue: February, 2005 10-3 © American Honda Motor Co., Inc.
  • Page 73 6 x 45 mm FLANGE BOLT (4) LOCK PIN WHEEL (2) WHEEL BAR 12.7 mm PUSH NUT (2) 13 x 27 x 1 mm DRAG BAR THRUST WASHER (2) Date of Issue: February, 2005 10-4 © American Honda Motor Co., Inc.
  • Page 74 6.35 mm LOCK PIN LOCK PIN DRAG BAR LINCHPIN WHEEL BAR WHEEL (2) WHEEL SHAFT 9.53 mm PUSH NUT (2) Revised: October 2014 Date of Issue: February, 2005 10-5 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 75 When in the transport position, the unit can be transported over rough ground. This position also prevents the tines from dragging against grass or other vegetation. Revised: October 2014 Date of Issue: February, 2005 10-6 © American Honda Motor Co., Inc. © American Honda Motor Co., Inc.
  • Page 76 Use a press to center the driven gear over the RADIAL BALL splines on the tine shaft. BEARING (2) REASSEMBLY: Press into the transmission case until it seats against the ledge. Date of Issue: February, 2005 11-1 © American Honda Motor Co., Inc.
  • Page 77 REMOVE THE TINE SHAFT 1. Slide the tine shaft out of the transmission case. 2. Use a press to remove the driven gear from the tine shaft. Date of Issue: February, 2005 11-2 © American Honda Motor Co., Inc.
  • Page 78 NOTCH REASSEMBLY: 10.If the grass guards were removed, reinstall them over the Fit into the slot in the tine shaft. transmission case. 11. Lubricate the assembled transmission 3-10). Date of Issue: February, 2005 11-3 © American Honda Motor Co., Inc.
  • Page 79 FG110 Date of Issue: February, 2005 11-4 © American Honda Motor Co., Inc.
  • Page 80 Pulley ........5-5 Date of Issue: February, 2005 12-1 © American Honda Motor Co., Inc.
  • Page 81 Weight ........1-1 Wheel Installation/Removal ....10-4, 10-5 Date of Issue: February, 2005 12-2 © American Honda Motor Co., Inc.
