Operating Instructions

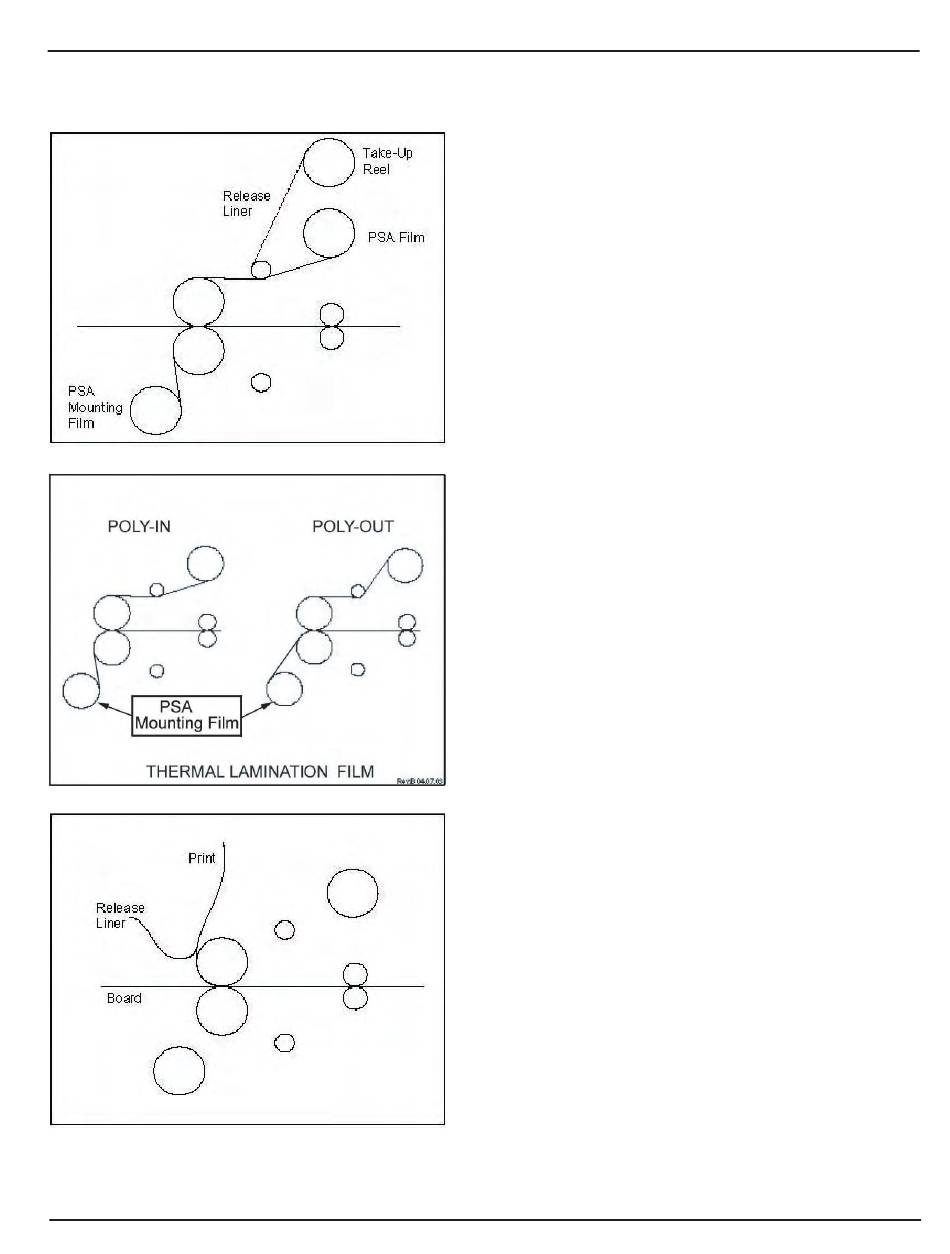

Fig. 21A
Fig. 21B
Fig. 22
©2004 General Binding Corporation
S
IGN
Decaling; PSA or Thermal film - Two
Passes
This two pass operation requires the use of pressure sensitive laminating
film on the bottom supply shaft and ether pressure sensitive or thermal
laminating film on the top supply shaft.
First Pass
1. Load the laminator as shown in Fig 21. NOTE: Thermal laminating
film does not have a release liner. Also, whether you are using Poly-in
or Poly-out film.
2. Adjust the Roller Pressure handle to the proper laminating setting.
3. Place the item to be laminated on the feed table, then press "RUN".
4. Guide the item into the heat rollers.
5. Once the item has cleared the back of the machine, press "STOP".
Remove the web and trim out the encapsulated product.
Second Pass
Refer to Fig 22 for the second pass process. Unweb laminator first.
1. Adjust the roller pressure handle to the proper Mounting setting and
set the motor speed to 3.
2. Peel back the leading edge of the release liner of the laminated item
approximately 1 inch.
3. Place the item on the mount board. Tack the exposed adhesive edge
of the item, from the center out, to the leading edge of the board.
4. Butt the leading edge of the board up against the heat rollers.
5. Drape the encapsulated item over the heat shield. Do not allow the
print to flop backwards.
6. Press "RUN" and immediately grasp the release liner for separation
as the board is pulled into the rollers. Do not allow the release liner
to be pull into the rollers.
7. After the board has cleared the rollers press "STOP".
M 25/44
AKER
Page 6-7
