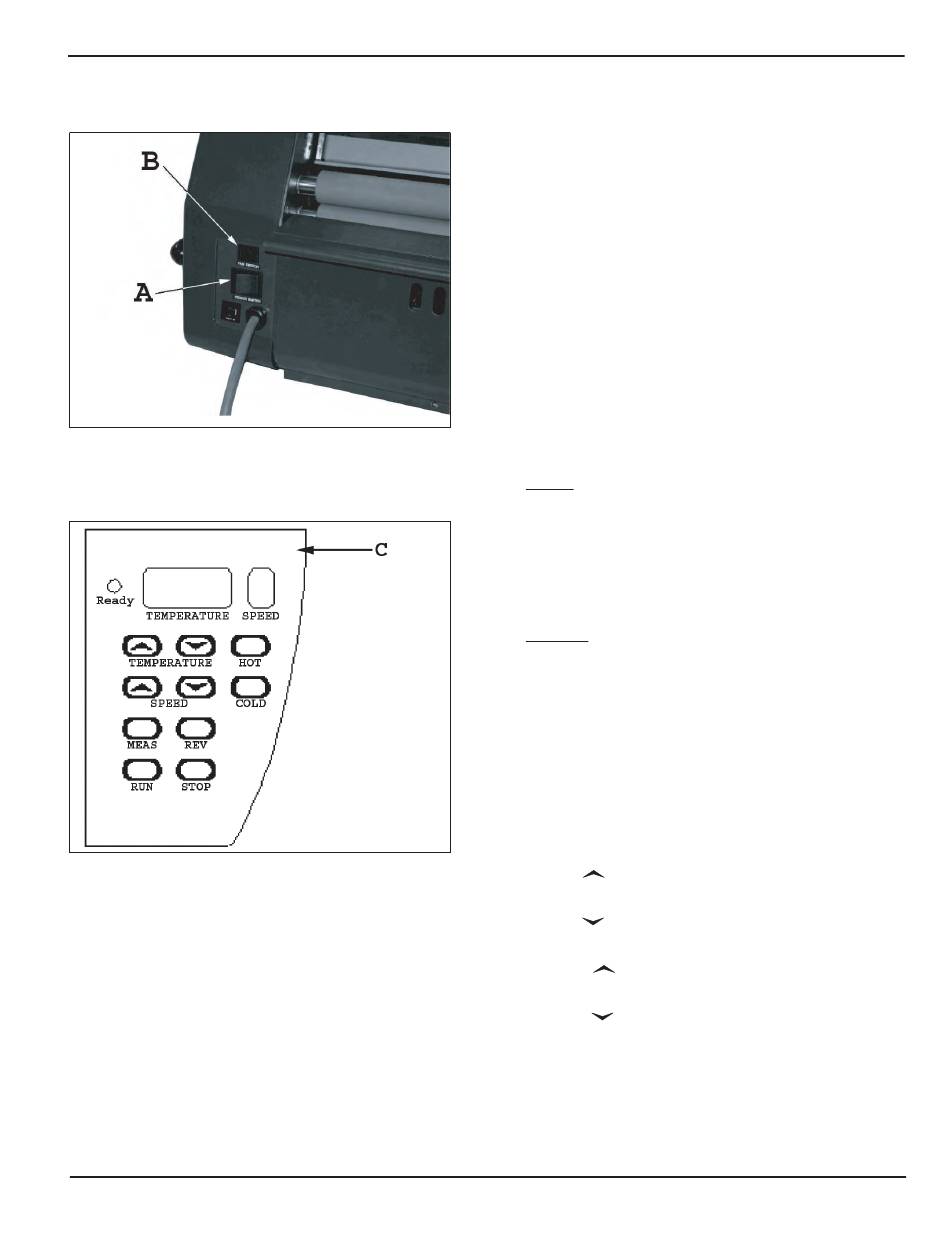

A. POWER SWITCH:
Fig.1.
Located at the back of the machine, the power switch applies power
to the laminator. The "LED" display panel will illuminate when position
marked "l" is pushed. The off position, marked "O", removes power from
the laminator.
B. FAN SWITCH:
Fig. 1.
The fan switch is located in the back of the machine. Power is applied
to the fans when the switch is set to the " I " position and the "RUN"
switch is pressed. The off position marked "O" removes power from
the fans.
C. CONTROL PANEL:
Fig. 2
Display:
"READY": Indicates when the laminator has sufficient heat. It flashes if
heat is out of range.
"SPEED": Indicates the speed setting of the motor.
"TEMPERATURE": Displays the programmed temperature setting in
either Fahrenheit or Celsius.
Functions:
"HOT": When pressed, automatically sets the temperature to 230 ºF
(110 ºC).
"COLD": When pressed, removes power to the heaters for cold
lamination.
"RUN": Activates rollers for normal operation.
"STOP": When pressed, stops the rotation of the rollers.
"REV": Reverses roller movement to clear jams and wrap-ups.
"MEAS": Used to read the current temperature of the rollers.
"TEMP" ( ): Overrides the preset temperature, increasing to the
desired setting.
"TEMP" ( ): Overrides the preset temperature, decreasing to the
desired setting.
"SPEED" ( ): When pressed, increases speed to the desired
setting.
"SPEED" ( ): When pressed, decreasing speed to the desired
setting.
