THIS DOCUMENT MUST ABSOLUTELY BE READ BEFORE STARTING THE
INSTALLATION.
INSTRUCT USER AND LEAVE THIS DOCUMENT WITH HEATER FOR
REFERENCE.

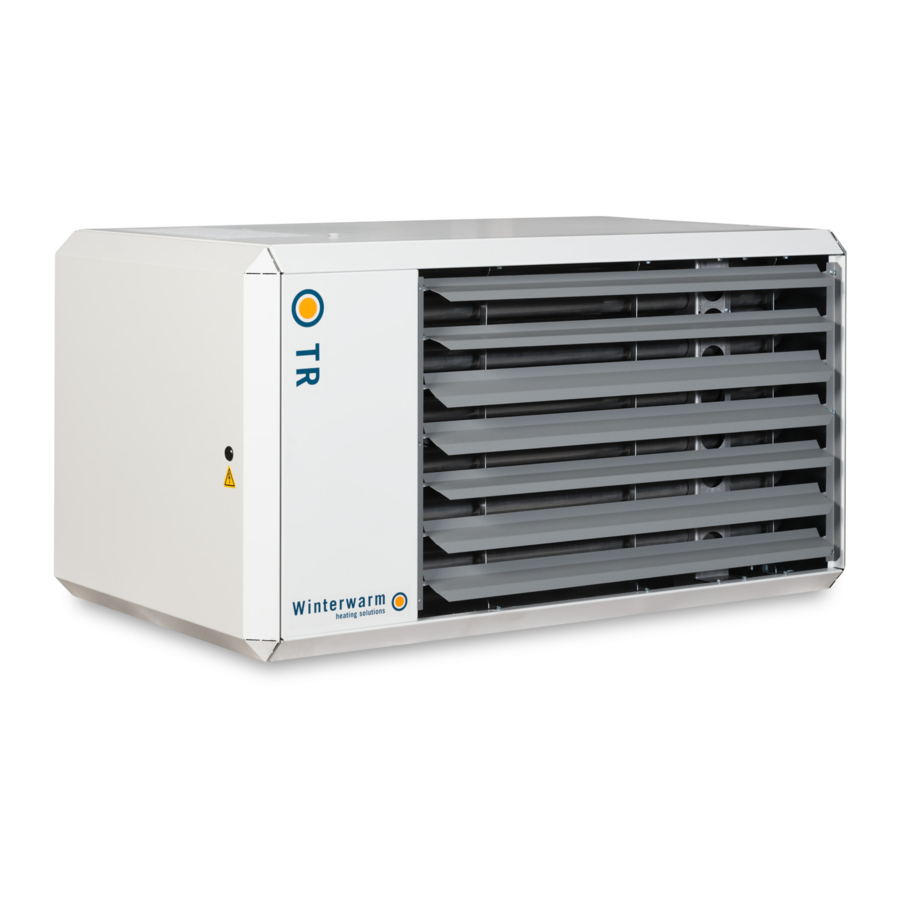

INSTRUCTION MANUAL
UNIT AIR HEATER
TYPE TR
Production from 2019
Date: 01-02-2019
Instruction manual version TR-GB-4001-a
Heaters for GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winterwarm TR10

  • Page 1 INSTRUCTION MANUAL UNIT AIR HEATER TYPE TR Production from 2019 THIS DOCUMENT MUST ABSOLUTELY BE READ BEFORE STARTING THE INSTALLATION. INSTRUCT USER AND LEAVE THIS DOCUMENT WITH HEATER FOR REFERENCE. Date: 01-02-2019 Instruction manual version TR-GB-4001-a Heaters for GB...
  • Page 2: Table Of Contents

    ELECTRICAL DIAGRAM 11.1 TR10-TR80 IAGRAM WITH 11.2 TR100-150 IAGRAM EXPLODED VIEWS AND SPARE PARTS 12.1 PARE PARTS 12.2 TR10 - TR20 XPLODED VIEW 12.3 TR24 – TR50 XPLODED VIEW 12.4 TR60 - TR100 XPLODED VIEW 12.5 TR125 & TR150 XPLODED VIEW...
  • Page 3: General

    2 General 2.1 Safety warnings The installation and maintenance of this air heater should be performed by an authorized qualified competent installer in accordance with this manual, using calibrated equipment. This heater must be installed in accordance with the manufacturer's instruction and local codes. The qualified installer needs to follow the local health and safety codes.
  • Page 4: Guarantee

    2.2.4 Protection from water, IP class The heater is not waterproof. This means that it may not be exposed to rain, spry or dripping water. The IP classification is IP00B 2.2.5 Protection against dust The appliance is not designed for use in a very dusty environment. Dust may accumulate in the heater and may cause a defect of the heater.
  • Page 5: Technical Details

    3 Technical details: Typ TR-4.5 (ERP2018) TR10 TR15 TR20 TR24 TR28 TR40 TR50 Maximum nominal heat input (Nett) 10,8 15,7 19,5 23,5 29,0 41,5 51,0 Minimum nominal heat input (Nett) 14,0 14,5 20,0 24,0 35,0 40,0 Maximum heat output 10,1...
  • Page 6 Diam M Electra Gas O" 4X M10 4X M10 Dimensions axial version TR10 TR15 TR20 TR24 TR28 TR40 TR50 1110 1110 1110 1040 1040 1130 1130 Ø80 Ø80 Ø80 Ø80 Ø80 Ø100 Ø100 Ø80 Ø80 Ø80 Ø80 Ø80 Ø100 Ø100 1/2“...
  • Page 7 Type TR-4.5 (ERP2018) TR60 TR80 TR100 TR125 TR150 Maximum nominal heat input (Nett) 65,5 81,0 105,0 132,0 152,0 Minimum nominal heat input (Nett) 46,0 56,0 73,5 95,0 110,0 Maximum heat output 60,8 74,8 98,3 121,8 140,6 Minimum heat output 41,8 50,6 67,0 86,2...
  • Page 8 Diam. M & N 4x M10 4x M10 Gas O Dimensions axial version TR60 TR80 TR100 TR125 TR150 1735 1735 1735 1735 1735 1130 1335 1335 1335 1335 1335 1050 1050 1050 1050 1050 1103 Ø130 Ø130 Ø130 Ø130 Ø130 Ø130 Ø130 Ø130...
  • Page 9: Installation

    The heaters are provided with M10 threaded • Min 650 SERVICE sockets as fixing points (see the dimension diagram). Use preferably the Winterwarm suspension kits. • Make sure that after fitting, there is no mechanical tension on any connecting gas or electric • supplies.
  • Page 10: Gas Connection

    4.4.2 Room thermostat The heater can only be controlled by special modulating Winterwarm room thermostats: The Multi Therm Comfort; modulating digital clock thermostat with optimiser. It can control 1 to 8 air heaters HR10 up to HR60 or 1 to 4 air heaters HR80 up to 120.
  • Page 11: Air Intake / Combustion Products Discharge

    ON/OFF thermostat The heater cannot be controlled with a simple on/off thermostat. In all cases the communication between heater and thermostat is based on a two wire, low- voltage connection. In the appliance the wire for the thermostat has to be connected to connection 4 and 5 (see also electrical wiring diagram) Attention: This also needs a change in the settings on the print board.
  • Page 12 45° bend as 1 meter. For further information regarding the flue system, please contact your supplier. 4.5.3 Flue terminals The following flue terminals are allowed: Vertical discharge Horizontal discharge TR10-28: DDV 80/125 art.nr. IA8202 CT 80/125 art.nr. IA8113 For h>0,5m above roof IA8218...
  • Page 13: Installation Roof Or Wall Terminal

    On the smaller heaters like the TR10 and TR15 the forming of condensate is a risk. When a heater often burns, and is placed in a normal heated room (temperature above 15 degrees) the condensate risk is low. When a heater is placed in a room that only needs to be just above 5 degrees, it will only burn for a very short time.
  • Page 14 1. Check the components on possible damages. 2. Determine where the flue terminal will be positioned. 3. Make a hole for the flue terminal. Ensure that no saw dust or dust gets into the appliance. 4. Carefully insert the flue terminal the outside. Attention: do not tum the cap. 5.
  • Page 15: Functioning Of The Unit

    The distance between the brackets should be spread out equally. Inside a shaft: • Check the components on possible damages or blockage.. Check that the pipe is under the right inclination. Mark the flue pipes and fresh air pipes to avoid a mistake. Check that the pipes extend minimum 50mm when going through a wall or other obstacle.
  • Page 16: Summer Ventilation

    Switch of delta-T-regulation Should this delta-T-regulation not be required, in the Menu Program Settings on the room thermostat this regulation can be switched off. See user manual of the special Winterwarm Room thermostat. 5.4 Summer ventilation It is possible to let the ventilator run on a certain speed in the summer.
  • Page 17: Start Through The Display In The Heater

    De-energise coil (disconnect wire) and set low burner pressure by turning screw (slot for screwdriver) Do not set lower than 3 mbar in order to avoid problems with inter-lightning of burnerstrips. TR10 up to 50 TR60 up to 125 Attention: Always check each burner pressure after any adjustment, as they influence each other.
  • Page 18: Problem Solving

    Always check the CO production of the heater!!! Too much CO usually means the S e t t i n g n u t h e x a g o n mixture is too rich. Adjust this if necessary b u r n e r p r e s s u r e h i g h with the two adjusters (see above) S e t t i n g s c r e w...
  • Page 19 L-20 Flame error Flame failure during burning detected L-25 Sensor Sensor heat exchanger fault error L-26 Sensor Flue sensor fault error L-27, 28, Internal Internal error 29, 30, error L-32 Sensor Sensor heat exchanger fault error L-33, 34, Internal Internal error 35, 36, error 37, 38...
  • Page 20 Case 6: The premix does not run Premix fan is Blocked or the wiring is bad • Premix fan is defective • Case 7: The pre-mix fan runs, but not the correct speed. Check if the fan runs smoothly. • Check the wiring.
  • Page 21: Maintenance

    Maintenance The heater must be inspected and cleaned regularly (once a year) by a qualified installer who understands this appliance. This is all the more important as the circumstances are heavier, especially in case of dust, humidity, high frequency of switching on/off etc. Activities: 9.1 General inspection Check the overall condition of the installation.
  • Page 22: Installation Of More Heaters On One Thermostat

    On the print the switches S1 and J14 need to be set as follows: S1 • switch 1 at the ON position, and J14 at 1. 1 2 3 4 5 6 7 8 The change of these switches need to be performed without power on the Heater, otherwise these settings take no effect.
  • Page 23: Electrical Diagram

    11 Electrical diagram 11.1 Diagram with TR10-TR80 J9- 1 Ignition J9- 3 ON / OFF J9- 2 thermostat J9- 4 (optional) J2- 1..6 J6- 1 MAINS supply J6- 8 Neutral J1- 1 J6- 2 Line (230Vac) J1- 5 J6- 9...
  • Page 24: Diagram Tr100-150

    11.2 Diagram TR100-150 Ignition J9- 1 ON / OFF J9- 3 thermostat J9- 2 (optional) J9- 4 J2- 1..6 J6- 1 MAINS supply J6- 8 J1- 1 Neutral J6- 2 J1- 5 Line (230Vac) J6- 9 J1- 2 J6- 3 K1.1 J1- 6 J6- 10...
  • Page 25: Exploded Views And Spare Parts

    12 Exploded views and spare parts 12.1 Spare parts No. Description TR10 TR15 TR20 TR24 TR28 TR40 TR50 Burner IB3200 IB3200 IB3200 IB3200 IB3200 IB3200 IB3200 Ignition electrode GA3400 GA3400 GA3400 GA3400 GA3400 GA3400 GA3400 Ignitioncable IY3949 IY3949 IY3949 IY3949...
  • Page 26: Exploded View Tr10 - Tr20

    12.2 Exploded view TR10 - TR20 12.3 Exploded view TR24 – TR50 Page 26/27 Instructions condensing Air heaters type XR version XR-GB-4001-a...
  • Page 27: Exploded View Tr60 - Tr100

    12.4 Exploded view TR60 - TR100 12.5 Exploded view TR125 & TR150 Page 27/27 Instructions condensing Air heaters type XR version XR-GB-4001-a...
