Transmittance Compartment

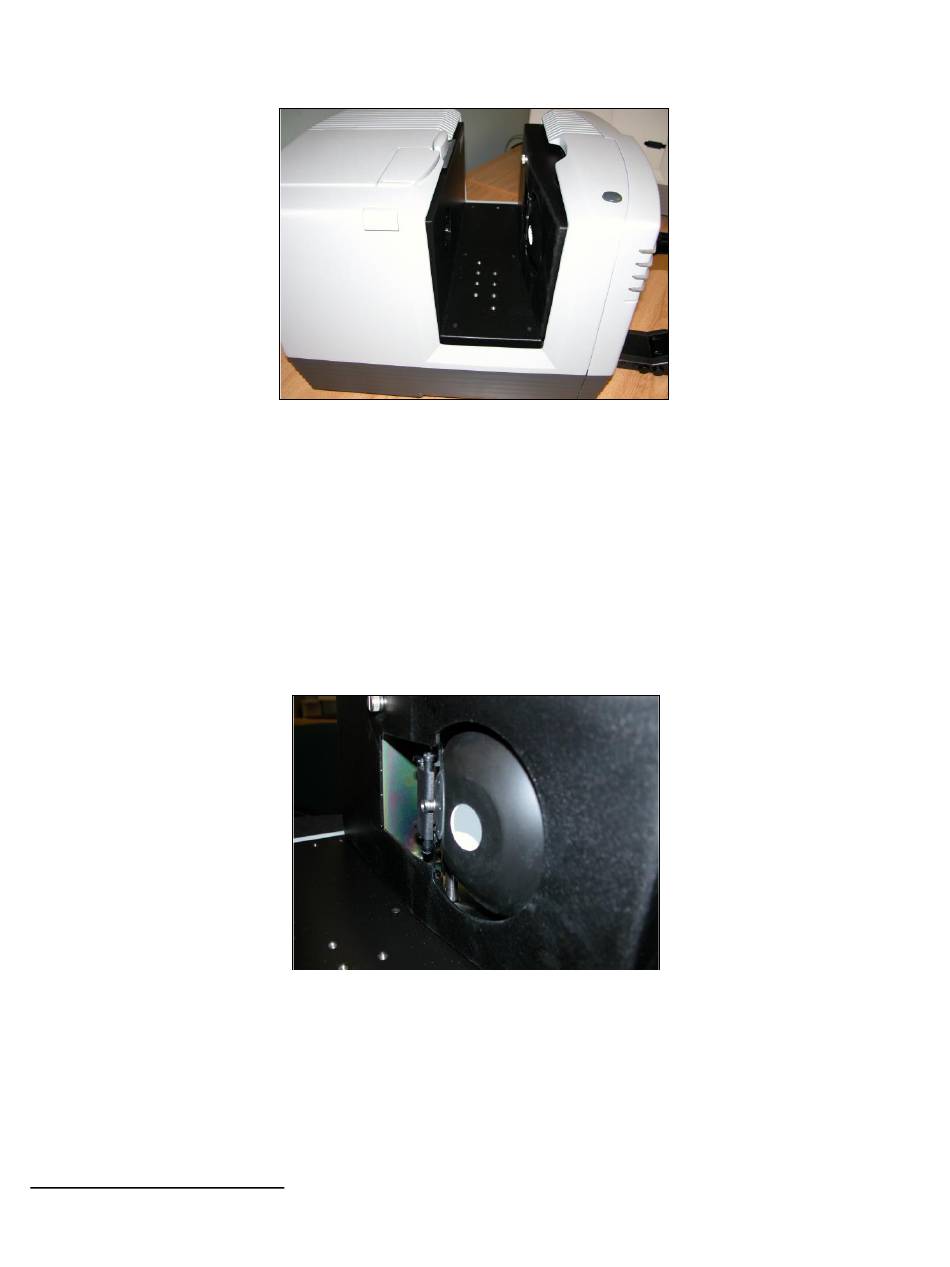

Figure 4. Transmittance Compartment
The transmittance compartment located in the middle of the sensor is used for measuring the
transmitted color of transparent solids and liquids. The transmittance compartment door should be
1
closed while standardizing and taking measurements .

Specular Included/Excluded Port

The UltraScan PRO sphere contains a specular exclusion port door which is closed during specular
included and transmittance measurements and opened during specular excluded measurements. The
position of the door is controlled through the software. See the ULTRASCAN PRO STANDARDIZATION
section for more information on the various measurement modes.
Figure 5. Specular Exclusion Port Closed
1 Closing the transmission compartment door while making both reflectance and transmittance measurements is the best practice for this
instrument. For more information, see the note in the UltraScan PRO Standardization section.
