Section F
30 - 1

Removing and Replacing

When Removing
Before removing propshafts always mark both companion
flanges and also mark the sliding joints prior to removal.
When Replacing
Upon assembly, after lubricating sliding joints with JCB MPL
Grease, align the shafts against identification marks
previously made or, in the case of a shaft being renewed,
use the manufacturer's alignment markings.
Retaining straps C stretch with use, therefore these straps
must always be replaced with new ones.
Apply JCB Threadlocker and Sealer to threads of all flange
bolts.
Note: Propshafts should be installed with their main shaft
sections fitted to the axle end, and their sliding sections
fitted to the transmission 4 wheel drive unit.

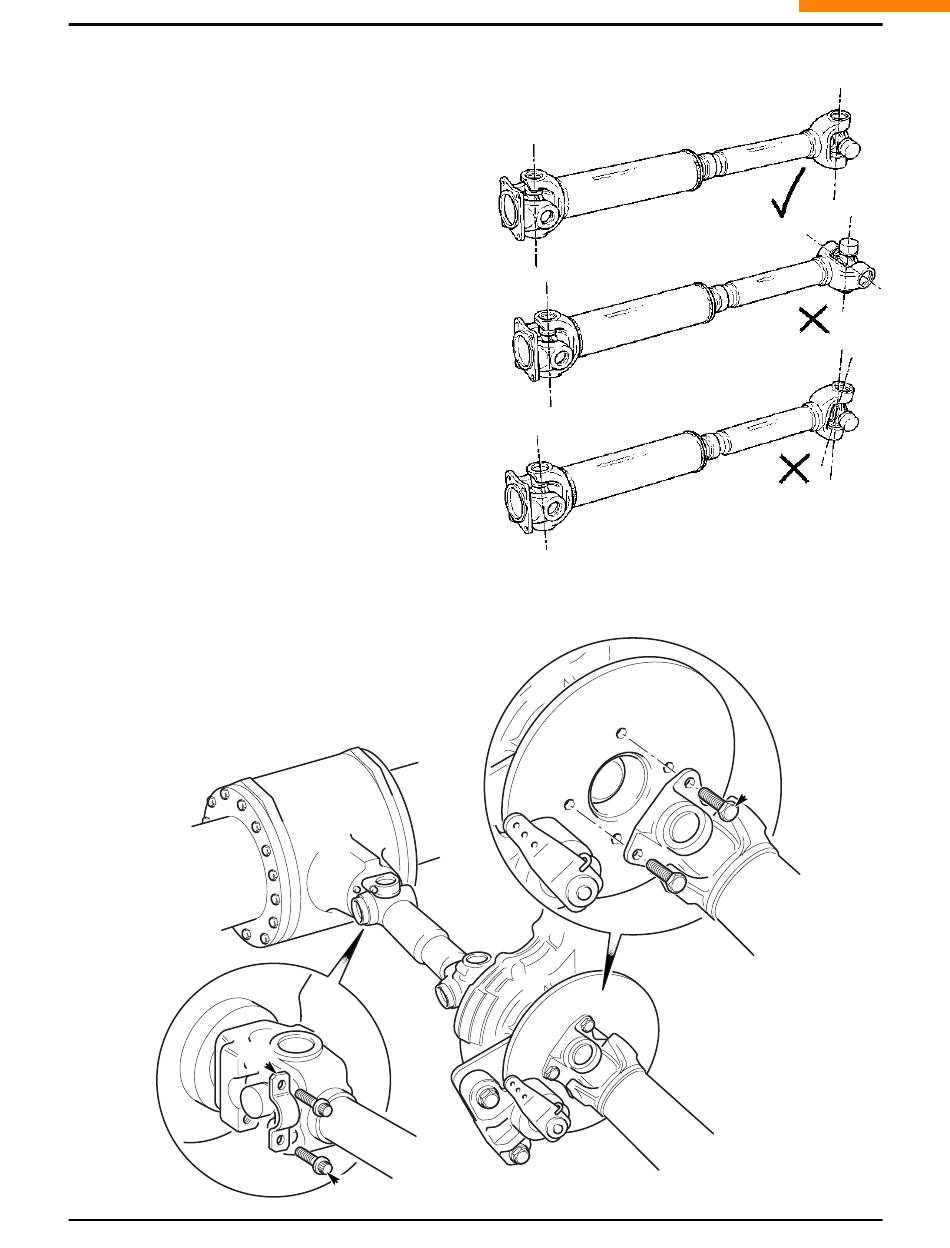

The propshaft must have both ends exactly on the same
plane as shown at X. The yokes must not be at right angles
as at Y or at an intermediate angle as at Z.
Torque Settings
Item Nm kgf m
1 21 2.1
2 40 - 48 4.08 - 4.90
C C
9803/7130
Transmission
Propshafts
X X
Y Y
Z Z
lbf ft
15
29.5 - 35.4
2 2
Section F
www.maskinisten.net
30 - 1
S189610
1 1
A388310
Issue 1
