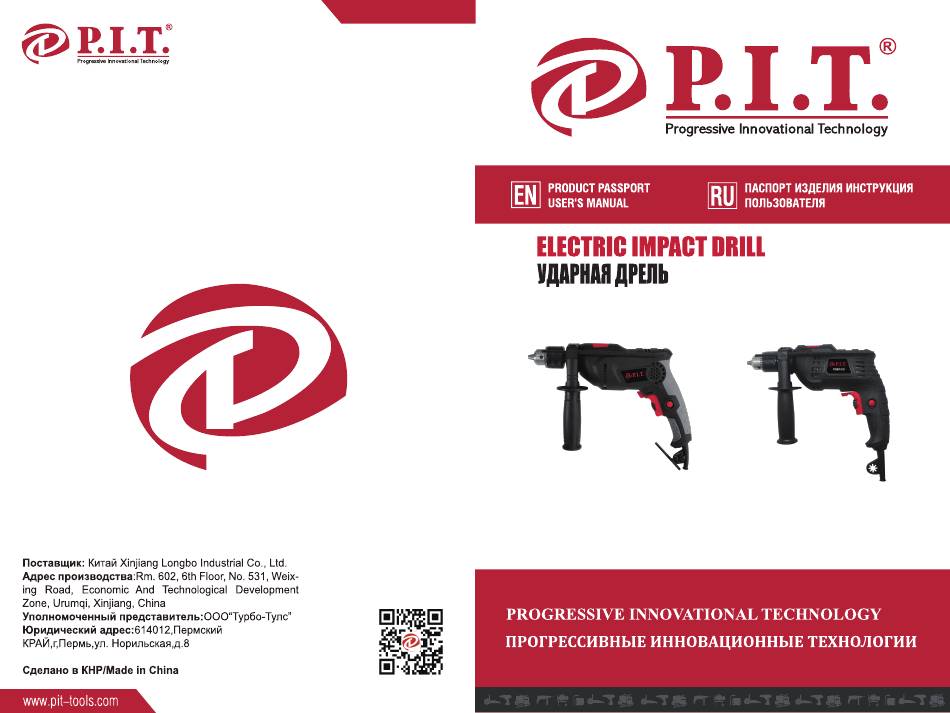

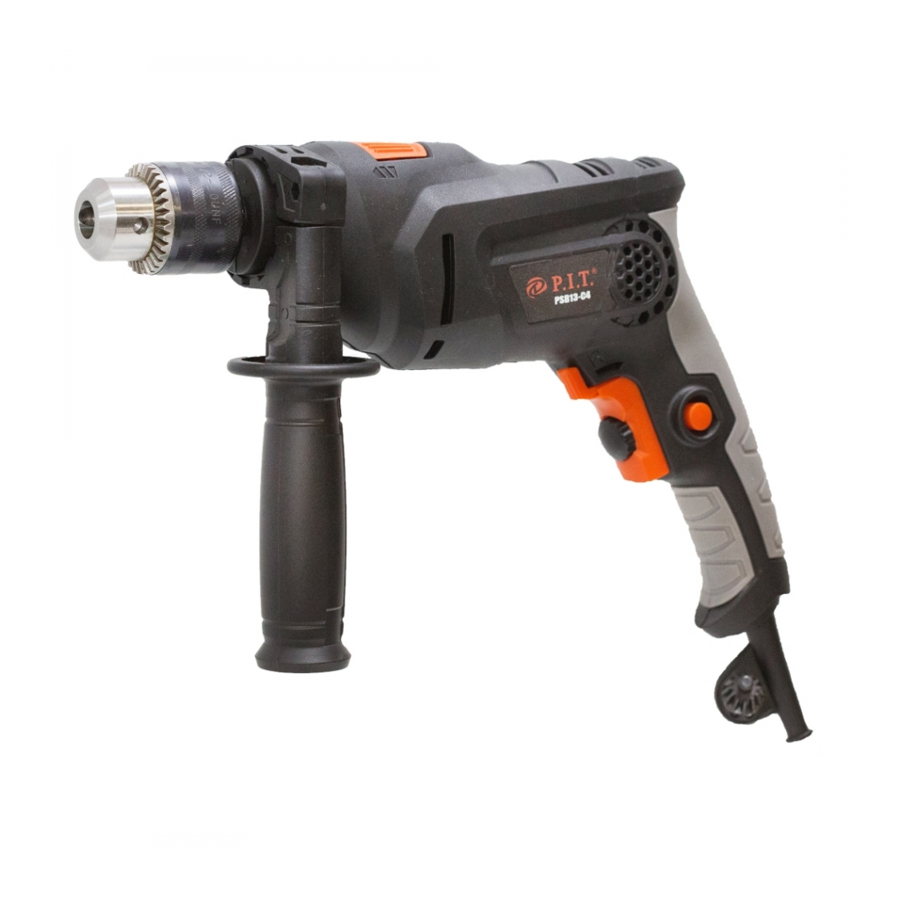

  • Page 1 PSB13-C4 PSB13-D...
  • Page 2 impact drill GENERAL SAFETY PRECAUTIONS 1. Always keep the workplace clean. Contaminated workplace and workbenches increase the risk of accidents. 2. Follow the operation manual carefully. Do not use the tool when it rains. Also do not use the tool in damp locations.

  • Page 3: Intended Use

    When the functional key is released, the upper and lower teeth do not clutch, thereby not producing impacts. In this case, the tool can be used as an ordinary drill. SPECIFICATIONS PSB13-C4 PSB13-D Rated voltage 220 V 220 V...
  • Page 4 4. The design of double bearing on the output shaft increases accuracy and speed of drilling. Note: ■ – available □ – not available MODEL □ ■ ■ ■ ■ ■ PSB13-C4 □ ■ ■ ■ ■ ■ PSB13-D PHYSICAL FORM AND ASSEMBLY...
  • Page 5 impact drill...
  • Page 6 impact drill...

  • Page 7: Rules Of Operation

    impact drill RULES OF OPERATION Switching the power tool on and off To prevent the drill bit from slipping when drilling starts, make a groove with a punch and a hammer at the ATTENTION! Make sure that the voltage of the mains drilling point.

  • Page 8: Maintenance

    impact drill Adjusting the drilling depth On the additional handle there is a tool for setting of the depth delimiter. Insert the drill bit. Loosen the stop screw of the depth delimiter fixing. Extend the depth delimiter forwards so that its end is on one level with the drill bit. Now move the depth delimiter back so that the distance between its end and the end of the drill bit matches the required drilling depth.
  • Page 9 impact drill TERMS OF WARRANTY SERVICE 1. This Warranty Certificate is the only document that confirms your right to free warranty service. Without presenting this certificate, no claims are accepted. In case of loss or damage, the warranty certificate is not restored.
  • Page 10 impact drill...
  • Page 22 impact drill P.I.T.

This manual is also suitable for:

Psb13-d
