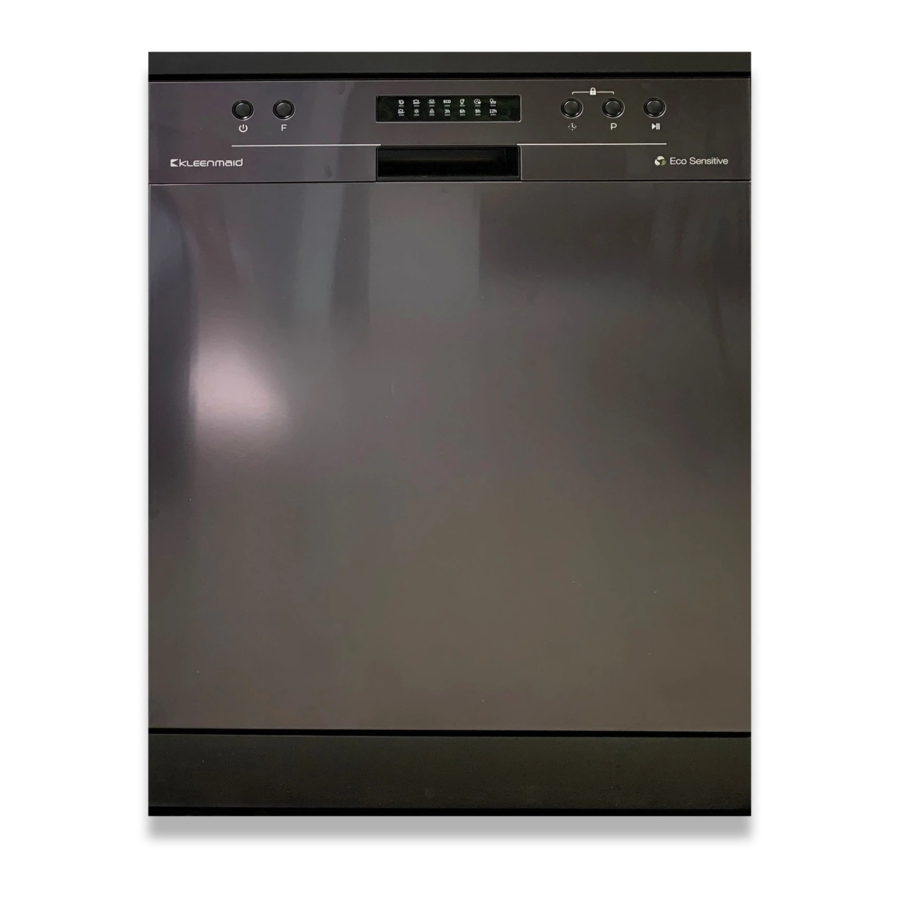

- Page 1 Instructions for use and warranty details FREESTANDING BLACK STAINLESS STEEL DISHWASHER Model No.: DW6020XB...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 3: Table Of Contents
9) Disposal.............25 Kleenmaid Warranty ....... The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. The current user manual is available from the Kleenmaid website. See back cover for details. - Page 4 1.Safety Information - Please read before installation/use When using your dishwasher, follow the precautions listed below: EARTHING INSTRUCTIONS This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
- Page 5 For detailed operating instructions see pages 6-16 of this manual. Press the On/Off button to switch on the appliance. Switch on the appliance Compartment A: For each wash cycle. Compartment B: Fill the detergent dispenser For programs with pre-wash only.( Follow the user instructions) Mechanical indicator "C"...
-
Page 6: Control Panel
2. Operating Instructions Control Panel display operating... - Page 7 very ly soiled crockery...
-
Page 8: Dishwasher Features
Back View Front view Upper Basket Dispenser Filter assembly Cup Shelf Inner pipe Inlet pipe connector Spray arms Lower Basket Drain pipe Detergent & Rinse Aid Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 9: B、Function Of Detergent
How to fill the Rinse Aid Dispenser To open the dispenser, turn the cap to the "open" (left) arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill. Replace the cap by inserting it aligned with "open" arrow and turning it to the right (see arrow) until closed. Be careful not to overfill the dispenser, because this could cause over sudsing. - Page 10 Detergent Tablets Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals. Detergent Dispenser The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table.
-
Page 11: Recommendations
Recommendations Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. -
Page 12: Method For Loading Normal Dishware
Method for Loading Normal Dishware The upper basket is designed to hold more delicate It's recommended that large items and the most difficult to clean and lighter dishware such as glasses, coffee and tea cups and items be placed into the lower basket: eg. pots, pans, lids, saucers, as well as plates, small bowls and shallow pans (as serving dishes and bowls, as shown in the figure below. -
Page 13: Loading Baskets According To As/Nzs 2007:1
Loading the baskets according to AS/NZS2007:1... -
Page 15: Wash Cycle Table
Means: need to put rinse aid into the Rinse-Aid Dispenser. For the heaviest soiled ℃ Pre-wash(50 ) loads, such as pots, pans, ℃ Wash (60 Intensive casserole dishes and dishes Rinse 5/25g that have been sitting with Rinse 18.5 (Or All ℃... -
Page 16: Change The Program Mid-Cycle
Changing the Program Mid-cycle A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. -
Page 17: Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. Any residues may block the filter, consequently they must be removed. The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter). Main filter Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain. -
Page 18: Caring For The Dishwasher
Notes: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 19: Installation Instructions
NOTE: Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details). Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. -
Page 20: Power Connection
Fitting underneath an existing work top In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). -
Page 21: Water Connection
Improper connection of the equipment earthing conductor can result in the risk of an for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed. -
Page 22: Checklist Before Starting Dishwasher
All packing and print materials should be taken out of the dishwasher. After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. A current online version of the User Manual is available on the Kleenmaid website (see back cover for details). -
Page 23: Before Calling For Service
Review the information in this chart as it may save a service call. Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker tripped. appliances sharing the same circuit with the dishwasher Power supply is not Make sure the dishwasher is turned on and the door is closed securely. -
Page 24: Error Codes
See " Loading the Dishwasher Baskets " on page 11. The dishes were not loaded correctly. Select a more intensive program. See " Wash Cycle The program was Table " on page 15. not powerful enough. Not enough detergent Use more detergent, or change your detergent. was dispensed. -
Page 25: Technical Information
Height : 845mm Width : 598 mm Depth : 600mm (with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 12 place settings 9. Disposal For disposing of packaging and the appliance please go to a recycling center. Cut off the power supply cable and make the door closing device unusable before disposal. -
Page 26: Kleenmaid Warranty
The benefits given to you under this Kleenmaid Warranty are in addition to other rights and remedies to which you may be entitled under the Australian Consumer Law in relation to the Product to which this Kleenmaid Warranty relates. Subject to the conditions below, the Product is warranted by Kleenmaid and/or its agents to be free from defects in materials and workmanship for the Warranty Period for normal Domestic Use. - Page 27 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 28 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Refrigerators & Freezers Beverage Serving Cabinets Water Dispensers Vacuum Cleaners Compass Capital Services Pty Limited...
