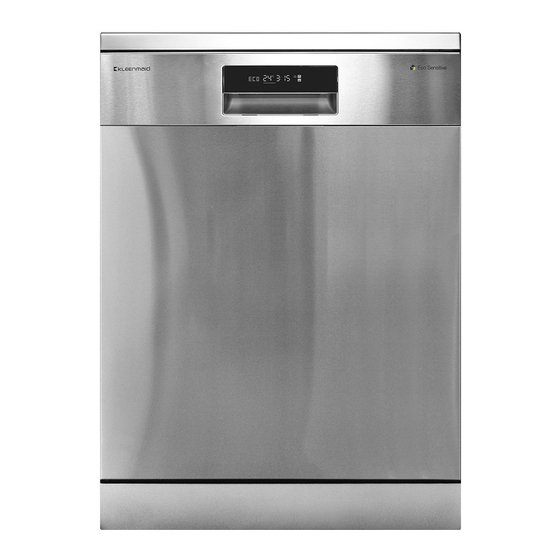

- Page 1 Instructions for use and warranty details Dishwasher Model No.: DW6030...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 3: Table Of Contents
CONTENTS This manual is in two parts:- Part 1 General Care and Information Part 2 Specific Information DW6030 PART 1 General Care and Information QUICK USER GUIDE SAFETY INFORMATION PRODUCT OVERVIEW USING YOUR DISHWASHER Basket Use Tips MAINTENANCE AND CLEANING... - Page 4 PART 2 Specific Information DW6030 USING YOUR DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash...
-
Page 5: Quick User Guide
01 QUICK USER GUIDE Please see the corresponding sections of the instruction manual for operating details. Install the dishwasher Please check PART 1 section 05 “INSTALLATION INSTRUCTIONS ” Inside Outside Loading the baskets Removing the larger residue on the dishes and cutlery Selecting a program and Filling the dispenser running the dishwasher... -
Page 6: Safety Information
SAFETY INFORMATION WARNING When using your dishwasher, observe the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments;... - Page 7 Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and performing maintenance on the appliance.
- Page 8 Do not modify the plug provided with the appliance. If it does not fit the outlet have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
- Page 9 Do not wash plastic items unless they are marked “ dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
- Page 10 Disposal To dispose of packaging and the appliance please go to a recycling centre. For safety, cut off the appliance power supply cable and disable the door closing device. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
-
Page 11: Product Overview
(Part 1 and Part 2) before using it for the first time. Top spray arm Inner pipe Lower spray arm Filter assembly Dispenser Upper spray arm Cup rack Cutlery rack Upper basket Lower basket NOTE: Pictures are only for reference. Please check Part 2 for information specific to DW6030. -
Page 12: Using Your Dishwasher
03 USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check Part 2 Section 1) 3. Fill in detergent (Please check Part 2 Section 1) Basket Use Tips Adjusting the upper basket The height of the upper basket can be easily adjusted to accommodate taller dishes in either the upper or lower basket. - Page 13 Folding back the cup shelves To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. Folding back the rack shelves The spikes are used for holding plates and a platter.
-
Page 14: Maintenance And Cleaning
04 MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door.These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. - Page 15 Coarse filter Coarse filter Main filter Main filter Fine filter Open Open Hold the coarse filter and rotate it The fine filter can be pulled off the anticlockwise to unlock the filter. bottom of the filter assembly. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
- Page 16 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the centre still and out the spray arm upward.
-
Page 17: Caring For The Dishwasher
Caring For The Dishwasher Frost precaution Please take frost protection precautions for the dishwasher in winter, especially if the ambient temperature is likely to be below 0'C. After every washing cycle, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. -
Page 18: Installation Instruction
05 INSTALLATION INSTRUCTION WARNING Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection WARNING For personal safety: Do not use an extension cord or an adapter... -
Page 19: Water Supply And Drain
Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear. -
Page 20: Connection Of Drain Hoses
Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The height of the drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid back flow. -
Page 21: Position The Appliance
Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. - Page 22 Fitting Under Existing Work Top In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). Attention After removing the work top, the screws MUST BE screwed in again under the rear edge of the top (b).
-
Page 23: Troubleshooting Tips
06 TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible causes Solution Shut the door completely and make sure Dishwasher won't start it is latched Power supply or power Check and connect the power supply Dishwasher doesn't line is not connected... - Page 24 Problem Possible causes Solution Detergent dispenser is Fill rinse aid dispenser or increase the empty amount of rinse aid. Dishes not drying Load the dishes again as the manual Improper loading of enough dishes instructs The cycle you chose did Choose the proper cycle with drying not included the drying Water hardness is too...
- Page 25 Problem Possible causes Solution Excessive suds caused Make sure to use only proper using improper dishwasher detergent Dishwasher leaks detergent Dishwasher is not level Level the dishwasher Use a mild abrasive cleaner to eliminate Black or gray marks Aluminum utensils the marks.
-
Page 26: Loading The Baskets According To As/Nzs 2007.1
07 LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: 1.Upper basket: Item Number Cups Saucers Glasses Item Number Dinner plates Soup plates Dessert dishes... - Page 27 3.Cutlery basket: Item Number Forks Soup spoons Dessert spoons 4 4 4 Teaspoons Knives Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 15 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5g/28.75g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)
- Page 28 CONTENTS Part 2 DW6030 USING YOUR DW6030 DISHWASHER Control Panel Preparing And Loading Dishes Function Of The Rinse Aid And Detergent Filling The Rinse Aid Reservoir Filling The Detergent Dispenser PROGRAMMING THE DISHWASHER Wash Cycle Table Starting A Cycle Wash...
-
Page 29: Using Your Dishwasher
01 USING YOUR DW6030 DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher. Power Select the appropriate washing program and the selected Program program indicator will light up. Dual zone wash function: press the button to select either upper basket or lower basket loaded, and the response ) will light up. - Page 30 Display Auto Auto sensing wash, lightly, or heavily soiled crockery, with or with out dried-on food. Intensive For heaviest soiled crockery,such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while. Heavy For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.
- Page 31 Display Display Extra wash To wash very dirty, hard to clean dishes. (It can only be used with Auto, Intensive, Heavy, ECO, Glass, 90Min) Extra drying Function To dry dishes more completely.( It can only be used with indication Auto, Intensive, Heavy, ECO, Glass, 90Min) Express Reduce the program time.
-
Page 32: Preparing And Loading Dishes
Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes dishwashers Are not suitable: Cutlery with wooden, horn, china or mother-of-pearl handles... - Page 33 Place objects in the dishwasher in the following way: Items such as cups, glasses, pots/pans, etc. are faced downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and cannot tip over. All utensils are placed so that the spray arms can rotate freely during washing.
- Page 34 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty. Position the dishes and cookware so that they will not be moved by the spray of water.
-
Page 35: Function Of The Rinse Aid And Detergent
Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. -
Page 36: Filling The Rinse Aid Reservoir
Filling The Rinse Aid Reservoir Rinse-Aid indicator Remove the rinse aid reservoir cap Pour the rinse aid into the dispenser, by rotating it counterclockwise. being careful not to overfill. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash. -
Page 37: Filling The Detergent Dispenser
Filling The Detergent Dispenser Open the detergent dispenser flap by pushing the detergent dispenser release catch. Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirty items, pour a small amount of detergent onto the door (B). -
Page 38: Programming The Dishwasher
02 PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on dishes and how much detergent is needed. It also show information about the programs. )Means: need to fill the Rinse-Aid Dispenser. Description Energy Water... -
Page 39: Starting A Cycle Wash
Description Energy Water Running Detergent Rinse Program Of Cycle (Kwh) Time(min) Pre/Main Wash(45℃) Rinse(55℃) 12.5 Rapid Rinse(55℃) Prewash 0.02 Soak NOTE: AS/NZS 2007.1: This program is the test cycle. The parameters for the comparability test are in accordance with *AS/NZS 2007.1 Starting A Wash Cycle 1. -
Page 40: Forget To Add A Dish
1. Open the door a little to stop the dishwasher, then after the spray arm stops working you can open the door completely. 2. Press Program button for more than three seconds so the machine will be in stand by state. 3. -
Page 41: Error Codes
03 ERROR CODES If there is a malfunction, the dishwasher will display error codes. To identify these: Meanings Codes Possible Causes Tap is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Not reaching required Malfunction of heating element. -
Page 42: Technical Information
04 TECHNICAL INFORMATION Height (H) 845mm Width (W) 598mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°) - Page 43 Product data Manufacturer Kleenmaid Type / Description DW6030 Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.641 kWh Water consumption of the standard cleaning cycle 12 litres Program duration of the standard cleaning cycle...
- Page 44 This page intentionally left blank...
- Page 45 This page intentionally left blank...
- Page 46 Australian Consumer Law. c. In the event that a request for repair is made against this Kleenmaid Warranty where the serial number for the Product cannot be verified or you cannot produce for verification a proof of purchase for the Product (including but not limited to the original invoice), the repairer will not carry out any repairs on the Product and you will be charged a service call-out fee.
- Page 47 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 48 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria NSW 2015 E: support@kleenmaid.com.au...
