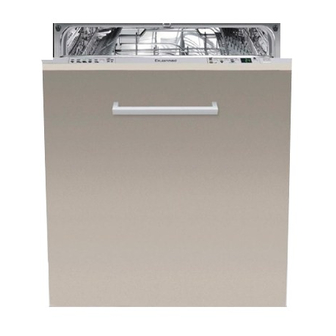

Kleenmaid DW6010 Instructions For Use And Warranty Details
  1. Manuals
  2. Brands
  3. Kleenmaid Manuals
  4. Dishwasher
  5. DW6010
  6. Instructions for use and warranty details

Kleenmaid DW6010 Instructions For Use And Warranty Details

Kitchen collection free standing dishwasher
Hide thumbs Also See for DW6010:
