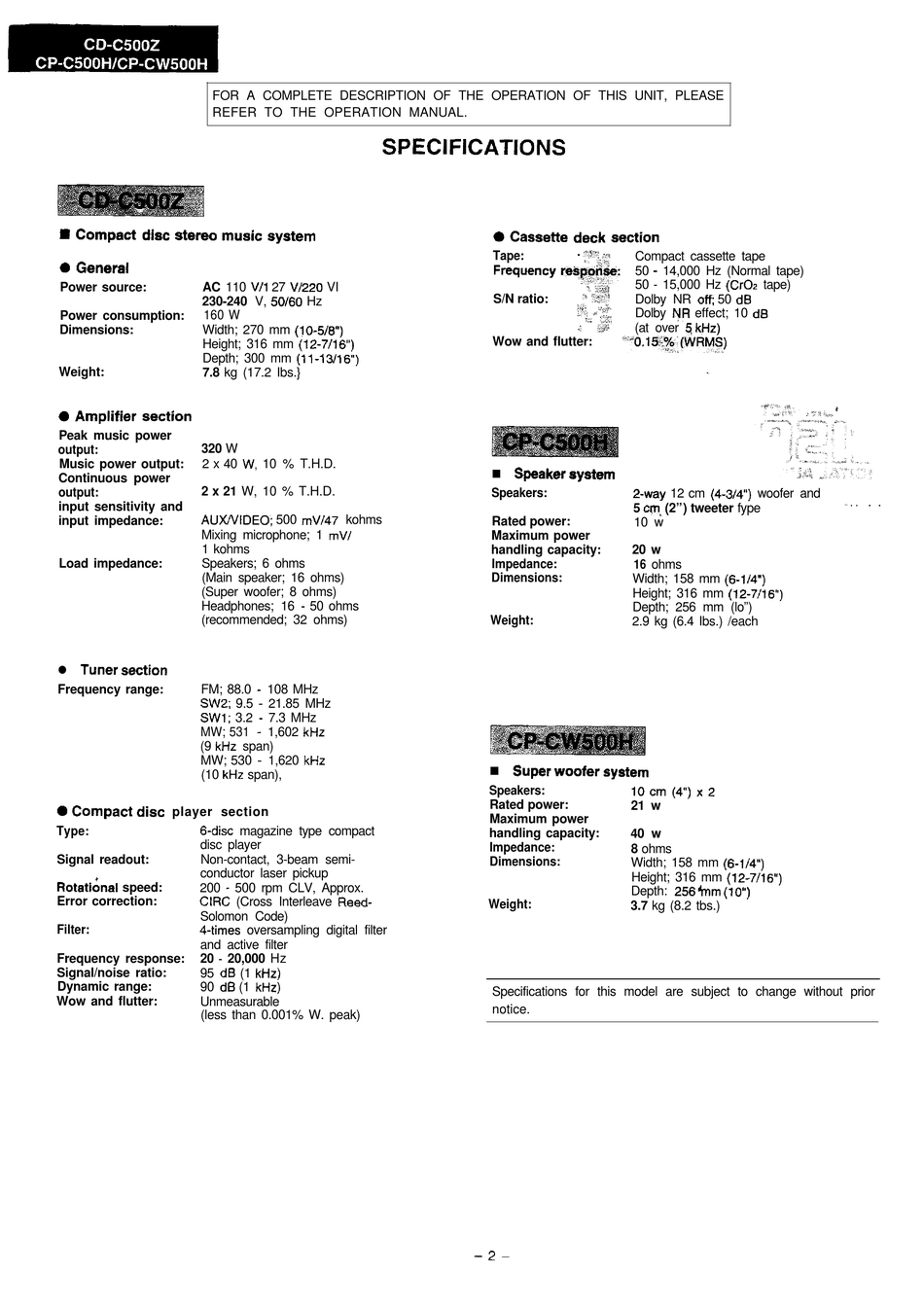

Specifications - Sharp CD-C500Z Service Manual

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE
REFER TO THE OPERATION MANUAL.
Power source: AC 110 V/l 27 Vi220 VI
230-240 V, 50160 Hz
160 W
Power consumption:
Dimensions:
Width; 270 mm (lo-5/8" )
Height; 316 mm (12-7/16" )
Depth; 300 mm (11-13116" )
Weight: 7.8 kg (17.2 Ibs.}
Peak music power
320 W
output:
Music power output: 2 x 40 W, 10 % T.H.D.
Continuous power
2 x 21 W, 10 % T.H.D.
output:
input sensitivity and
input impedance:
Mixing microphone; 1 mV/
1 kohms
Load impedance: Speakers; 6 ohms
(Main speaker; 16 ohms)
(Super woofer; 8 ohms)
Headphones; 16 - 50 ohms
(recommended; 32 ohms)
l Tuner section
Frequency range: FM; 88.0 - 108 MHz
MW; 531 - 1,602 kHz
(9 kHz span)
MW; 530 - 1,620 kHz
(10 kHz span),
player section
Type:
disc player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
200 - 500 rpm CLV, Approx.
Error correction:
Solomon Code)
Filter:
and active filter
Frequency response: 20 - 20,000 Hz
Signal/noise ratio: 95 dB (1 kHz)
Dynamic range: 90 cl6 (1 kHz)
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
. "' *" . . ) , A
Tape:
Compact cassette tape
50 - 15,000 Hz (00~ tape)
S/N ratio: Dolby NR off; 50 dB
Dolby NR effect; 10 dB
(at over 5 kHz)
Wow and flutter:
n Speaker system
Speakers:
5 c-m* (2") tweeter fype
Rated power:
10 w
Maximum power
handling capacity: 20 w
Impedance:
16 ohms
Dimensions:
Width; 158 mm (6-l/4" )
Height; 316 mm (12-7116" )
Depth; 256 mm (lo" )
Weight:
2.9 kg (6.4 Ibs.) /each
n Super woofer System
Speakers:
Rated power:
21 w
Maximum power
handling capacity:
40 w
Impedance:
8 ohms
Dimensions:
Width; 158 mm (6-l/4" )
Height; 316 mm (12-7/16" )
Depth: 256?-nm (10" )
Weight:
3.7 kg (8.2 tbs.)
Specifications for this model are subject to change without prior
notice.
